PB490 P-type Bifacial Monocrystalline Silicon Panels for Utility-Scale Installations
PB490 P-type Bifacial Monocrystalline Silicon Panels for Utility-Scale Installations
Specifications
Brand Name :
LS
Model Number :
PB490
Certification :
IEC 61215/IEC 61730/ISO 9001/ISO 14001/ISO 45001
Place of Origin :
China
MOQ :
806 pcs
Price :
consult prices online
Payment Terms :
T/T
Packaging Details :
consult online
Power Range :
490W ~ 505W
Maximum Efficiency :
21.27%
Power Output Tolerance :
0W ~ +5W
Open Circuit Voltage (Voc) :
45.62V
Short Circuit Current (Isc) :
13.99A
Dimensions :
2094mm x 1134mm x 35mm
Weight :
29.4kg (35mm frame)
Temperature Coefficient (Pmax) :
-0.34%
Description

PB490 P-type Bifacial Monocrystalline Silicon Panels for Utility-Scale Installations

PB490 P-type Bifacial Monocrystalline Silicon Panels for Utility-Scale Installations

Product Description:


The 182 P-type Bifacial Module offers an advanced solution for solar power generation, designed for those seeking high efficiency and durability. This module features a power range of 490W to 505W, with a maximum efficiency of 21.27%, making it ideal for various large-scale installations. It is equipped with 182mm Mono-crystalline Half Cells, arranged in a 132 pcs (6x22) configuration, ensuring excellent power output and performance. The bifacial nature of the module allows for energy capture on both sides, significantly increasing the overall energy yield. Built with a sturdy anodized aluminum alloy frame and IP68 rated junction box, this module is engineered to withstand harsh environments while maintaining optimal performance. Its slim and robust structure, combined with a 1500V DC maximum system voltage, ensures that the module can handle high-stress conditions without compromising safety or efficiency. The bifacial module also benefits from advanced anti-reflective coating and highly transparent tempered glass, contributing to its high performance and long-term reliability.

Electrical Performance Parameters |STC
Model Type 490D(HBD)
66(182		 495D(HBD)
66(182)		 500D(HBD)
66(182		 505D(HBD)
66(182
Nominal Max.Power Pmax(W 490 495 500 505
Max.PowerVoltage Vmp(V) 38.02 38.20 38.38 38.56
Max.PowerCurrent Imp(A) 12.89 12.96 13.03 13.10
Open Circuit Voltage Voc(V) 45.24 45.36 45.48 45.62
Short Circuit Current sc(A) 13.78 13.85 13.92 13.99
Module Efficiency (%) 20.64 20.85 21.06 21.27
Power Output Tolerance (W) 0~+5W
·STC:Irradiance 1000W/m²,Cell Temperature 25℃,AirMass AM1.5.
·Power measurement tolerance ±3%.
Electrical Performance Parameters |NMOT
Model Type 490D(HBD)
66(182)		 495D(HBD)
66(182		 500D(HBD)
66(182)		 505D(HBD)
66(182)
Nominal Max.Power Pmax(W 362 367 372 377
Max.Power Voltage Vmp(V) 34.81 35.16 35.50 35.84
Max.PowerCurrent Imp(A) 10.40 10.44 10.48 10.52
Open Circuit Voltage Voc(V) 42.94 43.06 43.18 43.32
Short Circuit Current sc(A) 11.13 11.19 11.24 11.30
·NMOT:Irradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s.
*Power measurement tolerance ±3%.

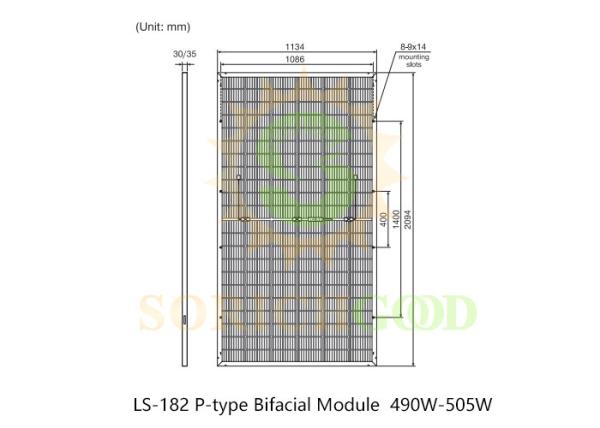

Structure Performance
Solar Cell Type 182mm Mono-crystalline (Half Cell)
Solar Cell Arrangement 132pcs(6×22)
Module Dimension 2094×1134×35mm/30mm
Weight 29.4kg(35mm)/28.4kg(30mm)
Front Glass 2.0mm,highly transparenttempered glass
with anti-reflective coating
Frame Anodized Aluminum Alloy
Junction Box IP68 rated
Cable 4mm²,portrait 200mm(1),landscape
Length can be customized		 1400mm(+)
1400mm(-)
DiodeQuantity 3 pcs
Front side/Rear side 5400pa/2400pa
Connector MC4 Compatible
Per Pallet 31pcs(35mm)/36pcs(30mm)
Per Container(40'HQ) 682pcs(35mm)/792pcs(30mm)

Temperature Characteristics
Nominal Module Operating Temperature 44±2℃
Temperature Coefficlent (Isc) +0.048%
Temperature Coefficient (Voc) -0.26%
Temperature Coefficient(Pmax) -0.34%

Maximum Parameters
Working Temperature -40~+85℃
Maximum System Voltage 1500V DC
Nominal Maximum Fuse Current 25A

Application:


This module is ideal for ground-mounted solar power plants, commercial rooftop systems, and utility-scale installations where maximum energy yield and reliability are critical. Its bifacial design is particularly beneficial in environments where additional light reflection can be captured, such as snow-covered areas or installations near bodies of water.

Shipping Methods:


Supports global air and sea shipping.
