LiFePO4 Lithium Battery Storage With Nominal Capacity Range From 20.48kWh To 61.44kWh
LiFePO4 Lithium Battery Storage With Nominal Capacity Range From 20.48kWh To 61.44kWh
Specifications
Brand Name :
GK
Model Number :
CIE
Certification :
IEC62619 CE
Place of Origin :
China
MOQ :
5 units
Price :
consult prices online
Payment Terms :
T/T
Packaging Details :
consult online
Nominal Capacity :
20.48kWh - 61.44kWh
Nominal Voltage :
204.8V - 512V
Working Voltage Range :
176V - 691V
Cycle Life :
6500
Peak Charge/Discharge Current :
150A
Waterproof Rating :
IP20
Description

LiFePO4 Lithium Battery Storage with Nominal Capacity Range from 20.48kWh to 61.44kWh

Product Description:

The Commercial & Industrial ESS is a highly modular energy storage system designed for high-capacity applications. With a nominal capacity range from 20.48kWh to 61.44kWh, this system is ideal for large-scale energy needs. Built with LiFePO4 batteries, it offers robust energy storage with over 6500 life cycles. Featuring a nominal working current of 100A and a CAN/RS485 communication interface, the system operates efficiently across a wide temperature range of 0°C to 45°C (charge) and -10°C to 50°C (discharge). This floor-standing system is suitable for both indoor and outdoor installations with its IP20 waterproof rating, ensuring reliability in various environments. Additionally, the integrated BMS provides real-time monitoring for enhanced safety and operational longevity.

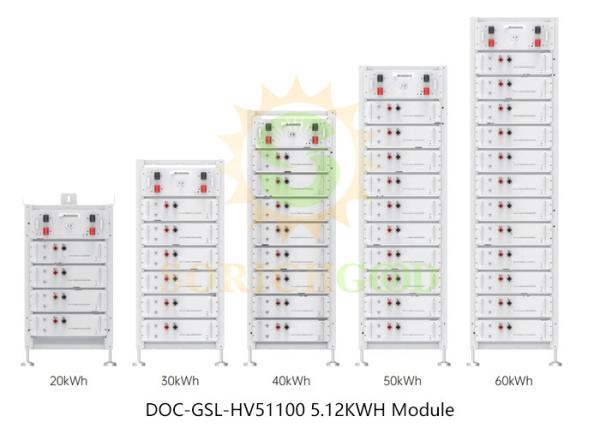

Nominal Capacity 20.48kWh 30.72kWh 40.96kWh 51.2kWh 61.44kWh
Cell Matching 64SIP 96S1P 128SIP 160SIP 192SIP
Nominal Voltage 204.8V 307.2V 409.6V 512V 512V
Working Voltage Range 176-233.6V 264-350V 352-467.2V 440-584V 537.6-691.2V
Weight 201.4kgs/444 Ibs 309.6kgs/683 Ibs 492.8kgs/1086 Ibs 499kgs/1100 Ibs 582.2kgs/1284 Ibs
Dimension(W*D*H) 553*503*1011mm/
21.8*19.8*39.8 in		 553*503*1620mm/
21.8*19.8*63.8 in		 553*503*1620mm/
21.8*19.8*63.8 in		 553*503*2230mm/
21.8*19.8*87.6 in		 553*503*2230mm/
21.8*19.8*87.8 in
Battery Type LiFePO4 Battery
Nominal Working Current 100A
Communication Port CAN/RS485
Working Temperature Range Charge:0-45℃/Discharge:-10-50℃
Waterproof IP20
Installation Method Floor-standing
Cycle Life 6500
Peak Charge/Discharge
Current (@25℃,5S)		 150A
Discharge Rate of Module <3.5%/month/@25℃

Application:

This Commercial & Industrial ESS is ideal for industrial parks, large commercial operations, microgrids, and energy storage power stations. It provides peak shaving, load balancing, and backup power solutions for high-demand energy consumers.

Shipping Methods

Supports global air and sea shipping.
