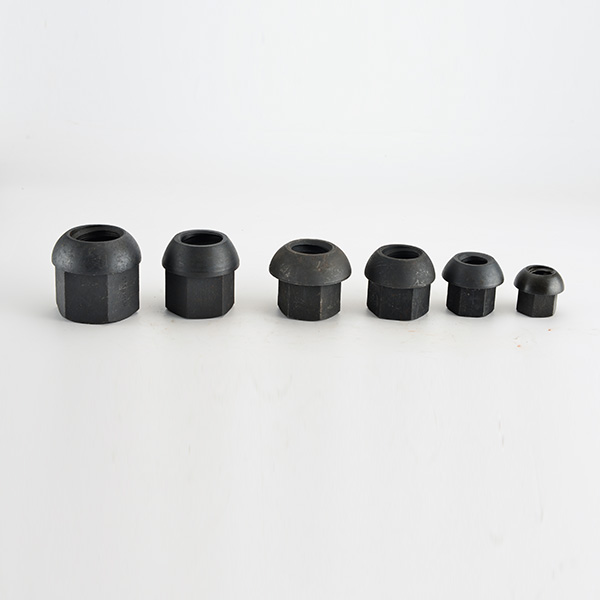

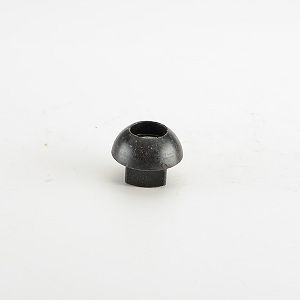

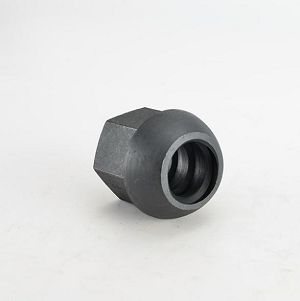

M24 Circular Dome Headed Nut Fasteners 1045 Carbon Steel Nut
M24 Circular Dome Headed Nut Fasteners 1045 Carbon Steel Nut
M24 Circular Dome Headed Nut Fasteners 1045 Carbon Steel Nut
M24 Circular Dome Headed Nut Fasteners 1045 Carbon Steel Nut
M24 Circular Dome Headed Nut Fasteners 1045 Carbon Steel Nut
M24 Circular Dome Headed Nut Fasteners 1045 Carbon Steel Nut
M24 Circular Dome Headed Nut Fasteners 1045 Carbon Steel Nut
M24 Circular Dome Headed Nut Fasteners 1045 Carbon Steel Nut
Specifications
Name :
Dome Nut
Material :
Steel
Size :
#6 #7 #8 #9 #10
Flange :
Circular
Place of Origin :
China
Certification :
ISO 9001
MOQ :
negotiable
Price :
negotiable
Packaging Details :
standard packaging
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

M24 Dome Nut For Fasteners Circular Flange Bottom Washers

Product Introduction

● Dome nuts' performance will be better than the casting nuts.

● Normally, we do it with carbon steel 1045, black finish and T thread, or based on your drawings.

● Steel dome nuts are assembled with thread bars are widely used in the mining ground support, tunneling ground support, construction, form works, etc.

● Dome nuts will better fit the dome plate.

Product Parameter(specification)

M24 Circular Dome Headed Nut Fasteners 1045 Carbon Steel Nut

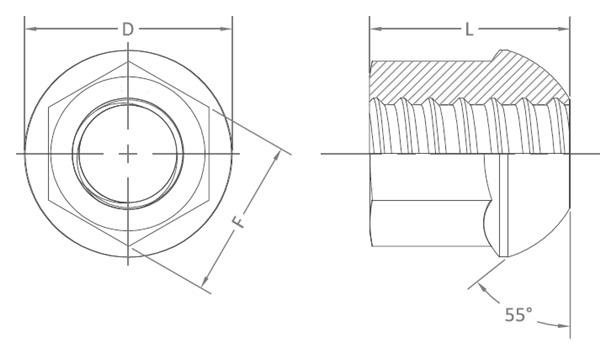

Item No. Size F D L
# inch mm inch mm inch mm inch mm
CLHN016-1 6 3/4” 19 1.38 35 2.01 51 1.57 40
CLHN016-2 7 7/8” 22 1.38 35 2.01 51 1.77 45
CLHN016-3 8 1” 25 1.61 41 2.13 54 1.77 45
CLHN016-4 9 1-1/8” 28 1.77 45 2.28 58 1.97 50
CLHN016-5 10 1-1/4” 32 1.97 50 2.44 62 2.36 60
CLHN016-6 11 1-3/8” 36 2.36 60 2.76 70 2.56 65
CLHN016-7 14 1-3/4” 43 2.95 75 3.94 100 3.15 80
CLHN016-8 18 2-1/4” 57 3.35 85 5.12 130 4.33 110
CLHN016-9 20 2-1/2” 63.5 3.54 90 5.51 140 4.72 120

Products Details

Dome nuts have a circular flange on one end that creates a large, even clamping surface between the nut and workpiece. They are used with bottom washers to reduce stress on threads caused by misaligned parts.

M24 Circular Dome Headed Nut Fasteners 1045 Carbon Steel Nut

M24 Circular Dome Headed Nut Fasteners 1045 Carbon Steel Nut M24 Circular Dome Headed Nut Fasteners 1045 Carbon Steel Nut
