1R1G1B 3mm Electronic Outdoor Led Board P3 Waterproof advertising 64x64 dots
1R1G1B 3mm Electronic Outdoor Led Board P3 Waterproof advertising 64x64 dots
Specifications
Brand Name :
Outdoor P3 Full Color LED Display
Model Number :
Outdoor P3 full color led module
Certification :
CCC FC CE FC CB ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 pcs / 1 sqm
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
4000 Square Meters per Month
Delivery Time :
7-12 working days after received your payment
Packaging Details :
Carton，Honeycomb box，Wooden box，Flight Case
Pitch :
3 mm
Module size :
192mm*192mm
Module resolution :
64x64 dots
Density :
111111 dots/sqm
Refresh rate :
≥3840 HZ
Brightness :
5500 cd/sqm
Drive type :
1/16 scan
Pixel configuration :
1R1G1B
Protection level :
IP31
Description

Electronic TV wall signboard display p3 outdoor full color waterproof box

Specification of Led Sign Board

ITEM P3 Technical parameter
Module Module Dimension (W)192mm*192mm(H)
Pixel pitch 3mm
Pixel Density 111111pixels/㎡
Pixel configuration 1R1G1B
LED specification SMD1921
Pixel resolution (W)64*64(H)
resolution 4096dots
Current 3.5-4A
Drive type 1/16 Scanning
Refresh frequency ≥3840HZ
Brightness 5500cd/㎡
Optimum Viewing Distance(m) 3~20m
Max power consumption 800W/㎡
Ave power consumption 350W/㎡
Humidity 10%~95%RH
Working Voltage 5V
Display Card DVI Graphics
IP Grade IP31

Features of Led Sign Board


1. With excellent equality and consistency of light, able to solve the problem of mosaic commendably.

2. With clear, exquisite and real display effect.

3. With big viewing angle to the horizontal line and vertical line, able to be watched at every angle, no picture change, no color excursion.

4. The cost of maintenance is low, as every LED lamp can be replaced.

5. High precision: seamless splicing though CNC machine.
6. Seamless connection:The aluminum die-casting technology,togrther with the high precision CNC procession,
makes the precision the precision reach ±0.05mm so as to achieve seamless assembly.
7. Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.

Application of Led Sign Board

The products are widely use for advertising,shows,square,concert, sporting event, festival, corporate gathering or charitable event, Grand Theater, large song and dance party, fashion show.

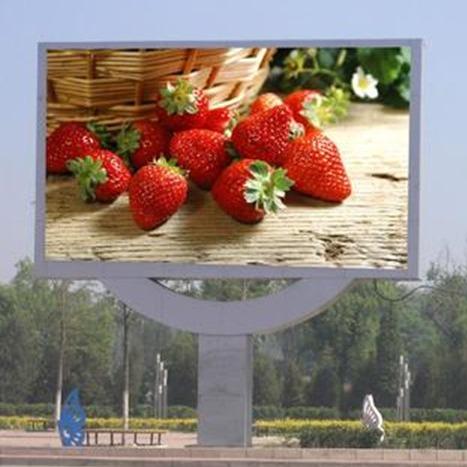

Case Presentation

1R1G1B 3mm Electronic Outdoor Led Board P3 Waterproof advertising 64x64 dots

Packaging And Shipping

1R1G1B 3mm Electronic Outdoor Led Board P3 Waterproof advertising 64x64 dots

Wooden case or flight is available, customer can choose according to their requirement.

About Us

Guangzhou Canyi Electronic Technology Co., Ltd. was established on October 15, 2015,have 7 years of industry experience. It is a high-tech enterprise integrating scientific research, development and engineering, mainly engaged in LED light-emitting devices, full-color LED electronic displays and LED applications of single and dual color LED electronic displays. It has a modern scientific research and development base, advanced scientific research, analysis and testing instruments and equipment, and a professional scientific research team and installation team, committed to the industrial development and service of optoelectronic application products in the optoelectronic field.
