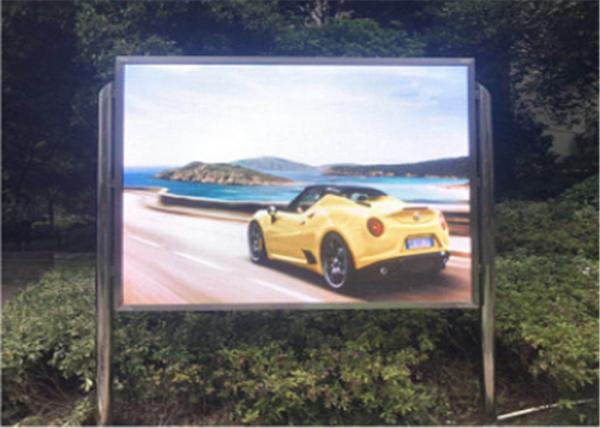

Anti Dust Outdoor Full Color LED Display Screen With Ultra High Contrast
Anti Dust Outdoor Full Color LED Display Screen With Ultra High Contrast
Specifications
Brand Name :
China
Model Number :
P4 full color led display module indoor led display
Certification :
CE ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000㎡/month
Delivery Time :
10-15 days
Packaging Details :
Wooden box
Name :
Outdoor Full Color LED Display Screen
Feature :
Anti Dust
Unit board size :
320 × 160mm
Power requirements :
5V
Brightness :
5000nits adjustable
Advantage :
Ultra High Contrast
Description

Anti Dust Outdoor Full Color LED Display Screen With Ultra High Contrast

Outdoor Full Color LED Display Screen Features

1. Easy to install

2. support front maintenance, can be curved design

3. 800-1500cd/m2 Brightness can be adjustment.

4. 5000:1 High color contrast, make the picture/Video clear and more level

5. High refresh rate (3840Hz),Using high reflesh IC, better viewing effect

Outdoor Full Color LED Display Screen Details

1. Modular design for quick installation and removal

2. Highly reliable data hot backup, avoiding any communication risks during the exhibition

3. High refresh rate up to 4200Hz, no flashing live video

4. Super brightness and color uniformity, pixel calibration before leaving the factory

Outdoor Full Color LED Display Screen Description

Module size:256*128mm Physical density: 62,500 points / m2
Pixel pitch:4mm white balance brightness:1000cd/m2
Resolution64*32 Scanning mode: 1/16 constant current
Viewing distance:4m-80m Module power:≤27.5W
Current limit:5.5±0.1A Service life: >100000 hours

Outdoor Full Color LED Display Screen parameter

Shenzhen jingcaiyuan electronic technology co. LTD
INDOOR P4 SMD 3IN1 TECHNICAL PARAMETERS
Unit Module Item Parameter
Model Number P4-16S
Module size 256mm*128mm
Pixel pitch 4mm
Pixels Density 62500 Dot / ㎡
Pixel configuration 1R1G1B
LED Package mode SMD2121Black light
Pixel resolution 64dots(W)*32 dots(H)
Max Power 22W
Module thickness 15mm(Without magnetic column)
27mm(With magnetic column)
Weight 0.208kg / 0.242kg
Drive type Constant drive
Scan mode 1/16scan
Port type HUB75
Brightness of white balance ≥1200cd / ㎡
LED Cabinet Dimension 512mm*512mm
Monomer Module Number 8pcs
Power supply 5V/60A*1 pcs
Pixel per cabinet 128*128
Best viewing distance 4M～20M
Best viewing angle 160°(W) 120°(H)
Temperature storage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity 10%-95%
Thickness 85mm

Power		 Working voltage AC220V±10%
Average Power consumption <280W/㎡
Max.Power consumption <700W/㎡
Current <18mA(single LED)

Control system		 CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7/WIN10
Control method Synchronization

Main technical parameter		 Driving device Constant drive IC
Refresh frequency >1920HZ
Grey scale/colors 16384gray level/16.7M colors
16384gray level/16.7M colors
MTBF >9000hours
Power switch Automatic switch
Display Mode ≥800*600/1024*768
bracket Size 256mm*128mm

Competitive advantages:

  • Installation service, usually we are not responsible for overseas installation, but we can
  • Provide technical support for you. If you need to install the service, we can send us
  • Technicians come to your country, but the cost is paid by the customer.
  • Free lifetime maintenance and software upgrades.
  • If you have any questions about the led display, we will reply you within 24 hours.
  • Provide maintenance instructions and problem resolution within 48 hours.
  • Provide customers with loaders so they can be used immediately after installation
  • Led display, no need to debug
  • Free technical training on how to use and process software.
