Modular Design Indoor Full Color LED Display Screen Quick Installation
Modular Design Indoor Full Color LED Display Screen Quick Installation
Specifications
Brand Name :
China
Model Number :
JingCaiYuan
Certification :
CE ROHS
Place of Origin :
CE ROHS
MOQ :
10㎡
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000㎡/month
Delivery Time :
10-15 days
Packaging Details :
Wooden box
Template resolution :
128*64
Cabinet size :
256*256 mm
Maximum Power :
850 Watts
Drive mode :
1/32 Scan Constant Current
Module size :
320mm*160mm
Pixel pitch :
2.5mm
Description

LED display unit board module P2.5 indoor surface mount full color 2 in 1 board 320*160mm

Competitive advantages:
  • Installation service, usually we are not responsible for overseas installation, but we can provide technical support for you. If you need this, we can arrange our technicians to your country, but the cost is paid by the customer.
  • Free lifetime maintenance and software upgrades.
  • If you have any questions about the led display, we will reply you within 24 hours, and provide maintenance instructions and problem resolution within 48 hours.
  • Providing customers with loaders so they can use the display immediately after installation
  • Led display, no need to debug
  • Free technical training about how to use and process software.

Details

1. Modular design for quick installation and removal

2. Highly reliable data hot backup, avoiding any communication risks during the exhibition

3. High refresh rate up to 4200Hz, and live video without flashing at all

4. Super brightness and color uniformity, pixel calibration before leaving the factory

Description:

Module size:200*150mm Module resolution:160*120
Module type: light and drive in one Drive mode: constant current drive

Module working voltage: +4.2V

 Point spacing:1.25mm
Module average power: 12W Pixel composition:1R1G1B
Module maximum power: 26W Vertical viewing angle:140°

Application:

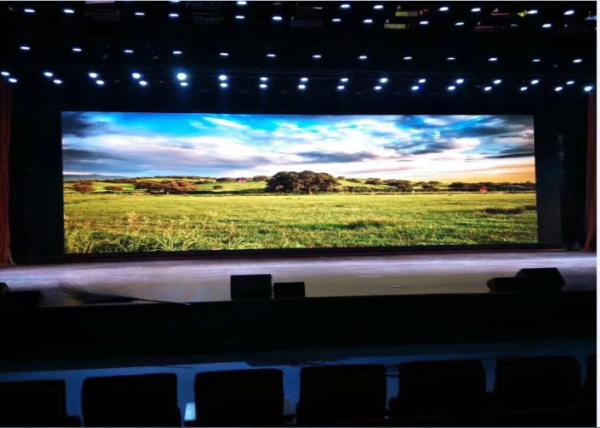

Full color screens are widely used in government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, clubs, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.

In short, many places need led screens for various purposes, we will do our best to meet trends and needs.

Specification (parameter):

SHENZHEN JINGCAIYUAN TECHNOLOGY CO., LTD
INDOOR SURFACE MOUNT P2.5 SMD 3 IN 1 TECHNICAL PARAMETERS
Unit Module Item 参数 Parameter
Model Number P2.5-32S
Module size 320mm*160mm
Pixel pitch 2.5mm
Pixels Density 160000点/m2
Pixel configuration 1R1G1B
Package mode SMD2121
Pixel resolution 128dots(W)*64 dots(H)
Max Power 32W
Module thickness 15mm(Without magnetic column)
27mm(Magnetic column)
Module weight 0.425kg
Drive type Constant drive
Scan mode 1/32scan
Port type HUB75E
LED Cabinet Dimension 640mm*640mm
Monomer Module Number 8pcs
Power supply 5V/60A*1 pcs
Pixel per cabinet 256*256
Best viewing distance 3M～20M
Best viewing angle 140°(W) 120°(H)
Temperature storage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity 10%-95%
Thickness 85mm
Power Working voltage AC220V±10%
Average Power consumption <240W/㎡
Max.Power consumption <620W/㎡
Current <18mA(single LED)
Control system CPU Pentium4 or above
Operation system WIN98/2000/NT/XP/WIN7/WIN10
Control method Synchronization
Main technical parameter Driving device Constant drive IC
Refresh frequency >1920HZ
Grey scale/colors 65536, displays 16.7M color
65536gray level/16.7M colors
MTBF >9000hours
Power switch Automatic switch
Display Mode ≥800*600/1024*768
