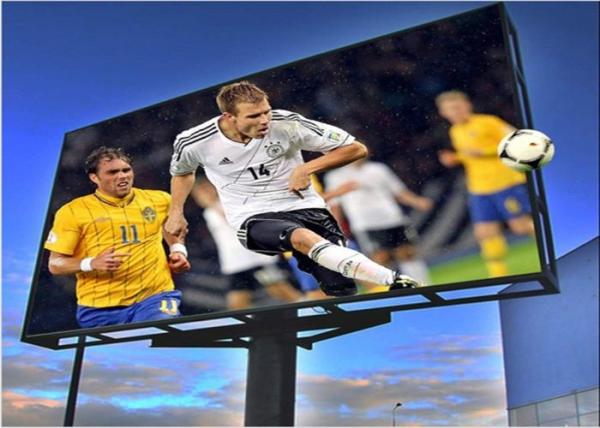

SMD Outdoor Full Color LED Display Screen Excellent Heat Dissipation Fan - Less
SMD Outdoor Full Color LED Display Screen Excellent Heat Dissipation Fan - Less
SMD Outdoor Full Color LED Display Screen Excellent Heat Dissipation Fan - Less
SMD Outdoor Full Color LED Display Screen Excellent Heat Dissipation Fan - Less
Specifications
Brand Name :
China
Model Number :
JingCaiYuan
Certification :
CE ROHS
Place of Origin :
P5 outdoor full color LED display
MOQ :
10 square
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000㎡/month
Delivery Time :
10-15 days
Packaging Details :
Flight Case
Gray level :
12/14/16bit
Refresh rate :
≥1920Hz
Unit board size :
320 × 160mm
Power requirements :
5V
Brightness :
5000nits adjustable
Vertical viewing angle :
120 degrees
Description

Outdoor P10 Full Color Module LED Display Electronic Advertising Large Screen Engineering Board

Description

Shenzhen jingcaiyuan electronic technology co. LTD
INDOOR P4 SMD 3IN1 TECHNICAL PARAMETERS
Unit Module Item Parameter
Model Number P4-16S
Module size 256mm*128mm
Pixel pitch 4mm
Pixels Density 62500 Dot / ㎡
Pixel configuration 1R1G1B
LED Package mode SMD2121Black light
Pixel resolution 64dots(W)*32 dots(H)
Max Power 22W
Module thickness 15mm(Without magnetic column)
27mm(With magnetic column)
Weight 0.208kg / 0.242kg
Drive type Constant drive
Scan mode 1/16scan
Port type HUB75
Brightness of white balance ≥1200cd / ㎡
LED Cabinet Dimension 512mm*512mm
Monomer Module Number 8pcs
Power supply 5V/60A*1 pcs
Pixel per cabinet 128*128
Best viewing distance 4M～20M
Best viewing angle 160°(W) 120°(H)
Temperature storage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity 10%-95%
Thickness 85mm

Power		 Working voltage AC220V±10%
Average Power consumption <280W/㎡
Max.Power consumption <700W/㎡
Current <18mA(single LED)

Control system		 CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7/WIN10
Control method Synchronization

Main technical parameter		 Driving device Constant drive IC
Refresh frequency >1920HZ
Grey scale/colors 16384gray level/16.7M colors
16384gray level/16.7M colors
MTBF >9000hours
Power switch Automatic switch
Display Mode ≥800*600/1024*768
bracket Size 256mm*128mm

Details

1. Modular design for quick installation and removal;

2. Highly reliable data hot backup, avoiding any communication risks during the exhibition;

3. High refresh rate up to 4200Hz, no flashing live video;

4. Super brightness and color uniformity, pixel calibration before leaving the factory;

5. Horizontal/vertical viewing angle up to 120° uniform HD display, no color cast, no color spots, no color blocks.

Application

Full color screens are widely used in government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, Clubhouses, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.

In short, many places need LED screens for various purposes, we just do our best to meet Trends and needs.

Specification (parameter):

Shenzhen jingcaiyuan electronic technology co. LTD
OUTDOOR P5 SMD 3IN1 TECHNICAL PARAMETERS

Unit Module		 Item Parameter
Model Number P5-8S
Module size 3200mm*160mm
Pixel pitch 5mm
Pixels Density 40000 dots/m2
Pixel configuration 1R1G1B
LED Package mode SMD2727 SMD2525
Pixel resolution 64dots(W)*32dots(H)
Max Power 50W
Module thickness 17.05mm
Weight 0.5kg
Drive type Constant drive
Scan mode 1/8scan
Port type HUB75
Brightness of white balance ≥6500cd/m2
LED Cabinet Dimension 640mm*640mm
Monomer Module Number 8pcs
Power supply 5V/60A*2 pcs
Thermal discharge fan 1pcs
Pixel per cabinet 128mm*128mm
Best viewing distance 5M～100M
Best viewing angle 160°(W) 120°(H)
Temperature storage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity 10%-95%
Thickness 85mm
Power Working voltage AC220V±10%
Average Power consumption <390W/㎡
Max.Power consumption <980W/㎡
Current <20mA(single LED)

Control system		 CPU Pentium4 or above P4
Operation system XP/WIN7
Control method Synchronization

Main technical parameter		 Driving device Constant drive IC
Refresh frequency >1920HZ
Grey scale/colors 16384gray level/16.7M colors
16384gray level/16.7M colors
MTBF >9000hours
Power switch Automatic switch
Display Mode ≥800*600/1024*768

Competitive advantages:

  • Installation service, usually we are not responsible for overseas installation, but we can
  • Provide technical support for you. If you need to install the service, we can send us
  • Technicians come to your country, but the cost is paid by the customer.
  • Free lifetime maintenance and software upgrades.
  • If you have any questions about the led display, we will reply you within 24 hours.
  • Provide maintenance instructions and problem resolution within 48 hours.
  • Provide customers with loaders so they can be used immediately after installation
  • Led display, no need to debug
  • Free technical training on how to use and process software.
