RGB Outdoor Full Color LED Display Screen Reliable System Long Service Life
RGB Outdoor Full Color LED Display Screen Reliable System Long Service Life
RGB Outdoor Full Color LED Display Screen Reliable System Long Service Life
RGB Outdoor Full Color LED Display Screen Reliable System Long Service Life
Specifications
Brand Name :
China
Model Number :
JingCaiYuan
Certification :
CE ROHS
Place of Origin :
P8 outdoor rental LED display
MOQ :
10 square
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000㎡/month
Delivery Time :
10-15 days
Packaging Details :
Flight Case
Brightness :
5000nits adjustable
Vertical viewing angle :
120 degrees
Frame change frequency :
60Hz
Power requirements :
5V
Description

RGB Outdoor Full Color LED Display Screen Reliable System Long Service Life

1. Modular design for quick installation and removal

2. Highly reliable data hot backup, avoiding any communication risks during the exhibition

3. High refresh rate up to 4200Hz, no flashing live video

4. Super brightness and color uniformity, pixel calibration before leaving the factory

5. Horizontal/vertical viewing angle up to 120° uniform HD display, no color cast, no color spots, no color blocks

Description

Aapplication: outdoor Module size: 256x128 mm
Pixel spacing: 8 mm Pixel density: 15625 points / m2
scanning method: 1/4 Cabinet size: 1024 * 1024 mm
Cabinet weight: 30kg / square meter Refresh rate: > 1200Hz
Package form: Patch 3535 Best viewing: 8m
Brightness: 6000cd / square meter Color temperature: 5000 - 6000 thousand

Details

1) High reliability: using distributed scanning technology and module design technology for higher reliability

Reliability and stability.

2) The system is stable and reliable: strong anti-interference ability, long service life, continuous use

Working for more than 24 hours, it is very easy to operate the system.

3) Wide viewing angle: both horizontal and vertical viewing angles are suitable for wide viewing angles

horizon.

4) Error detection and monitoring: can monitor internal temperature, voltage, cooling fan, etc.

Automatically detect errors.

5) Environmental protection, anti-static, dustproof, good heat dissipation and high cost performance.

6) Energy saving: low current, high brightness lamp, equipped with PFC switching power supply, can save 30%.

Application

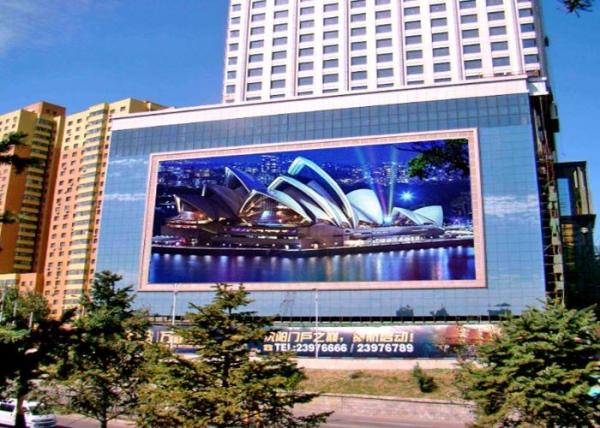

Outdoor large digital LED display signage application: Widely used in advertising media, concerts, TV shows, shopping malls, entertainment venues, schools, government, trade dialogues, trade fairs, exhibitions, cinemas, press conferences, conference rooms, airports, hotels, station halls and other public place.

Outdoor large digital LED display panel specifications:

Specification (parameter):

Indoor patch P3
Resolution / mm 3
Pixel configuration RGB 3 in 1
Pixel density / pixel / m2 111111 / square meter
Module resolution 64x64
Module size / mm 192 * 192
Line of sight ≥0.5m
Single point brightness adjustment Can be added
Single point color adjustment Can be added
White balance brightness > 2500cd /m2
Color temperature 6500K-9500K
Horizontal viewing angle 120 (degrees)
Vertical viewing angle 60 (degrees)
Signal processing bit 10 or 14
Gray process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distance Network cable: 100m, multi-film: 500m, single film: 5km
Driving mode Constant drive current
scanning method 1/32
Frame rate 60 Hz
Refresh rate > 4200Hz
way to control Computer synchronization
Brightness adjustment range Manual, automatic operation, continuous adjustment
Out of control point <1/10000
operating hours ≥72 hours
Mean time between failures > 5000 hours
lifetime 100,000 hours
All white (half the brightness) 50000 hours
Ambient temperature range Operating temperature range: -20-45 ° C Storage temperature range: -30-65 ° C
Maximum power: /m2 <1000W
Average power: /m2 <280W
Self-test technology LED check, communication check, power check,
Remote monitoring Temperature monitor (requires customization)
Software Environment Remote monitoring, recording potential failures,
Luminous point width between centers A warning signal is sent to the operator. (needs customization)
Brightness uniformity Windows NT, Windows 1999, Windows XP
Color uniformity (chromaticity coordinates) Deviation <3%
Power requirement <10%
Compared ±0.003
System protection AC85-264V (50Hz-60Hz)
Humidity (work) (1000:1)
Humidity (storage) Moisture proof, dustproof, high temperature protection, anti-corrosion, anti-burning, anti-static, anti-vibration

Competitive advantages:

  • Installation service, usually we are not responsible for overseas installation, but we can
  • Provide technical support for you. If you need to install the service, we can send us
  • Technicians come to your country, but the cost is paid by the customer.
  • Free lifetime maintenance and software upgrades.
  • If you have any questions about the led display, we will reply you within 24 hours.
  • Provide maintenance instructions and problem resolution within 48 hours.
  • Provide customers with loaders so they can be used immediately after installation
  • Led display, no need to debug
  • Free technical training on how to use and process software.

RGB Outdoor Full Color LED Display Screen Reliable System Long Service Life
