Box Waterproof LED Display , P6 Outdoor LED Video Wall Die Cast Aluminum Cabinet
Box Waterproof LED Display , P6 Outdoor LED Video Wall Die Cast Aluminum Cabinet
Box Waterproof LED Display , P6 Outdoor LED Video Wall Die Cast Aluminum Cabinet
Box Waterproof LED Display , P6 Outdoor LED Video Wall Die Cast Aluminum Cabinet
Specifications
Brand Name :
China
Model Number :
JingCaiYuan
Certification :
CE ROHS
Place of Origin :
P4 outdoor rental full color display
MOQ :
10 square
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000㎡/month
Delivery Time :
10-15 days
Packaging Details :
Flight Case
Input signal :
RF S-Video RGB, etc
Control System :
Nova/Linsn Control System
Unit board size :
320 × 160mm
Power requirements :
5V
Brightness :
5000nits adjustable
Vertical viewing angle :
120 degrees
Description

P4 outdoor rental LED display video concert stage wall curtain

Features of rental LED screen:

1. pixel particles is the use of well-known brands in China, the use of gold wire package connection, showing clear color, long life.
2. high power 5V LED dedicated power supply, energy saving, high conversion efficiency, can work in the high temperature environment.
3. receiving control card is a well-known Chinese products, high gray, high refresh rate, video high-definition display realistic. With the LED rental screen to send video processor.
4. aluminum metal box, enough thickness, can be permanently used is not easy to deformation, the box unit size can be customized.
5. Movable pallet and mounting brackets can be customized on demand.

Description

asphalt: 4 mm Module size: 256x128 mm
Cabinet size: 512x512mm Display function video
Mode driver: 1/16 second Pixel density: 62500 / square meter
Pixel: 64 * 32 points brightness: ≥1200cd

Details

1. Modular design for quick installation and removal

2. Highly reliable data hot backup, avoiding any communication risks during the exhibition

3. High refresh rate up to 4200Hz, no flashing live video

4. Super brightness and color uniformity, pixel calibration before leaving the factory

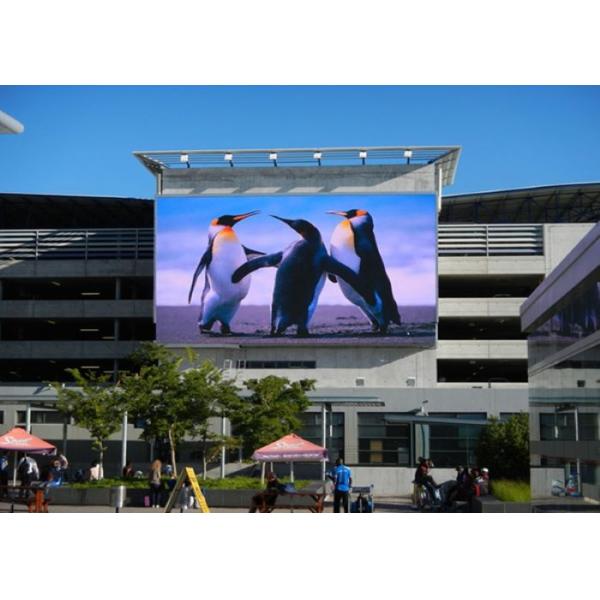

Application

Full-color screens are widely used in government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media, and other fields. For example supermarkets, restaurants, travel agencies, commercial plazas, cinemas, clubs, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.

In short, many places need LED screens for various purposes, we just do our best to meet trends and needs.

Specification (parameter):

Pixel spacing 4 mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 2121
Module size 256x128 mm
Module weight 0.35 kg
Module resolution 64x32 points
Number of modules per cabinet 8 pieces

Cabinet parameters:

Cabinet size 512x512mm
Cabinet material Die-cast aluminum
Cabinet weight 6.5 kg
Cabinet resolution 128x128 points
Protection level Before and after IP65 / IP54

Full screen parameter

Pixel density 62500 points / m2
brightness ≥1200cd /m2
Perspective Level ≥120°V≥120°
Minimum viewing distance 4m
Maximum power consumption 890W / m2
Average power consumption 330 watts / square meter
Operating Voltage 110~220VAC±15%
interface HUB75
color 16.7millon color
Grayscale 14-16
Frame rate ≥1000 frames/second
Refresh rate ≥1920Hz
Meantime between failures ≥50000 hours
life ≥100000 hours
Operating temperature -10°C~+ 60°C
Storage temperature -20°C~+ 60°C

Control system parameters:

The video signal (with video processor) AV, S-video, VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatically adjusted by software
way to control Computer, video sync, real-time, offline, internet, etc.

Competitive advantages:

  • Installation service, usually we are not responsible for overseas installation, but we can
  • Provide technical support for you. If you need to install the service, we can send us
  • Technicians come to your country, but the cost is paid by the customer.
  • Free lifetime maintenance and software upgrades.
  • If you have any questions about the led display, we will reply you within 24 hours.
  • Provide maintenance instructions and problem resolution within 48 hours.
  • Provide customers with loaders so they can be used immediately after installation
  • Led display, no need to debug
  • Free technical training on how to use and process software.
