Outdoor P10 Full Color Module LED Display Electronic Advertising Large Screen Engineering Board
1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!
Description
Product mode:P5-8S | Module resolution:64dots |
Module size:320*160mm | Maximum power consumption:50W |
Physical point spacing:5mm | Module thickness:17.05mm |
Light point color:1R1G1B | Module weight:0.5KG |
LEDPackage:SMD2727/ 2525 | Drive mode: constant current drive |
Details
1. Modular design for quick installation and removal;
2. Highly reliable data hot backup, avoiding any communication risks during the exhibition;
3. High refresh rate up to 4200Hz, no flashing live video;
4. Super brightness and color uniformity, pixel calibration before leaving the factory;
5. Horizontal/vertical viewing angle up to 120° uniform HD display, no color cast, no color spots, no color blocks.
Application

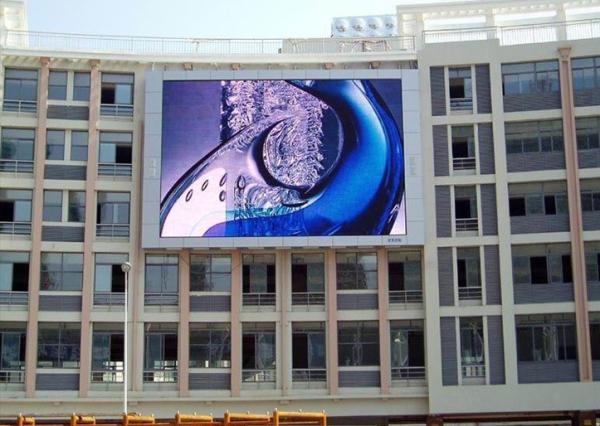

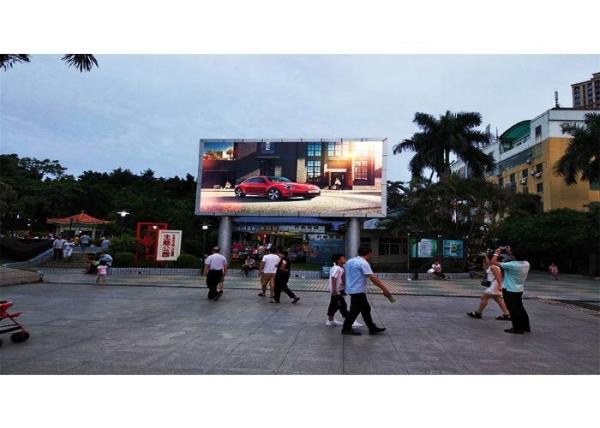

Full color screens are widely used in government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, Clubhouses, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.
In short, many places need LED screens for various purposes, we just do our best to meet Trends and needs.
Specification (parameter):
Shenzhen jingcaiyuan electronic technology co. LTD | ||
OUTDOOR P5 SMD 3IN1 TECHNICAL PARAMETERS | ||
Unit Module | Item | Parameter |
Model Number | P5-8S | |
Module size | 3200mm*160mm | |
Pixel pitch | 5mm | |
Pixels Density | 40000 dots/m2 | |
Pixel configuration | 1R1G1B | |
LED Package mode | SMD2727 SMD2525 | |
Pixel resolution | 64dots(W)*32dots(H) | |
Max Power | 50W | |
Module thickness | 17.05mm | |
Weight | 0.5kg | |
Drive type | Constant drive | |
Scan mode | 1/8scan | |
Port type | HUB75 | |
Brightness of white balance | ≥6500cd/m2 | |
LED Cabinet | Dimension | 640mm*640mm |
Monomer Module Number | 8pcs | |
Power supply | 5V/60A*2 pcs | |
Thermal discharge | fan 1pcs | |
Pixel per cabinet | 128mm*128mm | |
Best viewing distance | 5M~100M | |
Best viewing angle | 160°(W) 120°(H) | |
Temperature | storage:-35℃~+85℃ | |
working:-20℃~+50℃ | ||
Relative humidity | 10%-95% | |
Thickness | 85mm | |
Power | Working voltage | AC220V±10% |
Average Power consumption | <390W/㎡ | |
Max.Power consumption | <980W/㎡ | |
Current | <20mA(single LED) | |
Control system | CPU | Pentium4 or above P4 |
Operation system | XP/WIN7 | |
Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
Refresh frequency | >1920HZ | |
Grey scale/colors | 16384gray level/16.7M colors | |
16384gray level/16.7M colors | ||
MTBF | >9000hours | |
Power switch | Automatic switch | |
Display Mode | ≥800*600/1024*768 |
