P3 P4 P5 Outdoor LED Module 500*1000mm Cabinet Size High Frequency Scanning
P3 P4 P5 Outdoor LED Module 500*1000mm Cabinet Size High Frequency Scanning
P3 P4 P5 Outdoor LED Module 500*1000mm Cabinet Size High Frequency Scanning
P3 P4 P5 Outdoor LED Module 500*1000mm Cabinet Size High Frequency Scanning
Specifications
Brand Name :
China
Model Number :
JingCaiYuan
Certification :
CE ROHS
Place of Origin :
P4 full color led display module indoor led display
MOQ :
10 square
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000㎡/month
Delivery Time :
10-15 days
Packaging Details :
Wooden box
Color temperature: :
5000 - 6000 thousand
scanning method :
1/4
Unit board size :
320 × 160mm
Power requirements :
5V
Brightness :
5000nits adjustable
Vertical viewing angle :
120 degrees
Description

P4 indoor full color unit board p4 full color led display module indoor led display 256*128mm

Applications:

Business Organizations supermarket, large-scale shopping malls, , chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms,
Entertainments Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf co

Description

Model: Rental screen Applicable object: outdoor
Phone screen color: full color Display mode: static display
Cabinet size: 500*1000mm Adaptation point spacing: P4.81mm

Details

1. High frequency scanning, 62500 gray levels of each color are adjusted to the image, the image is fine, and the point-by-point correction technology is adopted, and the system is convenient to operate.

2. LED display features low low battery, high brightness, low operating voltage, low power consumption, miniaturization and easy to match with integrated circuits, simple drive, long life, stamping resistance and stable performance.

3. The box body is light and thin, convenient for disassembly and transportation. The box body is formed by die-casting aluminum, with high strength, strong toughness, high precision and not easy to be deformed, which is labor-saving.

4. The box body is connected by a quick lock structure, which can complete a box installation in 10 seconds, seamlessly splicing, smooth playback and bright colors.

5. LED has a typical service life of 100,000 hours, far higher than the traditional display backlight source and bulb.

Application:

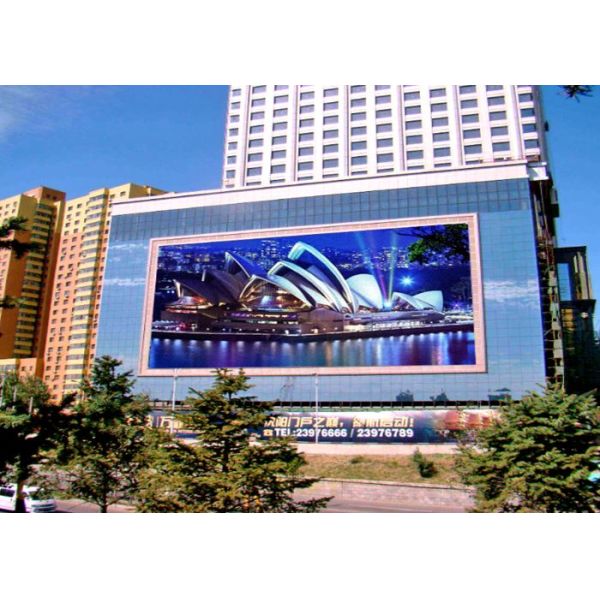

Full color screens are widely used in government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, clubs, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.

In short, many places need LED screens for various purposes, we just do our best to meet trends and needs.

Specification (parameter):

Pixel composition SMD2727
Pixel spacing 4.81mm (outdoor)
Module resolution 52*104(dots)
Pixel density 43264(dots/m2)
Module size 250*500*75mm
Box size 500*1000*75mm
Box material Die-cast aluminum
Box module 2*2 (WxH)
Cabinet resolution 104*208(dots)
Box weight 15.5 (single box / kg)
Module weight 1.6 (single module / kg)
Color processing depth 14Bit
Gray level 16384
Refresh rate 1920Hz
Drive mode 1/13
White balance brightness 5500nit
Perspective 140/120 (H/V°)
AC input voltage AC110V/AC220V±10%
AC input frequency 50Hz
AC input power maximum 700W/m2
AC input power average 300W/m2
Storage temperature -40°C to +60°C
Operating temperature -20 ° C to +50 ° C
Storage humidity 10% to 90% non-condensing
Working humidity 10% to 90% non-condensing
Product protection level Pre IP65/post IP54
Typical life of LED lights 100000hrs
Box installation method Lifting/fixing
Box maintenance mode Post maintenance

Competitive advantages:

  • Installation service, usually we are not responsible for overseas installation, but we can
  • Provide technical support for you. If you need to install the service, we can send us
  • Technicians come to your country, but the cost is paid by the customer.
  • Free lifetime maintenance and software upgrades.
  • If you have any questions about the led display, we will reply you within 24 hours.
  • Provide maintenance instructions and problem resolution within 48 hours.
  • Provide customers with loaders so they can be used immediately after installation
  • Led display, no need to debug
  • Free technical training on how to use and process software.
