SMD2121 Smart LED Poster Display 1R1G1B Pixel Configuration Energy Saving Economical

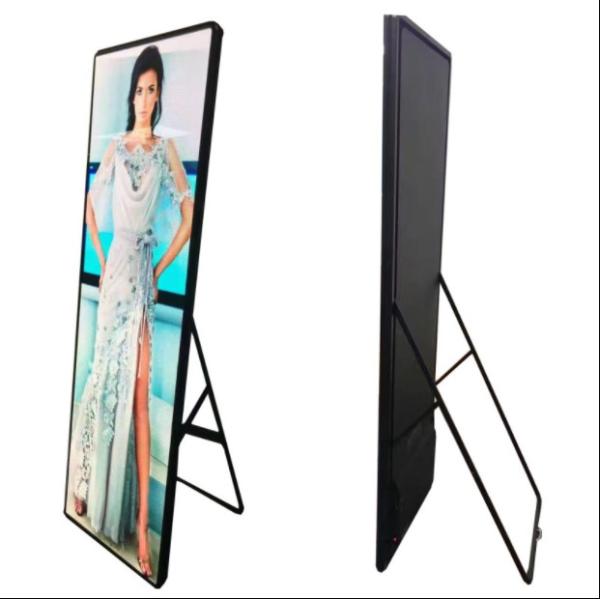

The ultra-thin, lightweight, innovative design Poster is the latest in creative retail LED advertising displays. Compared to traditional heavy and bulky LED advertising displays, Poster is much lighter, slimmer, and more convenient as it can be set up, relocated and operated very simply. Brighter with higher contrast compared to LCD displays the poster is the perfect retail advertising solution.
Details
1, light and thin screen body, front maintenance, the appearance of the atmosphere, fashionable and novel, flexible installation, can meet the installation needs of multiple clock application scenarios.
2. simple and convenient operation , plug and play advertisement, and the mobile APP can only remotely monitor and manage, so that everything is under control.
3. In the static state, the requirements for color and sharpness are more obvious than those for dynamic video screens. The viewers are more detailed in the static state, and there are other superb places in dealing with the close-range ink color and fluctuations.
4. Stability, willing to let the static picture control beat in a few seconds, there will be no phenomenon of fast and slow time, as well as stability in the control management system, information release and so on.
Application:
Full color screens are widely used in government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, Clubhouses, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.
In short, many places need LED screens for various purposes, we just do our best to meet Trends and needs
Description
Module size: 192*192mm | Module resolution: 64*64 pixels |
Cabinet size: 480*1920mm | Pixel: 192*640 pixels |
Pixel pitch: PH3mm | Cabinet size: 576*1920mm |
Pixel configuration: 1R1G1B | Cabinet material: steel |
LED type: SMD2121 | Density: 111111 pixels / m2 |
Specification (parameter):
Item: | LED Mirror screen |
Pixel spacing: | PH3mm |
Pixel configuration: | 1R1G1B |
LED type | SMD2121 |
Module size | 192*192mm |
Module resolution | 64*64 Pixel |
Pixel | 192*640 Pixel |
Cabinet size | 576*1920mm |
Cabinet material | steel |
Density | 111111 Pixel /m2 |
brightness | Greater than 1000nIT |
scanning | 1/32 sweep |
Field of view distance | More than 3m |
Power consumption | 80W/PC |
AV power consumption | 270W/PC |
weight | 40kg/pc |
Installation type | stable |
Gray level | R (256 bits) * G (256 bits) * B (256 bits) |
colour | Sr (1024) xg (1024) xb (1024) |
Refresh rate | 1920Hz |
Perspective | Level: 140 degrees, vertical 140 degrees |
Color temperature | 6500K |
Frame rate | More than 60Hz |
Out of control pixel rate | <1/10000 |
Screening life | >5000 hours |
life | 100,000 hours |
way to control | Synchronous display of control PC with DVI |
Operating Voltage | AC 100/200 volt 50-60Hz |
Control distance | Ethernet cable: 100m, multimode fiber: 500m, single mode fiber: 20KM |
Operating temperature | -40 to 50 |
Operating humidity | 10% to 80% |
Protection level | IP40, IP31 |
