Specifications
Brand Name :
JingCaiYuan
Model Number :
P1.25 small pitch LED full color display
Certification :
CE ROHS
Place of Origin :
China
MOQ :
10㎡
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
8000㎡/month
Delivery Time :
10-20 days
Packaging Details :
Wooden box
Module size :
200x150mm
Density :
360000dots/㎡
Power supply :
AC220V/50HZ AC110/60HZ
Earth leakage current :
<2mA
Working temperature :
-25℃ to 45℃
Working environment humidity :
10%-50%
Description

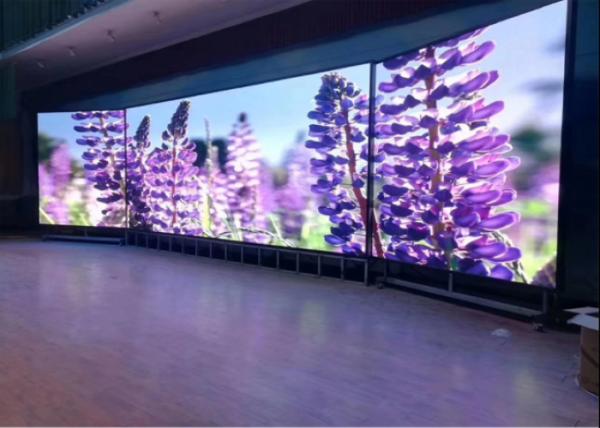

Seamless Small Pitch LED Display Ultra Thin Light Weight Convenient Space Saving

1. High brightness enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown.
2. Superb price/performance ratio offers both top-notch quality and reasonable price, maximization of the value of your investment.
3. Product post services


Good after-sales service
1. Three-years warranty for the entire system, except human factors and force majeure Guarantee.
2. One of the year the quality, maintenance of life, and to ensure the maintenance time in the contract.
3. The warranty period: solving problems for users through telephone, fax or email. Update the software for free.
4. As to product quality problems caused by the design, manufacturing, technology installation, equipment, replacement and maintenance are free. System damage caused by force majeure (flood, fire, earthquake, war, and so on) as well as users) artificial disturbance (construction, cleaning) should be coordinated by the two parties to résoudre.Entretien
5. Life long for the system: after the warranty, we charge only the cost of equipment.

Details

1. Modular design for quick installation and removal

2. Highly reliable data hot backup, avoiding any communication risks during the exhibition

3. High refresh rate up to 4200Hz, and live video without flashing at all

4. Super brightness and color uniformity, pixel calibration before leaving the factory

5. Horizontal / vertical viewing angle up to 120° uniform HD display, no color cast, no color spots, no color blocks

Application:

Full color screens are widely used in government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, clubs, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.

In short, many places need led screens for various purposes, we will do our best to meet trends and needs.

Description:

Module size:200*150mm Module resolution:160*120
Module type: light and drive in one Drive mode: constant current drive
Module working voltage: +4.2V Point spacing:1.25mm
Module average power: 12W Pixel composition:1R1G1B
Module maximum power: 26W Vertical viewing angle:140°

Specification (parameter):

Unit cabinet

Module distribution 2*2 block
Cabinet resolution 320*240

Maximum power of

cabinet

104W
Cabinet average power 52W
Module uniformity <5%
Cabinet size 400*300mm
Cabinet color black, grey

Protection degree

(front/back)

IP43

Full screen

Application indoor
White balance brightness ≥700cd/m2
Color temperature 9600K
Pixel density (dots/square meter) 640000
Power supply AC220V/50HZ AC110/60HZ
Earth leakage current <2mA
Working temperature -25℃ to 45℃

Working environment

humidity

10%-50%
Environmental temperature -40℃ to 80℃
Frame change frequency 60Hz
Refresh rate ≥3000Hz
Optimum line of sight ≥1.25m
Grayscale/color 281 trillion

Brightness adjustment

software

Software 16-level adjustment / 16-level automatic

control mode Synchronized displays with computer screen

Competitive advantages:

  • Installation service, usually we are not responsible for overseas installation, but we can provide technical support for you. If you need this, we can arrange our technicians to your country, but the cost is paid by the customer.
  • Free lifetime maintenance and software upgrades.
  • If you have any questions about the led display, we will reply you within 24 hours, and provide maintenance instructions and problem resolution within 48 hours.
  • Providing customers with loaders so they can use the display immediately after installation
  • Led display, no need to debug
  • Free technical training about how to use and process software.

Seamless Small Pitch LED Display Ultra Thin Light Weight Convenient  Space Saving
