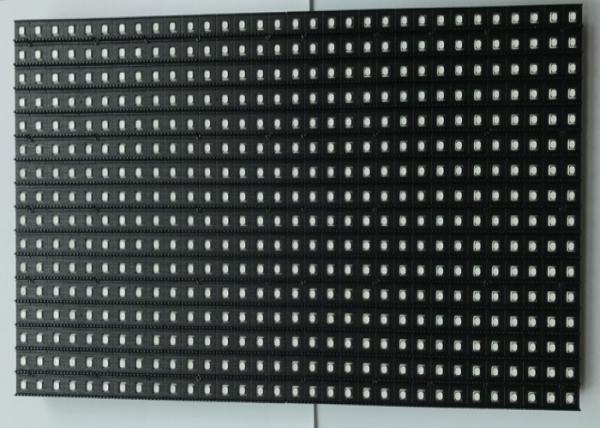

Spacious Advertising LED Video Module High Refresh Rate 192 Mm* 192 Mm
Spacious Advertising LED Video Module High Refresh Rate 192 Mm* 192 Mm
Specifications
Brand Name :
Jingcaiyuan
Model Number :
P6 indoor LED display module
Certification :
CE
Place of Origin :
China
MOQ :
10 square meter
Price :
Discussion
Payment Terms :
L/C, T/T
Supply Ability :
2000 square feet per month
Delivery Time :
10-15 days
Packaging Details :
Flight Case
Refresh rate :
> 4200Hz
Product Name :
P4.81 HD LED board display LED screen
Module size :
192 mm* 192 mm
Module density :
27780 pixels / square meter
Module resolution :
32 * 32 points
LED package :
Patch 3 in 1 (3528)
Description

P6 indoor RGB LED module pixel pitch 6mm drive duty cycle 1/16 scan drive mode SMD3528

Feature

1, Seamless connection, perfectly replace LCD ;

2, Special design for the mask to realize higher contrast (5000:1) and larger viewing angle (160°) ;

3, Brightness and refresh rate can be adjustable ;

4, True color reproduction ;

5, High grayscale (16bit) and high refresh rate (2500Hz) ;

6, Lower power consumption with high PFC power supply, the drive current of each LED lamp less than 30mA ;

7, Nova / Linsn / Colorlight / Xixun / Huidu / Lumen control system are available.

Specification (parameter) of Indoor LED Display Module :

Module size: 192 * 192 mm Module resolution: 32 * 32
Cabinet size: 576 * 576 mm Drive mode: 1/16 scan
Cabinet resolution: 96 * 96 Module weight: 0.304 kg
brightness: 1400cd /㎡ LED chip Patch 3528

Details of Indoor LED Display Module

1. Modular design for quick installation and removal.

2. Highly reliable data hot backup, avoiding any communication risks during the exhibition.

3. High refresh rate up to 4200Hz, no flashing live video.

4. Super brightness and color uniformity, pixel calibration before leaving the factory.

5. Horizontal/vertical viewing angle up to 120° uniform HD display, no color cast, no color spots, no color blocks.

Application

Full color screens are widely used in government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, clubs, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.

In short, many places need led screens for various purposes, we just do our best to meet trends and needs.

Specification (parameter):

Modules No Item parameter
1 Module model SH-P6 (indoor)
2 Pixel spacing 6 mm
3 Module size 192 mm* 192 mm
4 Module density 27780 pixels / square meter
5 Module resolution 32 * 32 points
6 LED package Patch 3 in 1 (3528)
7 Pixel configuration 1R1G1B
cabinet 1 size 576 mm* 576 mm* 80 mm
2 Physical resolution 96 * 96 points
3 Number of modules 9 sets
4 weight 9kg / piece
5 material Die-cast aluminum
6 Drive mode Constant current +1/16 scan
7 brightness ≥1200 nits
8 Maximum power consumption 350W / square meter
9 Average consumption 200W / square meter
10 Frame rate 60HZ
11 Refresh rate > 1200HZ
12 Gray scale 1024〜16384
13 Input voltage AC100-120V AC200-240V
14 power supply 5V / 40A 1
15 Viewing angle (horizontal/vertical) 120°/ 120°
16 Viewing distance 5m-100m
17

working environment

 Temperature: -20 ° C ~ 60 ° C
Humidity: 10%~90%RH
18 Control System Synchronous or asynchronous control system
19 Display function film
20 certificate CE certification (SGS)

Competitive advantages:

  • Installation service, usually we are not responsible for overseas installation, but we can
  • Provide technical support for you. If you need to install the service, we can send us
  • Technicians come to your country, but the cost is paid by the customer.
  • Free lifetime maintenance and software upgrades.
  • If you have any questions about the led display, we will reply you within 24 hours.
  • Provide maintenance instructions and problem resolution within 48 hours.
  • Provide customers with loaders so they can be used immediately after installation
  • Led display, no need to debug
  • Free technical training on how to use and process software.
