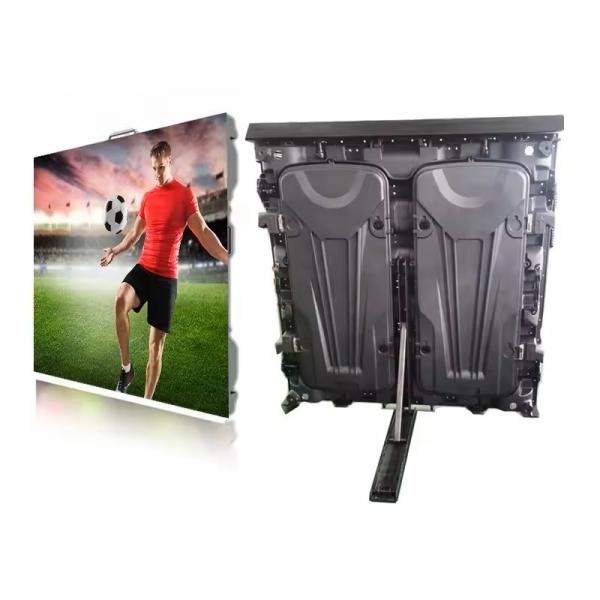

Waterproof Outdoor Led Advertising Screen P8 Fixed For Football Stadium
Waterproof Outdoor Led Advertising Screen P8 Fixed For Football Stadium
Waterproof Outdoor Led Advertising Screen P8 Fixed For Football Stadium
Waterproof Outdoor Led Advertising Screen P8 Fixed For Football Stadium
Waterproof Outdoor Led Advertising Screen P8 Fixed For Football Stadium
Waterproof Outdoor Led Advertising Screen P8 Fixed For Football Stadium
Waterproof Outdoor Led Advertising Screen P8 Fixed For Football Stadium
Waterproof Outdoor Led Advertising Screen P8 Fixed For Football Stadium
Specifications
Brand Name :
HSCX
Model Number :
P8
Certification :
CE ROHS FCC
Place of Origin :
SHENZHEN
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
10-35 workdays
Packaging Details :
Fight case/Wooden case/honeycomb Box
Pixel Pitch (Mm) :
P8
Tube Chip Color :
FULL COLOR
LED Type :
SMD3535
Module dimension :
320*160mm(W*H)(mm)
Module Resolution :
40*20(W*H)(Pixel)
Pixel Density :
15625 Pixel/m2
Refresh Rate :
>1920-3840 HZ
Cabinet Dimension :
960*960(W*H)(mm)
Cabinet Material :
Magnesium Alloy
Cabinet Weight :
28(kg)
Ingress Protection :
IP65
operating life :
100000H
Description

Customized RGB LED Screen Football Stadium Advertising Boards

Customized LED Display Football Stadium Advertising Boards P8

Quick details of P8Football Stadium Advertising Boards

Led Display Specification

outdoor Stadium led display P8
Resolution/mm 8
LED Type SMD3535
Module DIMENSION(W*H)(mm) 320*160
Pixel density/pixels/m² 15625/m²
Module resolution 40x20dot
Scan mode 5S

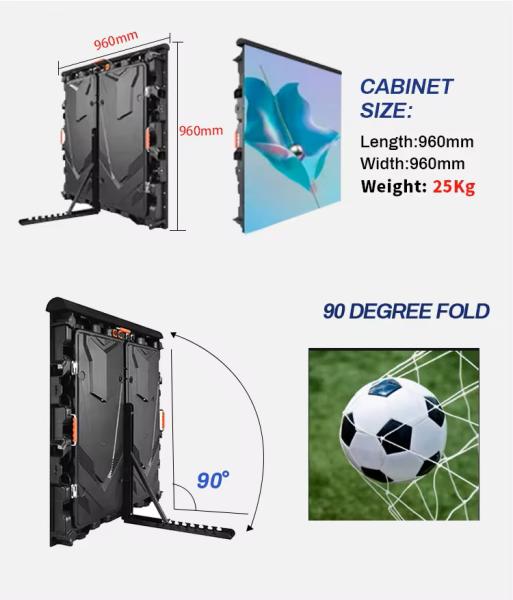

Cabinet Dimension(W*H)(mm) 960 x 960
Cabinet Resolution(W*H)(Pixel) 120 x 120
Cabinet Material Magnesium Alloy
Cabinet Weight(KG) 28
Best Viewing Distance(m) 8
brightness >6500cd/㎡
Refresh frequency >1920-3840Hz
Ingress Protection(Fron/Rear) IP65
Viewing Angle H:140° V:140°
Color Temperature 3200-9500K
Gray Level 14bit
Maximum power 800W/m2
Average power 350W/m2
Environment temperature range Operating temperature range: -30-80℃
Humidity(working) working:10-95%
Input Voltage AC110-220V±15% 50-60Hz
Life time 100000hours

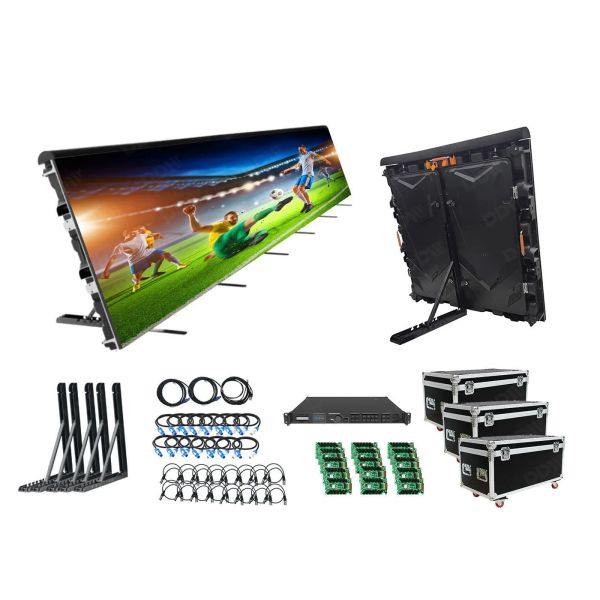

Outdoor Stadium Perimeter LED display
Features:
1) Extra Wide Viewing Angle, larger than 140 degree;
2) Soft Rubber Face, Protecting Electronics while Be Safe to Players;
3) Super-High Refresh Rate, ensuring flicker-free video camera capturing;
4) Very wide brightness dynamic range (1000:1), achieving good picture contrast ratio in different illumination level;
5) Variable field layout and sub-window division, housing different advertising capacity;
6) Astonishing synchronizing between sub-windows;
7) Easy and fast in-field-setup-work;
8) Strong and rugged enclosure design;
9) Modules can be daisy chained as perimeter, or tiled up as big display;
10) Neat and simple system wiring scheme, scalable system configuration;
11) Flight case grants safe and quick transportation;
12) Projects proven product reliability.
