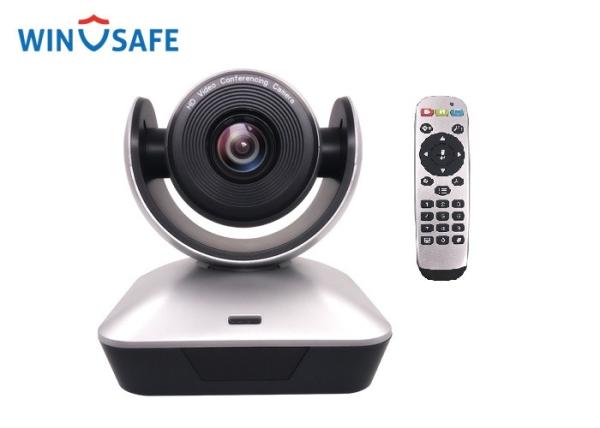

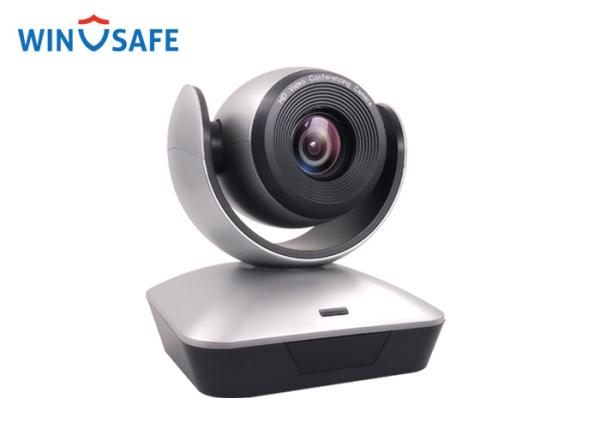

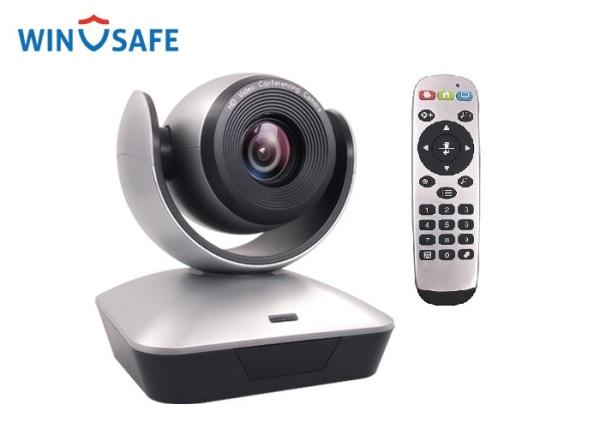

Grey Small Full HD USB Video Conference Camera With Optical Zoom 0.1Lux
Grey Small Full HD USB Video Conference Camera With Optical Zoom 0.1Lux
Grey Small Full HD USB Video Conference Camera With Optical Zoom 0.1Lux
Grey Small Full HD USB Video Conference Camera With Optical Zoom 0.1Lux
Grey Small Full HD USB Video Conference Camera With Optical Zoom 0.1Lux
Grey Small Full HD USB Video Conference Camera With Optical Zoom 0.1Lux
Specifications
Brand Name :
WINASFE
Model Number :
UHV-10X-U3S
Certification :
CE,FCC etc.
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/month
Delivery Time :
3-5 work days
Packaging Details :
Netural Packing
Video resolution :
1920x1080p60/50/30/25,1280x720p60/50/30/25
Sensor :
1/2.8 inch high quality, SONY CMOS Sensor
Zoom :
10x optical zoom + 12x digital zoom
Minimum Lux :
0.1Lux
Control Port :
RS232(Sony Visca), USB3.0(UVC1.5 protocol)
Video Port :
USB3.0(YUY2 format)
OSD Menu :
English/Spanish/Russia/Chinese
Dimension(W x H x W) :
148mm x 132mm x 161mm
Description

Grey Small Full HD USB3.0 Camera With 10X Optical Zoom Video Conference Webcam

Technical Specification

Model No. UHV-10X-U3S
Sensor 1/2.8 inch high quality, SONY CMOS Sensor, 2.1MP
Video System 1920x1080p60/50/30/25,1280x720p60/50/30/25
Zoom 10x optical zoom + 12x digital zoom
View Angle 6.43°(wide) - 62.5°(tele)
SNR More than 50dB
Focal Length f=4.7(wide) - 47mm(tele)
Minimum Lux 0.1Lux
White Balance Auto/Manual
Focus Auto/Manual
Iris Auto/Manual
Black Light Compensation ON/OFF
Anti Flicker 50Hz/60Hz/OFF
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 30° - + 90°
Pan Rotation Speed 0° - 120° /s
Tilt Rotation Speed 0° - 80° /s
Preset 128 via RS232 control; 10 via remote controller
Control Port RS232(Sony Visca), USB3.0(UVC1.5 protocol)
Video Port USB3.0(YUY2 format)
Input Voltage DC12V
OSD Menu English/Spanish/Russia/Chinese
Dimension(W x H x W) 148mm x 132mm x 161mm
Package 280mm x 240mm x 240mm

Grey Small Full HD USB Video Conference Camera With Optical Zoom 0.1Lux

Advantages

※ Ultra crystal video quality: with Ambarella DSP 1/2.8 inch SONY sensor
and high quality 10x lens
※ Fast switching between different video formats: less than 1 second
※ Fast and accurate focus performance
※ Easy firmware upgrade: no need to open the camera housing
※ USB2.0 compatible
※ Compatible with the majority of video conferencing software(UVC1.5 protocol standard)
※ Powerful functional remote controller
※ Multi language OSD menu: support English, Chines, Russia, Spanish
※ 2 years warranty time

Features

※ USB 3.0 high speed output
※ Zoom: 10X optical Zoom +12X Digital zoom
※ 1920x1080p 60fps high resolution
※ 62.5° field of view
※ Ultra smooth PTZ mechanism
※ Accurate PT motor control
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ WDR, 3D-noise reduction function
※ Image flip function support inverted installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls

Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days

Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea

FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days

Why choose us
Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
