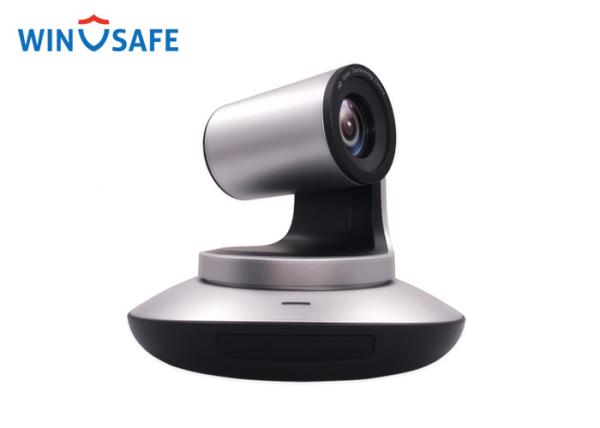

IP UHD USB3.0 & HDMI & SDI 4K Conferencing Camera For Church Live Streaming
IP UHD USB3.0 & HDMI & SDI 4K Conferencing Camera For Church Live Streaming
IP UHD USB3.0 & HDMI & SDI 4K Conferencing Camera For Church Live Streaming
IP UHD USB3.0 & HDMI & SDI 4K Conferencing Camera For Church Live Streaming
Specifications
Brand Name :
WINASFE
Model Number :
UHV-400-H
Certification :
CE,FCC etc.
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/month
Delivery Time :
3-5 work days
Packaging Details :
Netural Packing
The max resolution :
3840x2106p30
Min.Focus Distance :
Wide: 0.3m Tele: 1m
IP Protocol :
TCP/IP, HTTP,RTSP,RTMP, ONVIF, DHCP
POE :
Supported
Dimension :
220mm x 173mm x 190mm
Net Weight :
1.25KGS ( 2.8LBS)
Zoom :
12x optical zoom + 2x digital zoom
Video Port :
HDMI / RJ45 / SDI / USB3.0 / USB2.0
Description

IP UHD USB3.0 & HDMI & SDI 4K Conferencing Camera For Church Live Streaming

Feature

※ Light/ colour optimisation

UHV-400-H prioritised faces over objects and surfaces, enhance light balance to make presenters look the best with natual skins tones.

※ Premium camera optics

UHV-400-H features 12MP 4K COMS sensor and 12X optical zoom with 72.5 degree of filed, which captures every person and details in the rrom with spectacular video quality.

※ Multiple interface options

HDMI & Lan interface support 3840X2160 video output separately. 3G-SDI & USB3.0 compatible with USB2.0 deliver 1080P video quality to the display in the conference room. No matter which interface, the advanced 4K imaging system offers remarkable quality at all HD and Ultra HD resolutions with sharp video, excellent color reproductionm and exceptional optical accuracy.

※ Special Focusing Algorithm

Whisper-quiet mechanical PTZ motor adjusts the speed of pan and tilt. When zoomed in or out, the camera focus on the face or objects quickly to make it seen clearly within 2-3 seconds.

※ User-friendly experience

When UHV-400-H detects the face and objects, it optimises the details according to the environment around. Natural-looking skin tones can be felt in the video. Plus, the camera is compatible with virtually any video conferencing app right out of the box.

Technical Specification

Model No. UHV-400-H
Sensor 1/2.5" inch, 12MP High Quality CMOS Sensor
Video Format HDMI IP SDI USB3.0
3840X2160P30/25
1080p50/50/30/25
720p60/50/30/25
1080i60/50		 Main Stream:
3840x21060p30
1920x1080p60
Sub Steam:
1280x720, 704x576
640x480, 352x288		 1080p60/50/30/25
720p60/50/30/25
1080i60/50		 1080p60/50/30/25
720p/60/50/30/25
USB 3.0 & USB 2.0
1024X576p30
960x540p30
640x360p30
352x288p30
Zoom 12x optical zoom + 2x digital zoom
View Angle 6.3°(near) - 72.5°(far)
F.No. Wide: 1.84 Tele: 2.81
Min.Focus Distance Wide: 0.3m Tele: 1m
Preset 10 via remote controller, 128 via serial port, preset precision:0.1°
Rotation Angle Pan: - 170° - +170°; Tilt: - 35° - + 90°
Roation Angle Pan: 0° - 120°/s; Tilt: 0° - 80 °/s
Control Port RS232/RS485/RJ45
Video Port HDMI / RJ45 / SDI / USB3.0 / USB2.0
Network Speed 1000M
Noise Reduction 2D & 3D
SNR More than 50dB
Focal Length f=3.92(near) - 47.32mm(far)
Minimum Lux 0.01Lux
White Balance Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor
Anti Flicker 50Hz/60Hz/OFF
D/N Mode Supported
Gamma Supported
Mirror Image Supported
Pan Tilt Flip Supported
Iris Auto/Manual
Electric Shutter Auto/Manual
BLC Auto/Manual
Focus Auto/Manual
Video Encoding H.264 / H.265
Bit Rate Control Variable Bit Rate, Constant Bit Rate
Video Bit Rate 1024Kbps - 30720Kbps
Frames 50HZ: 1fps - 50fps 60HZ: 1fps - 60fps (3840x2160 max. 30f[s)
IP Protocol TCP/IP, HTTP,RTSP,RTMP, ONVIF, DHCP
POE Supported
Input Voltage DC12V, 2A
Dimension 220mm x 173mm x 190mm
Net Weight 1.25KGS ( 2.8LBS)


Input/Output Interface

IP UHD USB3.0 & HDMI & SDI 4K Conferencing Camera For Church Live Streaming


Dimensional Drawing(mm)

IP UHD USB3.0 & HDMI & SDI 4K Conferencing Camera For Church Live Streaming
