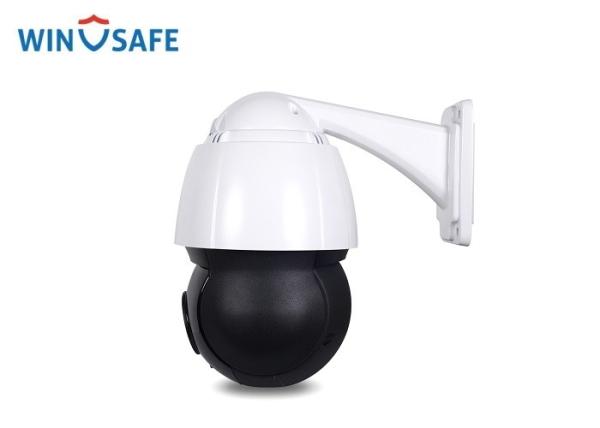

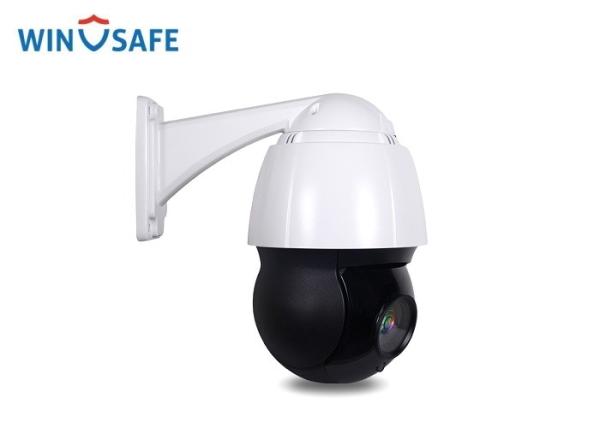

High Definition Full HD PTZ Camera R Distance 150 Meters For Forest / Road Monitoring
High Definition Full HD PTZ Camera R Distance 150 Meters For Forest / Road Monitoring
High Definition Full HD PTZ Camera R Distance 150 Meters For Forest / Road Monitoring
High Definition Full HD PTZ Camera R Distance 150 Meters For Forest / Road Monitoring
High Definition Full HD PTZ Camera R Distance 150 Meters For Forest / Road Monitoring
High Definition Full HD PTZ Camera R Distance 150 Meters For Forest / Road Monitoring
Specifications
Brand Name :
Winsafe
Model Number :
WS-BT86N
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1piece
Payment Terms :
L/C, T/T, Western Union, Paypal
Delivery Time :
5-8 work days
Packaging Details :
Neutral packing
Sensor :
IMX323 2.0MP
Pixel :
2.0MP/5.0MP
Network Protocol :
TCP/IP, SMTP,RTP,RTSP
Guard Tours :
3 groups
Guard Points :
Max.16 points
Lightning Protection :
Transient voltage 6000V
Net Weight :
1..65kg
Gross Weight :
2.38kg
Description

IP High Speed PTZ Dome Camera High Definition Outdoor IP66 with IR Distance 150 Meters for Forest and Road Monitoring

Feature

※ Support P2P function
※ IR Max Distance is 150M
※ Support 20/36X Optial Zoom,support full focus
※ Support onvif,Best compatibility
※ Compatible with DAHUA , HIKVISION , XM,UC2,AEVISION,Milestone
※ Working Temperature -40℃+60℃
※ Support RTSP and H.264/MJPEG Three steam encoding,support video output
※ Dual system backup,fault self-recovery,support A-B, partol and other functions
※ Support Transient voltage 6000V,Lightning Surge Protection
※ PWM Auto Control IR LED,Brightness uniformity, low heat, infrared lamp life extension

Specification

Model No. WS-BT86-N
DSP HI3516C HI3516D HI3516D
Sensor IMX323 2.0MP AR0521 5.0MP Panasonic34229 2.0MP
Resolution HD:1080p/30fps,1080p/25fps 2592*1944@15fps 2592*1944@22fps 1920*1080@25fps 1920*1080@30fps
Zoom 20X 20X 36X
Lens f=4.7mm-94mm f=4.7mm-94mm f=4.6mm-165mm
Power DC12V3A
Network Protocol TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
Network Safe HTTPS,802.1X,IP ADDRESS FILTERING
Pan rotation speed 300°/s
Tilt rotation speed 80°/s
Auto Control IR LED PWM
Auto Flip Horizontal 360°, Vertical 93°
A-B Scan User programmable
Mechanical zero calibration Support
Focal 5.35mm~96.3mm/4.6～ 152mm/5.4mm-97mm
Video H.264/H.265M-JPEG
Audio G711,PCM
Mobile APP Android,IOS Hisee
Preset Points 220
Guard Tours 3 groups
Guard Points Max.16 points, dwell time user selectable
Operating temperature Indoor: 0°~ +40° Outdoor: -40°~ +60°
Operation menu English
Auto Control IR LED PWM
IR distance up to 150 meters
Software Control IE, CMS, Management Platform
Power Consumption ≤15W
Lightning Protection Transient voltage 6000V
Size W330mm*D330mm*H520mm
Weight N.W 1.65KG/G.W 2.38KG
Related validation IP66,CE,FCC,RoHs

Dimension Drawing

High Definition Full HD PTZ Camera R Distance 150 Meters For Forest / Road Monitoring

High Definition Full HD PTZ Camera R Distance 150 Meters For Forest / Road Monitoring

High Definition Full HD PTZ Camera R Distance 150 Meters For Forest / Road Monitoring
