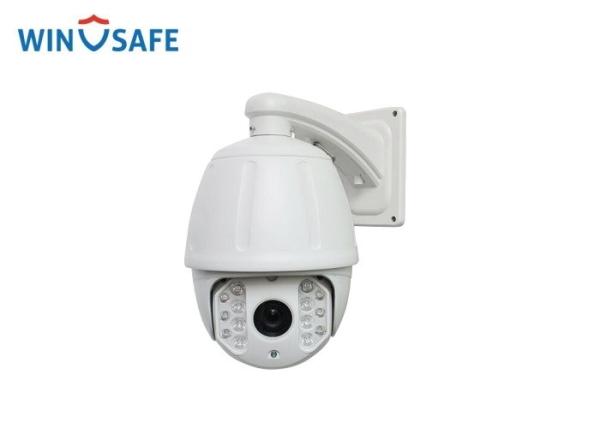

7 Metal HD PTZ Security Camera Waterproof 1080P Resolution Onvif 2.2 Compatible
7 Metal HD PTZ Security Camera Waterproof 1080P Resolution Onvif 2.2 Compatible
7 Metal HD PTZ Security Camera Waterproof 1080P Resolution Onvif 2.2 Compatible
7 Metal HD PTZ Security Camera Waterproof 1080P Resolution Onvif 2.2 Compatible
Specifications
Brand Name :
Winsafe
Model Number :
WS-BT816-N
Certification :
CE,FCC, ROHS
Place of Origin :
China
MOQ :
1piece
Payment Terms :
L/C, T/T, Western Union, Paypal
Delivery Time :
5-8 work days
Packaging Details :
Neutral packing
Optical Zoom :
20X / 30X
Digital Zoom :
10X
DSP :
HI3516C / HI3516D
IR Distance :
150 meters
Pixel :
200W / 500W
PWM function :
Support
Resolution :
1080P
Power :
DC12V 3A
Description

7" Metal PTZ High Speed Dome Camera Waterproof IP66 1080P Onvif 2.2 Compatible

Feature

※ 7" double layer body construction,IP66
※ 1/3" CMOS, 2.0/5.0 Megapixels, 20x / 36x optical zoom
※ HD-IP digital interface output, 1080P high definition image
※ PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor
※ IR distance up to 150M, 14 Pcs Array 42Mil LEDs.
※ Support P2P function
※ ONVIF2.2 compatible
※ Compatible with DAHUA , HIKVISION , XM and most of NVR.
※ Compatible with CMS, UC2, Milestone, VMS, NUUO and AXXON platform.etc

Specification

Model No.WS-BT816
DSPHI3516CHI3516DHI3516D
Sensor1/3" Sony IMX3231/3" AR05211/3" Panasonic34229
Pixel200W500W200W
Resolution Ratio1920*1080@25fps / 1920*1080@30fps2592*1944@15fps / 2592*1944@22fps1920*1080@25fps / 1920*1080@30fps
Lensf=4.7mm-94mmf=4.7mm-94mmf=4.6mm-165mm
Optical Zoom20X20X36X
Digital Zoom 10X
Min. illuminationColor: 0.1Lux B/W: 0.01Lux / IR ON:0 Lux
D/NIR-CUT
AGCAuto/manual
WBAuto/manual/indoor/outdoor
S/N Ratio≥50dB
Rotation Range Pan: 0°~360° Tilt: 0°~93°
Horizontal Rotation Speed 0.02°/s-45°/s
Tilt Rotation Speed 0.02°/s-30°/s
Auto FlipHorizontal 180°, Vertical 93°
A-B ScanUser programmable
A-B Scan Speed 1-9 levels setting available
Communications Protocol TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
Software ControlIE, CMS, Management Platform
Network SecurityHTTPS,802.1X,IP ADDRESS FILTERING
Quick CommandPELCO instruction set
Mobile View(optional)Support android/ios smart phone
APPHisee
Video CompressionH.264/H.265/M-JPEG
Audio compressionG711,PCM
Audio FrequencyOptional
Dwell Preset1-60s interval available
Preset Points 220
Go to Preset Speed1-64 levels available
PWR On ActionMemory/Tour 1/360° scan/A-B scan/Preset 1-8/None
Park Time1-60mins available
Guard Tours3 groups
Guard PointsMax.16 points, dwell time user selectable
Operation menuEnglish etc
Pan and Tilt position displaySupport
Auto Control IR LEDPWM
LEDsArray 42Mil, 3 pcs Laser led+6 pcs IR led
Lightning ProtectionTransient voltage 6000V
IR distanceUp to 150 meters
Support ambient light detectionIR illumination on 1-9 grades selectable;
Operating temperatureOutdoor: -40°~ +60°
Operating Humidity≤95% Non Condensing
PowerDC12V 3A
Consumption≤15W
Ingress ProtectionIP66
Packing Case Size31cm x 31cm x 44cm/PCS(L*W*H) / 64cm x 31cm x 45cm/2PCS (L*W*H)
WeightN.W 5.6KG/G.W 7KG


Dimension drawing
