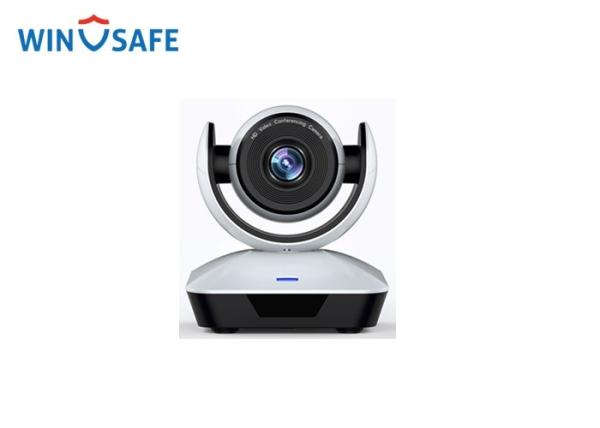

Mini Size PTZ Video Conference Camera Dual SDI 3840 x 2160 VISCA Procotol Supported
Mini Size PTZ Video Conference Camera Dual SDI 3840 x 2160 VISCA Procotol Supported
Mini Size PTZ Video Conference Camera Dual SDI 3840 x 2160 VISCA Procotol Supported
Mini Size PTZ Video Conference Camera Dual SDI 3840 x 2160 VISCA Procotol Supported
Specifications
Brand Name :
Winsafe
Model Number :
LTC-S600
Certification :
CE, FCC
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
5-8 work days
Packaging Details :
Neutral Packing
Sensor :
12MP Sony COMS Sensor
Resolution :
1080p30/25
Video output :
Dual SDI ports
Minimum Lux :
0.1Lux
Power Supply :
DC12V
Net weight :
0.9KG
FOV :
72 degree
Description

3840x2160 Ultra HD Mini Size Dual SDI Eptz Webcam Video Conference Camera, VISCA Procotol supported

Advantages

※ Adopt the highest industrial level DSP technology, use 1/1.7 inch 12MP high quality sensor, capture 3840x2160 ultra high definition image, 2 streams of 1080P full HD video output simultaneously: one stream
output panoramic image; another stream output close-up shot image
※ Smart & Solid design

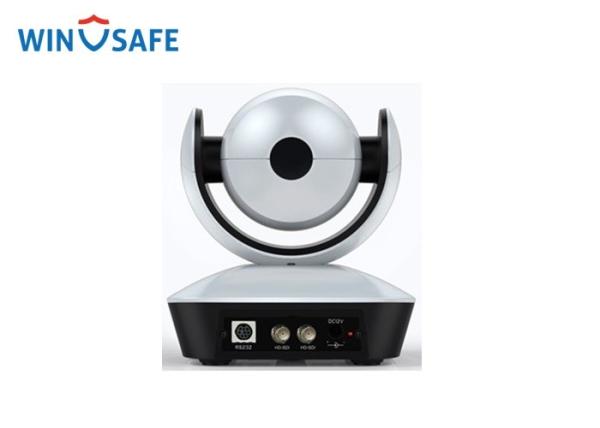

※ Dual SDI output
※ Standard VISCA control

Features

※ Select different ultra HD lens:(such as 5mm,8mm,12mm or other lens)
※ 1920 x 1080p30 full HD resolution
※ 72° FOV
※ RS232/485 Control
※ WDR, 3D Noise Reduction feature
※ Mounts: Wall mount & in-ceiling mount available

Technical Specification

Model No. LTC-S600
Sensor 1/1.7 inch high quality, 12MP SONY CMOS Sensor
Video System 1080p30/25
Optical Lens 5mm - 13.6mm optional
H. FOV 5mm lens: -72°(Far)
7.8mm lens: 57°(Far)
12mm lens: 47°(Far)
Control Port RS232/RS485
Video Port Dual SDI ports
SNR More than 50dB
Focal Length f=3.6(wide) - 13.6mm(tele)
Minimum Lux 0.1Lux
White Balance Auto/Manual
Focus Auto/Manual
Iris Auto/Manual
Electronic Shutter Auto/Manual
BLC Auto/Manual
Input Voltage DC12V
Dimension(W x H x W) 148mm x 132mm x 161mm
Net Weight 0.9KG(2LBS)

Application
With dual SDI output, LTC-S600 processes smart and solid design. Ultra high definition makes the image more comfortable. It is best to install in church, home, live broadcasting as its mini size.
Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days

Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea

FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days

Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
