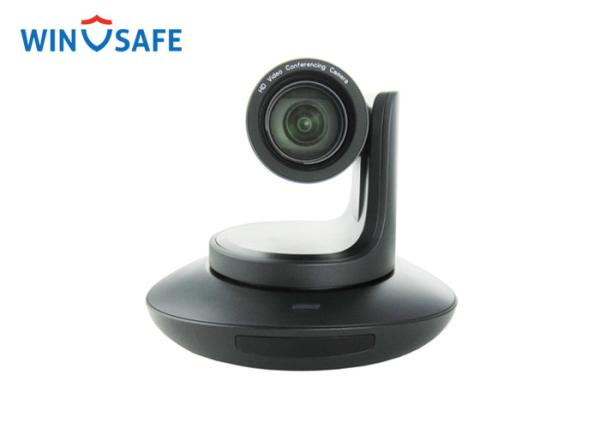

Hospital / Church / Auditorium USB2.0 PTZ Video Conference Camera with 12X Optical Zoom
Hospital / Church / Auditorium USB2.0 PTZ Video Conference Camera with 12X Optical Zoom
Hospital / Church / Auditorium USB2.0 PTZ Video Conference Camera with 12X Optical Zoom
Hospital / Church / Auditorium USB2.0 PTZ Video Conference Camera with 12X Optical Zoom
Specifications
Brand Name :
WINSAFE
Model Number :
UHV-12X-U2S
Certification :
CE/FCC
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Neutral Packing
Video Port :
USB2.0
View Angle :
6.3°(wide) - 72.5°(tele)
Control Port :
RS232/RS485/USB3.0
Preset Number :
128
Zoom :
12x optical zoom
Sensor :
HD CMOS Sensor
Dimension :
220 x 173 x 117(mm)
Color :
Grey and Black
Warranty :
2 years
Lead Time :
7 work day
Description

Hospital / Church / Auditorium USB2.0 PTZ Video Conference Camera with 12X Optical Zoom

Specification

Model No. UHV-12X-U2S
Sensor 1/2.8 inch high quality, 5MP HD CMOS Sensor
Video System 1920x1080p30/25,1280x720/60/50/30/25.
Zoom 12x optical zoom + 2x digital zoom
View Angle 6.3°(wide) - 72.5°(tele)
Focal Length f=3.92(wide) - 47.32mm(tele)
Minimum Lux 0.1Lux
White Balance Auto/Manual
Focus Auto/Manual
Iris Auto/Manual
Electronic Shutter Auto/Manual
Black Light Compensation ON/OFF
SNR More than 50dB
Anti Flicker 50Hz/60Hz/OFF
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 30° - + 90°
Pan Rotation Speed 0° - 120° /s
Tilt Rotation Speed 0° - 80° /s
Preset 128 via RS232 output, 10 via remote controller
Control Port RS232(Sony Visca), USB2.0(UVC1.5 Protocol0
Video Port USB2.0(MJPG format)
Power DC12V
OSD Menu English/Chinese
Dimension(W x H x W) 220mm x 173mm x 117mm
Package 320mm x 300mm x 310mm
Net Weight 1.25KG(2.8LBS)

Advantages

※ Ultra crystal video quality: with Ambarella DSP 1/2.8 5MP Sensor
and high quality 12x lens
※ Fast switching between different video formats: less than 1 second
※ Fast and accurate focus performance
※ Easy firmware upgrade: no need to open the camera housing
※ With powerful functional remote controller
※ FECC(Far and camera control) feature
※ Multi language OSD menu: support English, Chines, Russia, Spanish
※ 2 years warranty time

Features

※ USB 2.0 high speed output
※ Zoom: 12X optical Zoom +2X Digital zoom
※ 1920x1080p 30fps high resolution
※ 72.5° field of view
※ Ultra smooth PTZ mechanism
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ WDR, 3D-noise reduction function
※ Image flip function support inverted installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls

Hospital / Church / Auditorium USB2.0 PTZ Video Conference Camera with 12X Optical Zoom

Hospital / Church / Auditorium USB2.0 PTZ Video Conference Camera with 12X Optical Zoom

Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days

Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea

FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days


Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factor
