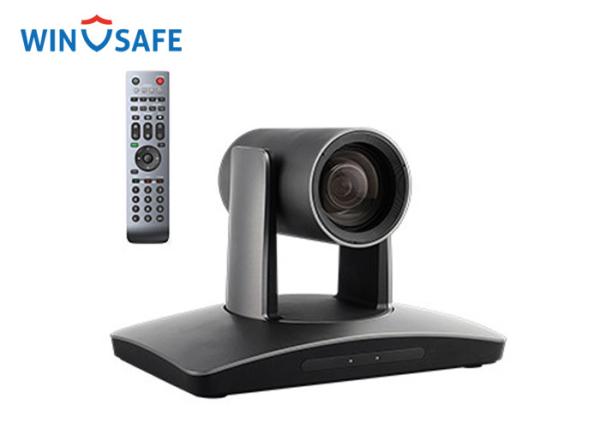

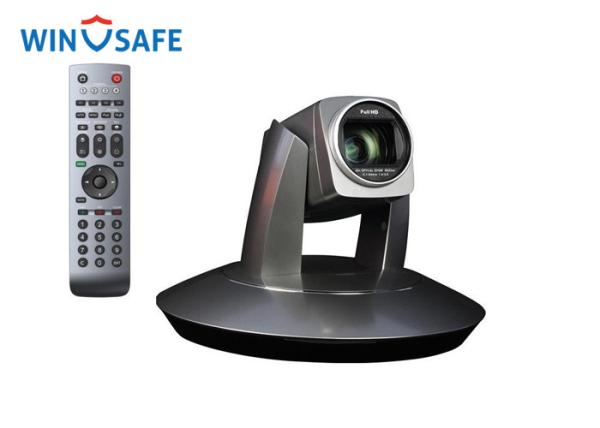

IP HD SDI 1080P 20X Optical Zoom DVI-I PTZ Video Conference Equipment
IP HD SDI 1080P 20X Optical Zoom DVI-I PTZ Video Conference Equipment
IP HD SDI 1080P 20X Optical Zoom DVI-I PTZ Video Conference Equipment
IP HD SDI 1080P 20X Optical Zoom DVI-I PTZ Video Conference Equipment
Specifications
Brand Name :
WINSAFE
Model Number :
AMC-E200N
Certification :
CE,FCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
Neutral Packing
Image Sensor :
1/2.8" Exmor CMOS
Resolution :
2.14MP
Focal :
f=3.9mm-46.8mm
IRIS :
F1.6-F2.8
Optical Zoom :
12X
Digital Zoom :
12X
BLC :
Yes
WDR :
Yes
Description

IP HD SDI 1080P 20X Optical Zoom DVI-I PTZ Video Conference Equipment

Features

※ H.265 video compression,dual stream

※ Compatible with ONVIF,RTSP.RTMP protocols

※ 72.5°FOV,12X Optacal zoom,12X digital zoom

※ With OSD menu,support image flip

※ Come with IR remote comtroller

※ Support standard VISCA & Pelco communication protocols

※ RS232IN/IR RS232OUT/RS485 control interface,support daisy chain,

※ Special mechanical PTZ driving system,ensure precise positioning

Technical Specification

Model No. AMC-E200N
Image Sensor 1/2.8" Exmor CMOS, 2.14MP
Video Standard(HD)

1080p/60,1080/30,1080i/60,720p/60,720p/30,1080p/50,1080p/25,1080i/50,720p/50,

720p/25
Focal f = .3.9mm -46.8mm
IRIS F1.6 - F2.8
Zoom Optical: 12X, Digital: 12X
Field of View 72.5° - 6.3°
Focus Auto, Manual, PTZ Trigger AF, One push
Min.Illumination 0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed 1/1 - 1/10,000s
AGC Auto/Manual
White Balance Auto, Indoor, Outdoor, One push, Manual, Automatic tracking, Sodium, Fluorescent
AE Control Auto, Manual, Shutter Priority, Iris Priority,Intelligence
BLC Yes
WDR Yes
Noise Reduction 2D/3D
PTZ
Pan Range -170° - +170°
Tilt Range -30° - +90°
Pan Speed 0.1° - +120°/s
Tilt Speed 0.1° - +80°/s
Preset Number 256
OSD Yes
Image Flip Yes
Network
Max,Image Size 1920x1080 @60fps
Frame Rate HD: 50Hz: 50fps(1920x1080) 60Hz:60fps(1920x1080)
Video Compression H.265,H.264
Audio Compression AAC
Protocol HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF
Dual Stream Support
Simultaneous Users up to 10 users
Interface
HD Video Output Interface DVI-D,HD-SDI
Control Interface RS-232IN/IR, RS-232OUT/RS-485
Ethernet RJ45,100M
General
Control Protocol VISCA and Support Daisy Chain, PELCO-D, PELCO-P
Address 0 - 63
Power Supply DC12V
Working Temp 0°C - +40°C
Storage Temp -20°C - +60°C
Dimension 243mm x 145mm x 163mm
Weight 1.2KG
Color Grey

Application
HD PTZ Video Coneference Camera are good used on video conference system, Telemedicine, Education Recordered, Church etc.
Dimensional Drawing

IP HD SDI 1080P 20X Optical Zoom DVI-I PTZ Video Conference Equipment

IP HD SDI 1080P 20X Optical Zoom DVI-I PTZ Video Conference Equipment

Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days

Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea

FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days

Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
