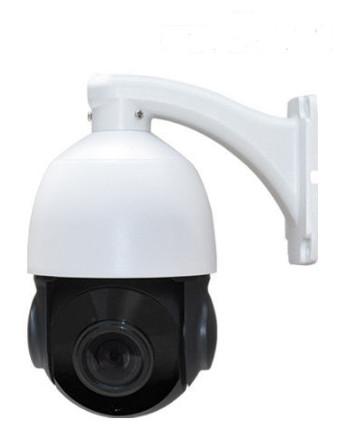

4 Inch Small 960P IP PTZ Camera Waterproof 20W Precision Motor Driven
4 Inch Small 960P IP PTZ Camera Waterproof 20W Precision Motor Driven
Specifications
Brand Name :
WINSAFE
Model Number :
WS-53AIRW/P-200
Certification :
CE,FCC
Place of Origin :
CHINA
MOQ :
5
Payment Terms :
T/T, Western Union
Supply Ability :
3000pcs/Month
Delivery Time :
5-8 work days
Packaging Details :
Neutral packing
Resolution :
2.0MP
WDR :
Digital WDR
DNR :
3DNR
Power Supply :
DC12V
Power Consumption :
20W
Weight :
2.16kg
Optical Zoom :
10X
Iris Value :
F1.6-F1.8
Description

4" Inch Small 960P IP PTZ Camera Waterproof 20W Precision Motor Driven

Poduction Introduction

1) Precision motor-driven, keen responsive, smoothly operation, the precision deviation less than 0.1 degree, the image does not have any vibration under any speed;
2) 2.0MP 1/3” CMOS, 10X optical zoom;
3) Support ONVIF protocol;
4) Support TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP protocol;
5) Strong lightning protection, anti-surge function;
6) Outside weather-proof level up to IP66;

Feature

1) 6PCS high-power infrared light, turn divided into two groups, no flashlight effect, IR distance 60m.
2) 360°endless pan range and 0°- 90°tilt range, support auto-flip, non-surveillance blind area;
3) Pan speed is 0.1°～200°/s and tilt speed is 3.5°～30°/s;
4) Support 220 preset; 8 patrols, each patrol can contain up to 32 presets; support 4 pattern, can totally record up to 10 minus. Support A,B line scanning;
5) Support proportional zoom function, rotation speed can be adjusted automatically according to zoom;
6) Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity (contain the idling condition after the power supply has been turn on)

Technical Specification

Model No. WS-53AIRW/P-200
PTZ parameter IR distance 60m
Pan range &speed 360°endless pan range and speed 0.1°-200°/S
Tilt range & speed 0°- 90°tilt range, auto flip, speed 3.5°- 30°/S
Video parameter Image sensor 1/2.7" Ex-view 2.0MP Aptina CMOS OV2715
Resolution Main stream: (1280×960,1280×720,720×576,640×480)
Sub stream: (640×480,352×288,320×240,176×144)
Low lux 0.1Lux(color mode),0.01Lux(black mode);0 Lux(IR night on)
Electronic shutter 1/2 ～ 1/20,000s, support slow shutter
Coding parameter Video compression Adopt H.264High profile/M-JPEG double stream, three stream output(2 input H.264+1 ouput MJPEG);
Stream Rate 256Kbps～10000Kbps(main stream),32Kbps～2000Kbps(sub stream)
Frame rate Max 30fps(1920 x 1080)
Lens spec Focal length 5.35～51mm
Optical zoom 10X
Iris value F1.6~F1.8
Angle of view 68°～6.7° (wide angel-telescope)
Function WDR Support digital WDR.
Mobile remote Support android, IOS smart phone remote control(for optional)
Digital noise ratio Support DNR,3DNR
White balance auto,outdoor,indoor,lamp mode,manual
3D positioning Support click on the center,select and amplify
compatibility Support Hikvision,Dahua,Jufeng CMS,UC2 etc software platform joint in,compatible with many brands NVR connection.
Day and night transfer auto/manual
Port Network interface Built-in RJ45 port,support 10M/100M
Power supply DC 12V/2A
Others Power Consumption 20(MAX)
Working Temperature and Humidity -20℃～+60℃,≤90%RH(frostless)
Protection grade TVS3000V lightning protection, surge protection and voltage transient protection, weather proof: IP66
Package size(mm) 225*245*230
Weight (Kg) 2.16KG(with zoom module)

Application

It can be widely used in wide range enviroments which required monitoring, e.g river, forest, highroad, railway, airport, port, oil field, sentry, piazza, park, scenic zone, street, station. Venue, parcel surrounding, and etc.

Structure Dimension (mm)

4
