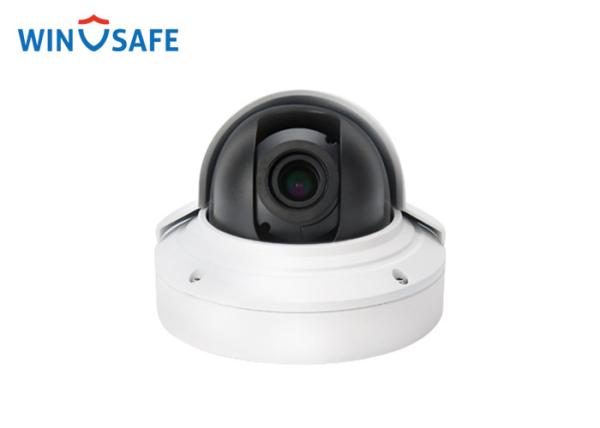

Digital Weatherproof 4MP Full HD IP Camera H.265 High Progressive IP66
Digital Weatherproof 4MP Full HD IP Camera H.265 High Progressive IP66
Digital Weatherproof 4MP Full HD IP Camera H.265 High Progressive IP66
Digital Weatherproof 4MP Full HD IP Camera H.265 High Progressive IP66
Digital Weatherproof 4MP Full HD IP Camera H.265 High Progressive IP66
Digital Weatherproof 4MP Full HD IP Camera H.265 High Progressive IP66
Specifications
Brand Name :
WINSAFE
Model Number :
WS-IP330
Certification :
EC,FCC
Place of Origin :
CHINA
MOQ :
20
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs/month
Delivery Time :
8-10 work days
Power Supply :
DC12V / AC24V
Lens :
2.8-12mm
ONVIF :
Yes
POE :
Optional
SOS :
Hi3516D
Image Sensor :
1/3' Progressive Scan CMOS
Effective Pixel :
1920(H) x 1080(V)
Weight :
962g
Description

Digital Weatherproof 4MP Full HD IP Camera H.265 High Progressive IP66

Features

※ 4.0 Megapixel, 30fps@2032*1920
※ 2.8-12mm(Motorized), 0.01Lux,110dB DWDR
※ Support ONVIF Profile S, FTP, RTSP, UPnP ETC.
※ Support Dual-Stream, Mobile Surveillance, One Push, Heartbeat Mechanism,3D-DNR
※ Defogging,D-WDR, Lens Correction, Corridor Monitoring etc.
※ Built-in MIC, Audio I/O, Dual Alarm in, Single Alarm out, SD card slot(128G), RS485
※ RJ45, 12V/AC 24V,POE optional
※ Vandal-proof, Weather-proof, 1K10

Technical Specification

Model No. WS-IP330
Hardware
SOS Hi3516D
Image Sensor 1/3" Progressive Scan CMOS
Effective Pixels 1920(H) x 1080(V)
Interface
Optical Lens Interface ∮14
Iris Fixed Iris
Focal Length 2.8-12mm(Motorized)
Audio Talkback 1ch MIC external access,3.5mm AV interface
Audio Output 1ch speaker output, 3.5mm AV interface
Network Port Lan 10/100M BASE-TX, RJ-45 connector
RS485 1*RS485 interface
Alarm I/O 2ch alarm input, 1ch alarm output
Micro SD 128G
Audio & Video encoding
Video Compression H.264/H.265/MJPEG
H.265 encoding: Main Profile
H.264 encoding: Baseline Profile/Main Profile
Resolution Main Stream 2032*1920/1280*720; 1-30fps(adjustable)
Sub Stream 704*576/640*480/640*352/320*240;1-30fps(adjustable)
Video Bitrate 30Kbps - 16Mbps, Suports CBR/VBR
OSD Settings Support channel name, data and video stream overlay
OSD location is adjustable
Privacy Mask 4 configurable regions
Image Orientation Image flip and mirror
Auto Image Control Functions Auto Exposure Control(AEC);Auto White Blance(AWB); Auto Gain Control(AGC)
Image Controls Saturation, Brightness, Contract, Sharpness, Hue, Gamma ,D-WDR
Others Anti Fogging/Anti Trembling/IR Detection/IRIS/LSC
Audio Compression G.711A/G.711U/G.726
Two Way Audio Support
Data transmission and storage
Data storage Video and Image
Recording Auto recording and manual recording(motion & sensor detection triggered recording, scheduled recording)
Alarm output FTP, E-mail
Wireless protocols(-W) ---------------------
ONVIF Protocols PROFILE S
Remote View PC IE 6.0 above, Firefox, Google etc.
Mobile Phone ----------------------
User Access Maximum 5 users
General Parameters
Environmental Casing Aluminum Alloy Housing, Indoor and Outdoor Application
Installation Ceiling Mounted & Wall Mounted
Operating Temperature -10°C - 50°C
Operating Humidity 0% - 85%RH
Power DC12V ± 10%(AC24V ± 10%)
POE Support
Power Consumption <3.5W
Dimension Φ161mmxH115mm
Weight 962g

Digital Weatherproof 4MP Full HD IP Camera H.265 High Progressive IP66

Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days

Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea

FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days


Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
