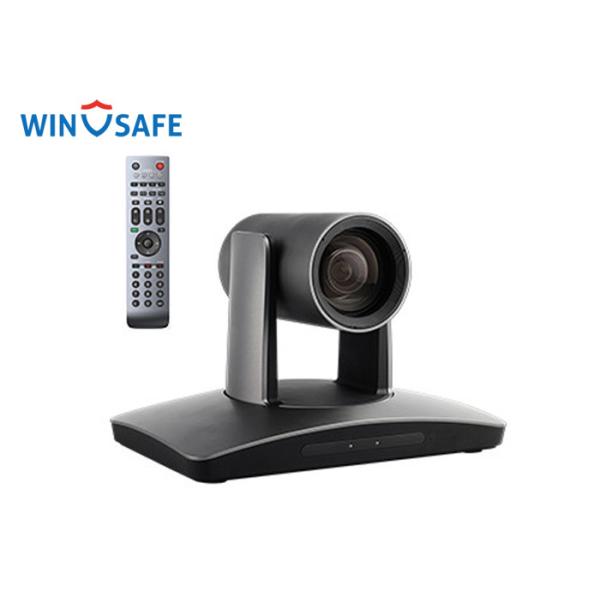

2.14MP HD SDI PTZ Video Conferencing Camera , Wide Angle IP Camera For Video Conferencing
2.14MP HD SDI PTZ Video Conferencing Camera , Wide Angle IP Camera For Video Conferencing
Specifications
Brand Name :
WINSAFE
Model Number :
AMC-E220N
Certification :
CE,FCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
Neutral Packing
Field of View :
72.5°-6.3°
Focal :
f=3.9mm - 46.8mm
BLC :
Yes
Optical Zoom :
12X
Digital Zoom :
12X
WDR :
Yes
Noise Reduction :
2D/3D
Image Sensor :
1/2.8" Exmor CMOS, 2.14MP
Description

2.14MP HD SDI PTZ Video Conferencing Camera , Wide Angle IP Camera For Video Conferencing

Features

※ H.265 video compression,dual stream

※ Compatible with ONVIF,RTSP.RTMP protocols

※ 2.14MP,1/2.8" CMOS

※ With OSD menu,support image flip

※ Come with IR remote comtroller

※ Support standard VISCA & Pelco communication protocols

※ RS232IN/IR RS232OUT/RS485 control interface,support daisy chain,

※ Special mechanical PTZ driving system,ensure precise positioning

Technical Specification

Model No. AMC-E220N
Image Sensor 1/2.8" Exmor CMOS, 2.14MP
Video Standard(HD) 1080p60,1080p/30,1080i/60,720p/60,720p/30
Focal f = 4.7mm - 94mm
IRIS F1.6 - F3.5
Zoom Optical: 20X, Digital: 12X
Field of View 59.5° - 2.9°
Focus Auto, Manual, PTZ Trigger AF, One push
Min.Illumination 0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed 1/1 - 1/10,000s
AGC Auto/Manual
White Balance Auto, Indoor, Outdoor, One push, Manual, Manual, Auto Track
AE Control Auto, Manual, Shutter Priority, Iris Priority
S/N Ratio Above 50dB
PTZ
Pan Range -170° - +170°
Tilt Range -30° - +90°
Pan Speed 0.1° - +120°/s
Tilt Speed 0.1° - +80°/s
Preset Number 256
OSD Yes
Image Flip Yes
Network
Max,Image Size 1920x1080
Frame Rate HD:50Hz:50fps(1920x1080) 60Hz:60fps(1920x1080)
Video Compression H.265,H.264
Audio Compression AAC
Protocol HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF
Dual Stream Support
Simultaneous Users up to 10 users
Interface
HD Video Output Interface DVI-D,HD-SDI
Control Interface RS-232IN/IR, RS-232OUT/RS-485
Ethernet RJ45,100M
General
Control Protocol VISCA and Support Daisy Chain, PELCO-D, PELCO-P
Address 0 - 63
Power Supply DC12V
Working Temp 0°C - +40°C
Storage Temp -20°C - +60°C
Dimension 243mm x 145mm x 163mm
Weight 1.2KG
Color Grey
l
Application
HD PTZ Video Coneference Camera are good used on video conference system, Telemedicine, Education Recordered, Church etc.
Dimensional Drawing

2.14MP HD SDI PTZ Video Conferencing Camera , Wide Angle IP Camera For Video Conferencing

Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days

Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
