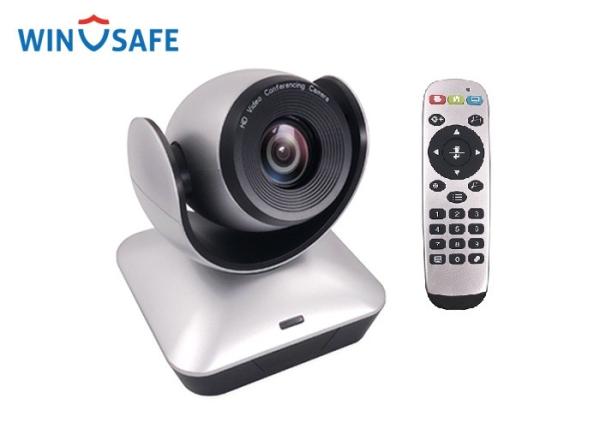

USB 2.0 Skype PTZ Video Conference Camera With Wide Agnle 1080P 10X Zoom For Meeting Room Solution
USB 2.0 Skype PTZ Video Conference Camera With Wide Agnle 1080P 10X Zoom For Meeting Room Solution
USB 2.0 Skype PTZ Video Conference Camera With Wide Agnle 1080P 10X Zoom For Meeting Room Solution
USB 2.0 Skype PTZ Video Conference Camera With Wide Agnle 1080P 10X Zoom For Meeting Room Solution
Specifications
Brand Name :
WINSAFE
Model Number :
UHV-10X-U2-2
Certification :
CE/FCC
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Neutral Packing
View Angle :
72.5 degree
Opitcal Zoom :
10X
Interface :
USB2.0
Remoter Controller :
Yes
Power Supply :
DC12V
Weight :
0.92kg
Demision :
148mm x 132mm x 161mm
Digital Zoom :
2X
Description

USB 2.0 Skype PTZ Video Conference Camera With Wide Agnle 1080P 10X Zoom For Meeting Room Solution

RS232/RS485/UVC control

Standard Sony Visca and UVC1.5 protocol, users can control the camera via both RS232 (RS485) and USB port.
128 presets through RS232 control and 10 presets by remote controller.
Field upgradable for firmware via RS232&USB port easily.

USB2.0 Output, Flexible Compatibility

USB2.0 video streaming output, compatible with most leading video conferencing software and and hardware terminal, Zoom.us, Skype4business, Viydo, Bluejeans, Polycom, Lifesize, Webex, Google Hangout, Adobe ect, plug&play at different operation system Windows, Mac, Android and Linux.
And FECC (far-end camera control) supported via the software.

Advantages

※ Ultra crystal video quality: with Ambarella DSP 1/2.8 inch SONY sensor
and high quality 10x lens
※ Fast and accurate focus performance
※ Easy firmware upgrade: no need to open the camera housing
※ Compatible with the majority of video conferencing software(UVC1.5
protocol standard)
※ Powerful functional remote controller
※ Multi language OSD menu: support English, Chines, Russia, Spanish
※ 2 years warranty time

Features

※ USB 2.0 high speed output
※ Zoom: 10X optical Zoom +12X Digital zoom
※ 1920x1080p 30fps high resolution
※ 62.5° field of view
※ Ultra smooth PTZ mechanism
※ Accurate PT motor control
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ WDR, 3D-noise reduction function
※ Image flip function support inverted installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls

Specification

Model No. UHV-10X-U2
Sensor 1/2.8 inch high quality, 5MP HD CMOS Sensor
Video System 1080p 30fps(MJPG), backward compatible; 640x480 30fps(YUY2)
Zoom 10x optical zoom + 12x digital zoom
View Angle 6.3°(wide) - 62.5°(tele)
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 30° - + 90°
Pan Rotation Speed 0° - 120° /s
Tilt Rotation Speed 0° - 80° /s
Preset 128
Control Port RS232/RS485/USB2.0
Video Port USB2.0
SNR More than 50dB
Focal Length f=4.7(wide) - 47mm(tele)
Minimum Lux 0.1Lux
White Balance Auto/Manual
Focus Auto/Manual
Iris Auto/Manual
Electronic Shutter Auto/Manual
BLC Auto/Manual
Input Voltage DC12V
Dimension(W x H x W) 148mm x 132mm x 161mm
Net Weight

0.9KG(2LBS)

USB 2.0 Skype PTZ Video Conference Camera With Wide Agnle 1080P 10X Zoom For Meeting Room Solution

Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days

Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea

FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days


Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
