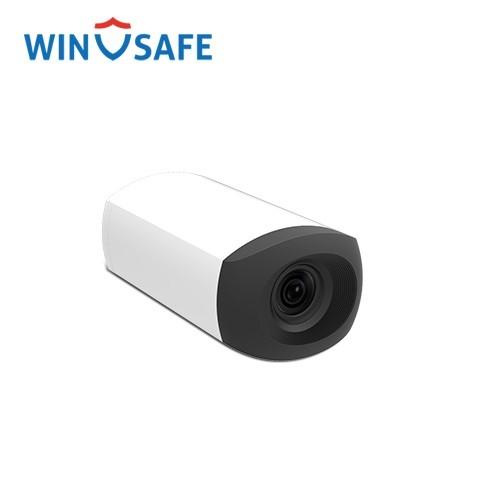

H.264 IP SDI ZC5 Integrated 1080p Ptz Security Camera 3X / 5X Optical Zoom
H.264 IP SDI ZC5 Integrated 1080p Ptz Security Camera 3X / 5X Optical Zoom
Specifications
Brand Name :
WISNAFE
Model Number :
ZC5-2814N
Certification :
CE,FCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4000pcs/month
Delivery Time :
3-5 work days
Packaging Details :
Neutral Packing
Optical Zoom :
5X
Focal :
2.8 - 14mm
Effective Pixel :
1920 x 1080
Field of View :
98 degree to 40 degree
Control Button :
5
Video Compression :
H.264
Video Interface :
3G-SDI
Protocol :
Visca
Description

H.264 IP SDI ZC5 Integrated 1080p Ptz Security Camera 3X / 5X Optical Zoom


Features

※ 1/3' HDCMOS, 2.14MP
※ Up to 5x optical zoom
※ Support various control modes,including network, remote control, RS232 & RS485 control, and local button control
※ Support SDI and RJ45 output interface, 1080p images output simultaneously
※ Support H.264 video compression, support up to 1080p30, and with low network latency
※ Support 2 audio inputs, with AAC audio compression
※ Compatible with HTTP, RTSP, RTMP, ONVIF protocol

※ Provide totally open SDK for customers to meet the demand of customizing


Technical Specification

Model No. ZC5-A2814N ZC5-A0722N
Camera
Image Sensor 1/2.8" Exmor CMOS, 2.14MP
Focal 2.8mm - 14mm 7mm 22mm
Effective Pixel 1920 x 1080
Zoom 5X 3X
Field of View 98° - 40° 33° - 15°
Focus Auto, Manual
Min.Illumination 0.5Lux
White Balance Auto
Exposure Auto
Control Buttons 5
Video Output 1080p30 / 1080p25 / 720p60 / 720p50
Preset Number 256
Network
Max,Image Size 1920x1080 @ 30fps
Video Compression H.264
Audio Compression AAC
Protocol HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF
Dual Stream Support
Simultaneous Users up to 10 users
Ethernet Interface 100M(RJ45)
Interface
Video Interface 3G-SDI
Audio Interface 3.5mm Audio Interface(2 Line in / 1 Line out)
Control Interface RS-232,RS-485
General
Protocol VISCA
Power Supply DC9V - 12V
Power Consumption ＜5W
Working Temp - 40°C - +40°C
Storage Temp -20°C - +60°C
Dimension 149mm x 76mm x 58mm
Weight 0.42KG


Application

Panoraomic scene is suitable for livebroadcasting and monitoring in the classroom, especially for those who don't care real-time network play. What's more, its high effective pixels and excellent image output are enough for recording. It's better to choose this one as recording tool in the church or in small area, like huddele room.

H.264 IP SDI ZC5 Integrated 1080p Ptz Security Camera 3X / 5X Optical Zoom
Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days

Quality warranty


2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ


MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days


Why choose us


Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
