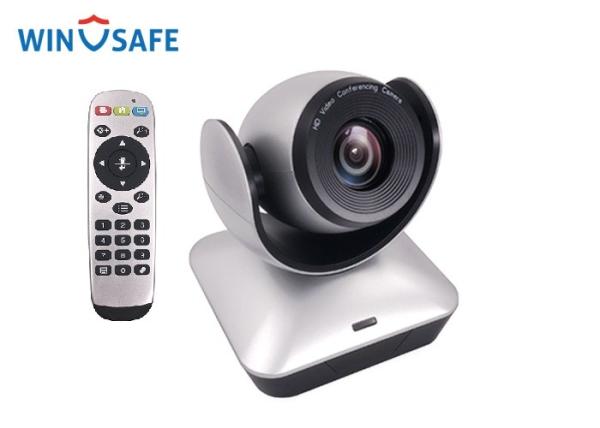

USB 3.0 PTZ Security Camera 5X Optical Zoom 12X Digital Zoom FOV 84°
USB 3.0 PTZ Security Camera 5X Optical Zoom 12X Digital Zoom FOV 84°
USB 3.0 PTZ Security Camera 5X Optical Zoom 12X Digital Zoom FOV 84°
USB 3.0 PTZ Security Camera 5X Optical Zoom 12X Digital Zoom FOV 84°
Specifications
Brand Name :
WINSAFE
Model Number :
UHV-5X-U3
Certification :
CE,FCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000pcs/month
Delivery Time :
3-5 work days
Packaging Details :
Netural Packing
Power Supply :
USB 3.0
Optical Zoom :
5X
Resolution :
1920 x 1080
Video Interface :
USB 3.0
Contorl Interface :
RS232 IN
Sensor :
5MP
View Angle :
85°
Net Weight :
0.8kg
Description

USB 3.0 PTZ Security Camera 5X Optical Zoom 12X Digital Zoom FOV 84°

A totally plug&play, one single USB3.0 cable feeding video, control and power. With 5x, 85° FOV lens, perfect for huddle room video conferencing solution

Adopted advanced ISP, 1/2.8 inch SONY sensor

Provide 1920x1080p30(YUY2) high definition, crystal clear image without noise but with realistic color, fantastic depth of filed and full details.
WDR, 3DNR, BLC, Anti-flicker adjustable via OSD menu for different environment.

5xoptical zoom+ 12x digital zoom, 85° FOV

Using multi-element 5x lossless optical zoom lens, with 85 degree super wide angle FOV, along with 340degree pan&120degree tilt rotation at adjustable speed and smooth movement, fast&accurate focus to capture any view in conferencing space.

Totally Plug&Play

Video, control and power over single USB3.0 cable;
Standard UVC1.5 protocol, works with Windows, Mac OS, Android, Linux

Flexible Compatibility

Compatible with most leading video conferencing software and platform, Zoom.us, Skype4business, Viydo, Bluejeans, Polycom, Lifesize, Webex, Google Hangout, Adobe ect, at different operation system Windows, Mac, Android and Linux.
And FECC (far-end camera control) supported via the software.

RS232/RS485/UVC control.

Standard Sony Visca and UVC1.5 protocol, users can control the camera via both RS232 (RS485) and USB port.
128 presets through RS232 control and 10 presets by remote controller.
Field upgradable for firmware via RS232&USB port easily.

Multiple Installation Way

Support multiple mount way: available to install on desk, monitor, tripod or up-side down in-ceiling

Feature

※ Ultra crystal video quality: with Ambarella DSP 1/2.8 inch SONY sensor and high quality 10x lens
※ 1920 x 108030(YUY2) high definition
※ 5X optical zoom + 12x digital zoom, 85°field of viewing
※ WDR, 3DNR, BLC, Anti-flicker adjustable via OSD menu for different environment
※ Totally Plug & Play: video, control and power over single USB 3.0 cable
※ USB 3.0 YUY2 video format, works with Windows, Mac OS, Android, Linux
※ Standard UVC1.5 protocol, seamlessly compatible with most VC application
※ Ultra smooth PTZ mechanism, accurate PT motor control
※ Effective RS232/485 series control, UVC control(via USB3.0 port)
※ Flexible mounting: fit for monitor/PC, tripod and on desk mounting

Specification

Model No. UHV-5X-U3
Sensor 1/2.8 inch high quality, 5MP HD CMOS Sensor
Video System USB 3.0 mode: 1920 x 1080p@30/25, 1280x720p@60/50/25
USB 2.0 mode: 1280 x 720@25, 960x540@30, 704x576@30,360x640@30, 352x288@30
Zoom 5x optical zoom + 12x digital zoom
View Angle 85°
Focal Length f = 3.1 - 15.5mm
Minimum Lux 0.1Lux
S/N Rate Above 50dB
White Balance Auto/Manual/Indor/Outdoor
Electronic Shutter Auto/Manual
Anti Flicker 50Hz/60Hz/OFF
BLC ON/OFF
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 30° - + 90°
Pan Rotation Speed 0° - 120° /s
Tilt Rotation Speed 0° - 80° /s
Preset 128
Control Port USB3.0/RS232
Video Port USB3.0
Input Voltage DC5V( USB 3.0 Port)
Net Weight 0.8KG

Application

USB 3.0 PTZ Security Camera 5X Optical Zoom 12X Digital Zoom FOV 84°
