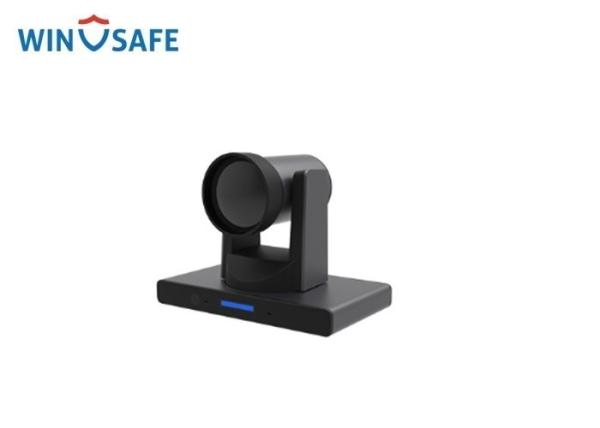

IP 4K HD 12X HDMI 3G-SDI PTZ Video Conference Camera
IP 4K HD 12X HDMI 3G-SDI PTZ Video Conference Camera
IP 4K HD 12X HDMI 3G-SDI PTZ Video Conference Camera
IP 4K HD 12X HDMI 3G-SDI PTZ Video Conference Camera
Specifications
Brand Name :
WINSAFE
Model Number :
AMC-H1202
Certification :
CE, FCC, RoHs
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
10000pcs
Delivery Time :
5-8 work days
Packaging Details :
Netrual Packing
Optical Zoom :
12X
Digital Zoom :
12X
Field of View :
82.6°
Max Resolution :
4K@30fps
Pan Rotation Angle :
- 170° - +170°
Tilt Roation Angle :
- 30° - + 90°
Preset Number :
255
HDMI :
Support
Description

IP 4K HD 12X HDMI& 3G-SDI& USB3.0 PTZ Video Conference Camera With 64G TF Card

Feature

※ Adopts the latest high quality CMOS sensor, up to 3840 x 2160@60fps resolution
※ 4K wide angle lens, 12x optical zoom, maximum 82° FOV
※ Advanced 2D/3D noise reduction algorithm, excellent noise reduction performance
※ Built-in different video analysis algorithm to fit different applications
※ H.265, H.264 video compression
※ Outputs 4K uncompressed digital video
※ HDMI, 3G-SDI, USB3.0,Ethernet and optional HD Base T outputs
※ Support standard UVC protocol
※ Built-in 2.4G/5G WIFI
※ Dual stream, supports multi-level image quality configuration
※ 1 audio input and 1 audio output
※ TF card supports maximum 64G storage
※ Special mechanical PTZ driving system, ensure precise positioning
※ Has multi control interfaces, support multi control protocols, daisy chain
※ Has an OLED screen to display necessary information
※ Smart AE feature to effectively avoid interference of complicated lights

Dimensions

IP 4K HD 12X HDMI 3G-SDI PTZ Video Conference Camera

Technical Specification

Model No. AMC-H1202 AMC-H1203
Camera
Image Sensor 1/1.8" CMOS 8.41MP
Lens f=4.2mm-50.4mm, F1.8-F2.8
Optical Zoom 12X
Digital Zoom 12X
Field of View 82.6° - 8°
Focus Auto, Manual, PTZ Push, One Push
Shutter Speed 1/25 - 1/10,000s
AGC Auto/Manual
White Balance Auto, Indoor, Outdoor, One Push, Manual, Automatic Tracking
AE Control Auto, Manual,Shutter Priority, Iris Priority
S/N Ratio Above 50dB
DNR 2D / 3D
BLC Yes
WDR Yes
PTZ
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 30° - + 90°
Pan Rotation Speed 0° - 120° /s
Tilt Rotation Speed 0.1° - 80° /s
Preset Number 255
OSD Menu Yes
Image Flip Yes
Video Format
Video Output 4K@30fps, 4K@25fps,
1080P60,1080P50,
1080I60,1080I50.
1080P30,1080P25,
720P60,720P50		 4K@60fps, 4K@50fps,
4K@30fps,4K@25fps,
1080P60,1080P50,1080I60,
1080I50,1080P30,1080P25,
720P60,720P50
Network
Max. Image Size 3840*2160 @ 30fps 3840*2160 @ 60fps
Video Compression H.264/H.265
Audio Compression AAC
Protocol HTTP, RTSP, RTMP, RTP, TCP,UDP, ONVIF
Dual Stream Support
USB
Max. Image Size 3840*2160 @ 30fps
Video Compression H.264,H.265, MJPEG
USB Audio Support
UVC Protocol UVC1.0 - UVC1.5
UVC PTZ Support
Interface
Video Output Interface HDMI, SDI, HDBaseT(optional)
Audio Input Interface Line in
Audio Output Interface Line out
Ethernet Interface 10/100/1000M, POE
USB Interface 2.4G/5G WIFI
Control Interface RS-RS232IN, RS-232OUT, RS-485
TF Card Max. 64G
General
Power Supply DC12V
Power Consumption Below 20W
Working Temperature -10°C - +40°C
Storage Temperature -20°C - +60°C
Dimension(W x H x L) 251mm x 159mm x 195mm
Net Weight 1.5kg
Color Grey

Accessory

IP 4K HD 12X HDMI 3G-SDI PTZ Video Conference Camera
