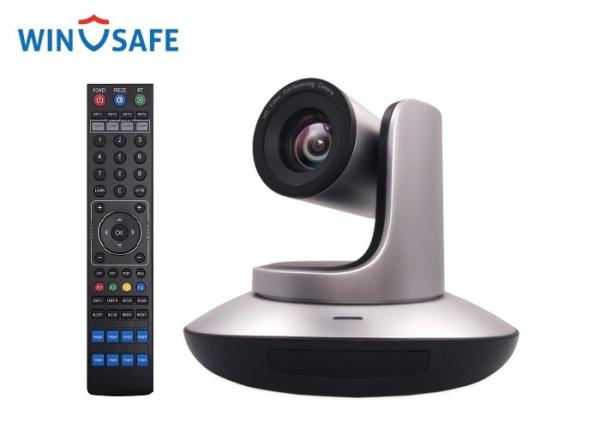

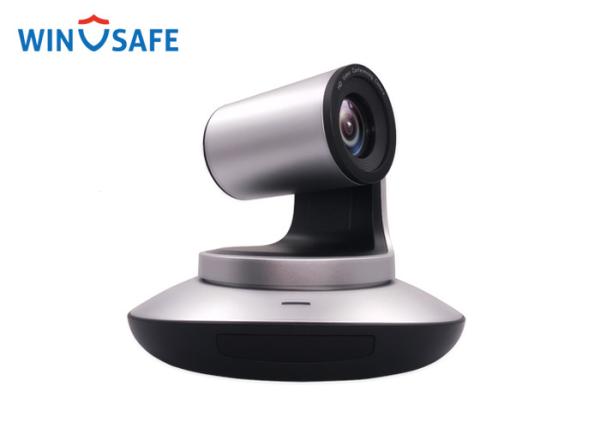

20X USB Video Conference Camera Full HD PTZ POE Video Camera
20X USB Video Conference Camera Full HD PTZ POE Video Camera
20X USB Video Conference Camera Full HD PTZ POE Video Camera
20X USB Video Conference Camera Full HD PTZ POE Video Camera
20X USB Video Conference Camera Full HD PTZ POE Video Camera
20X USB Video Conference Camera Full HD PTZ POE Video Camera
Specifications
Brand Name :
WINSAFE
Model Number :
UHV-20X-IP-S(FPGA)
Certification :
CE, FCC
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
L/C, T/T, Western Union, Paypal
Delivery Time :
5-8 work days
Packaging Details :
Neutral Packing
HDMI Output :
Support
SDI Output :
Support
IP Output :
Support
USB3.0 Output :
Support
Optical Zoom :
20X
Digital Zoom :
2X
Network Speed :
1000 Meters
POE :
Support
Description

20X USB Video Conference Camera Full HD PTZ POE Video Camera

Advantages

※ Adopts most advanced DSP,1/2.8" 5MP Sensor
※ Good quality optical lens inside:20x optical zoom, 61 degree field of view
※ 1080p video over IP, and support H.264,H.265 encoding
※ Support POE: easy to use one RJ45 cable to get video, control and power supply
※ IP, HDMI,SDI, USB outputs, fit for different application
※ Special Focusing Algorithm: fast and precise focusing performance when zooming or moving
※ Standard Sony Visca, Pelco-P, Pleco-D control protocol
※ Supplied with functional IR remote controller,can set IP address via OSD menu

Feature

※ IP,HDMI,SDI and USB outputs simultaneously
※ 20x optical zoom + 2x didigtal zoom
※ Automatic acces to the IP address
※ Smooth PTZ mechanical design, accurate pan tilt motro control
※ WDR, 3D Noise Reductaion feature
※ 128 presets
※ Support RS232/RS485 serial control
※ Image flip function, support upside-down installation
※ Sony visca and Pelco D/P protocol
※ Support daisy chain feature

Technical Specification

Model No. UHV-20X-IP-S(FPGA)
Camera
Sensor 1/2.8 inch, 5Mega Pixel High Quality CMOS sensor
Video System HDMI SDI IP USB3.0

1080p60/59.94/50
/30/29.97/25/24
720p60/59.94
/50/30/29.97/25
1080i60/59.94/50

1080p60/59.94
/50/30/29.97/25/24
720p60/59.94
/50/30/29.97/25
1080i60/59.94/50

Main Steam:
1920x1080p60
Sub Steam:
1280x720,
704x576,640x480,352x288

 1080p60/50/30/25
720p60/50/30/25
USB3.0&USB2.0
1024x576p30
960x540p30
640x360p30
352x288[30
Zoom 20x optical zoom & 2x digital zoom
View Angle 61°(diagonal)
Focal Length f=5.2(near) - 98mm(far)
Preset 10 via remote controller: 128 via serial port; preset precision: 0.1°
Noise Reduction 2D & 3D
SNR Above 50dB
Minimum Lux 0.01Lux
White Balance Auto/Manual/Auto Tracking/One Push/Indoor/Outdoor
Anti Flicker 50Hz/60Hz/OFF
D/N Mode Supported
Gamma Supported
Mirror Image 0.01Lux
IRIS Auto/Manual
Electronic Shutter Auto/Manual
BLC Auto/Manual
Focus Auto/Manual
Mechanisam
Rotation Angle Pan: -170° - +170°; Tilt: -30° - +90°
Rotation Speed Pan:0° - 120° /s; Tilt: 0° - 80°/s
Pan Tilt Flip Supported
Control Port RS232/RS485
Video Port HDMI/RJ45/SDI/USB3.0/USB2.0
SNR 75dB
Encode
Network Speed 1000M
Video Encoding H.264/H.265
Bit Rate Control Variable Bit Rate, Constant Bit Rate
Video Bit Rate 1024Kbps - 30720Kbps
Frames 50HZ: 1fps - 50fps; 60HZ: 1fps - 60fps
IP Protocol TCP/IP, HTTP, RTSP, Onvif DHCP
POE Supported
Input Voltage DC12V,2A
OSD Menu
Language English/Chinese
Dimension(W x H x W) Auto/Manual
Dimension 220mm x 173mm x 190mm
Net Weight 1.25KGS(2.8LBS)
Package 320mm x 300mm x 310mm
Warranty
Basic Warranty 2 Years
