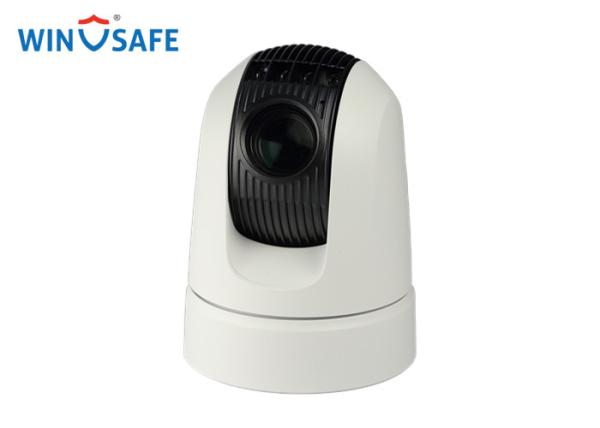

HD-SDI / SD IR Vehicle PTZ Camera 1080p Waterproof IP66 Illumination 0.0008 Lux
HD-SDI / SD IR Vehicle PTZ Camera 1080p Waterproof IP66 Illumination 0.0008 Lux
Specifications
Brand Name :
WINSAFE
Model Number :
AC3-S3002H-IR
Certification :
CE/FCC
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6000PCS/Month
Delivery Time :
5 - 8 Work Days
Packaging Details :
Neutral Packing
Optical Zoom :
30X
DNR :
Support
Materia :
Aluminum PTZ Case
Color :
Black or White
Voltage :
DC10.8 - 28V
View Angle :
59.5°-3.3°
Protocol :
RS-485
Weight :
2.1kg
Description

HD-SDI & SD 1080p Waterproof IP66 IR Vehicle PTZ Camera With Min.Illumination 0.0008 Lux

Features

※ 1/2.8" CMOS, 2.13MP, 30X/20X optical zoom
※ Support CVBS and SDI output
※ Efficient 60M IR distance
※ Wide dynamic range, ICR day/night
※ Digital image stabilization
※ Protection index: IP66
※ Self-adaption of protocol & baud rate
※ 10.8-28V voltage input
※ Auto power-of with low power supply

Technical Specification

Model No.AC3-S2008H-IRAC3-S3002H-IR
Camera
Image Sensor1/2.8" Progressive Scan CMOS, 2.13MP
Active Pixel1920(H) x 1080(V)
Signal System(HD)HD:1080p30 / 1080p25 / 1080i60/ 1080i50 / 720p60 / 720p50 / 720p30 / 720p25
Signal System(SD)PAL / NTSC
Min.IlluminationColor:0.0013Lux, B/W:0.0008Lux
White BalanceAuto
FocusAuto / Manual
ExposureAuto / Manual
S/N RatioNote less than 50 Db
BLCOn / Off
WDROn / Off
Digital Noise Reduction1 - 5Steps/OFF
Digital Image StabilizationNoOn/Off
Day/NightAuto / Manual
PTZ
Optical Zoom20X30X
Zoom12X
Focalf=4.7mm - 94mmf=4.3mm - 129mm
IRISF1.6 to F3.5F1.6 to F4.7
View Angle59.5° (wide) to 3.3° (tele)53.7° (wide) to 2.3° (tele)
PTZ
Pan Range360° Continuous
Pan Speed0.1° - 60°/s, adjustable,Preset Speed:60°/s
Tilt Range- 15 ° - 90° with auto flip
Tilt Speed0.2° - 60°/s, adjustable, Preset Speed:60°/s
Preset Number256
Preset Precision±0.2°
IR Light
IR Wave Length850nm
Range60m
SwitchAuto / Manual
General
OSD LanuageEnglish
Video Interface(HD)HD-SDI
Video Interface(SD)CVBS
Comm. InterfaceRS-485
Comm.ProtocolPELCO-P / PLECO-D(self-adaptive)
Protocol2400bps, 4800bps,9600pbs,19200bps(self-adaptive)
Address0-255
VoltageDC 10.8 - 28V
PowerMin:9W; Max:20W
Working Temperature-35°C - +65°C
IP CodeIP66
DimensionsStandard(Without Damper): Φ136(mm) x 185(mm)
WeightStandard(Without Damper): 2.1(±0.2)kg







HD-SDI / SD IR Vehicle PTZ Camera 1080p Waterproof IP66 Illumination 0.0008 Lux

Our service

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days

Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days
Why choose us
Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
