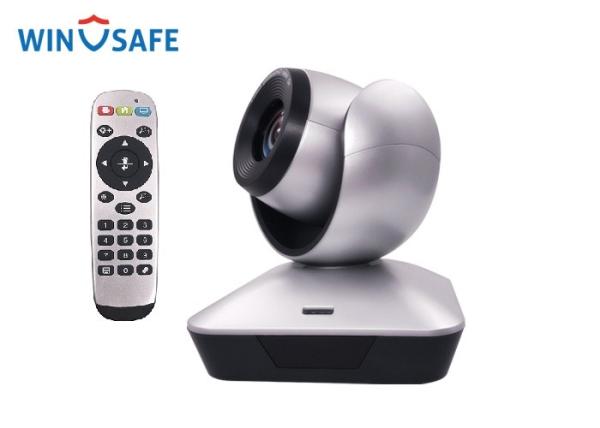

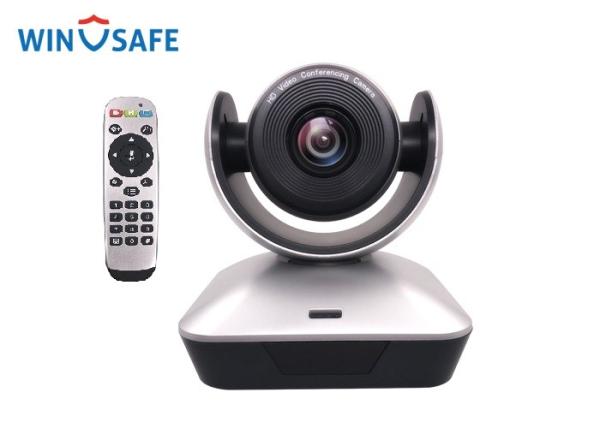

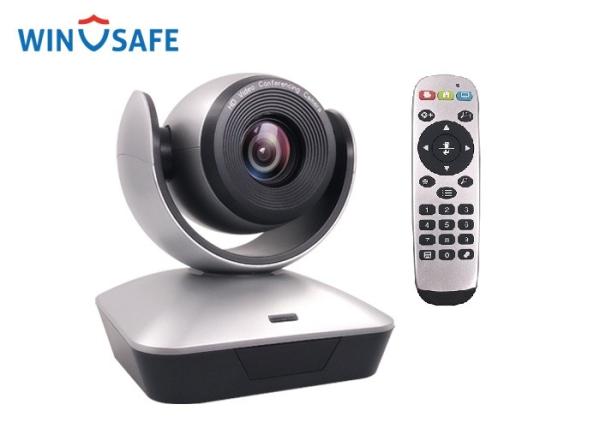

HD 1080P 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station
HD 1080P 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station
HD 1080P 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station
HD 1080P 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station
HD 1080P 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station
HD 1080P 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station
Specifications
Brand Name :
WINASFE
Model Number :
UHV-10X-U2S
Certification :
CE,FCC etc.
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/month
Delivery Time :
3-5 work days
Packaging Details :
Netural Packing
Max Resolution :
1920x1080p60
Sensor :
SONY CMOS Sensor
Optizal Zoom :
10X
Minimum Lux :
0.1Lux
USB2.0 :
Support
Visca Protocol :
Support
OSD Menu :
English/Spanish/Russia/Chinese
Dimension :
148 x 132 x 161(mm)
Description

Small HD 1080P@ 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station

Advantage

※ Ultra crystal video quality: with Ambarella DSP 1/2.8 inch SONY sensor
and high quality 10x lens
※ Fast and accurate focus performance
※ Easy firmware upgrade: no need to open the camera housing
※ Compatible with the majority of video conferencing software(UVC1.5
protocol standard)
※ Powerful functional remote controller
※ Multi language OSD menu: support English, Chines, Russia, Spanish
※ 2 years warranty time

Feature

※ USB 2.0 high speed output
※ Zoom: 10X optical Zoom +12X Digital zoom
※ 1920x1080p 30fps high resolution
※ 62.5° field of view
※ Ultra smooth PTZ mechanism
※ Accurate PT motor control
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ WDR, 3D-noise reduction function
※ Image flip function support inverted installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls

Technical Specification

Model No. UHV-10X-U2S
Sensor 1/2.8 inch high quality, SONY CMOS Sensor
Video System 1920x1080P30/25, 1280X720P30/25
Zoom 10x optical zoom + 12x digital zoom
View Angle 6.43°(wide) - 62.5°(tele)
SNR More than 50dB
Focal Length f=4.7(wide) - 47mm(tele)
Minimum Lux 0.1Lux
White Balance Auto/Manual
Focus Auto/Manual
Iris Auto/Manual
Electronic Shutter Auto/Manual
Black Light Compensation ON/OFF
Anti Tlicker 50Hz/60Hz/OFF
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 30° - + 90°
Pan Rotation Speed 0° - 120° /s
Tilt Rotation Speed 0° - 80° /s
Preset 128 via RS232 output, 10 via remote controller
Video USB2.0(MJPG fomat)
Control RS232(Sony visca), USB 2.0(UVC1.5 protocol)
Power DC12V
OSD Menu English/Chinese
Dimension(W x H x W) 148mm x 132mm x 161mm
Package 280mm x 240mm x 240mm
Net Weight 0.9KG(2LBS)

HD 1080P 60fps USB PTZ Video Conferencing Camera For Telemedicine Cart / Work Station

Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days

Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea

FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days

Why choose us
Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
