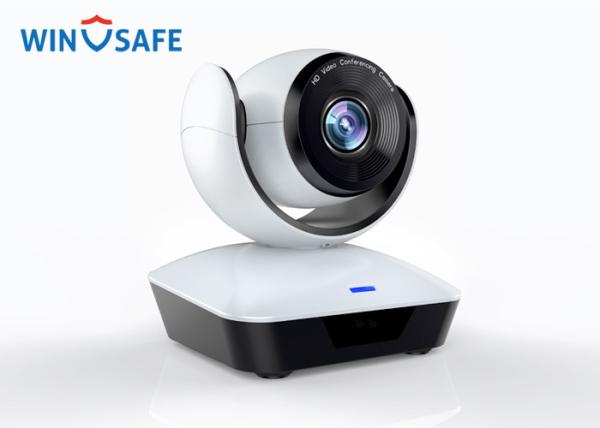

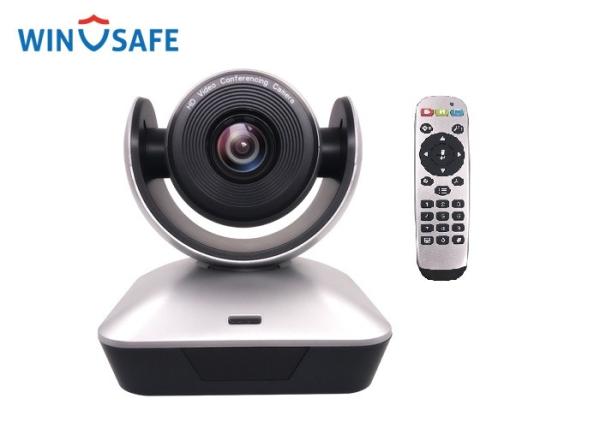

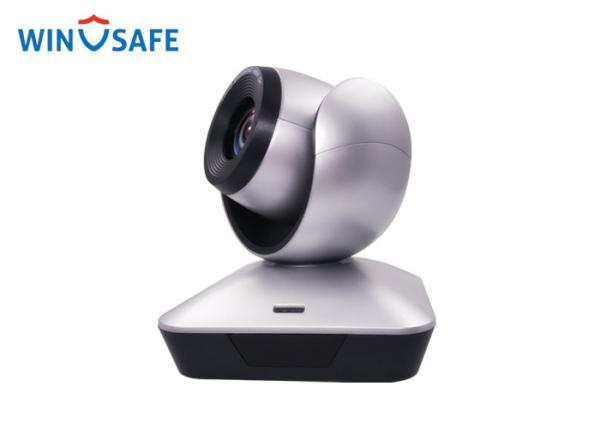

HD 4K Optical Lens 4X Digital Zoom USB2.0 PTZ Conference Room Webcam Tilt Rotation Speed
HD 4K Optical Lens 4X Digital Zoom USB2.0 PTZ Conference Room Webcam Tilt Rotation Speed
HD 4K Optical Lens 4X Digital Zoom USB2.0 PTZ Conference Room Webcam Tilt Rotation Speed
HD 4K Optical Lens 4X Digital Zoom USB2.0 PTZ Conference Room Webcam Tilt Rotation Speed
HD 4K Optical Lens 4X Digital Zoom USB2.0 PTZ Conference Room Webcam Tilt Rotation Speed
HD 4K Optical Lens 4X Digital Zoom USB2.0 PTZ Conference Room Webcam Tilt Rotation Speed
Specifications
Brand Name :
WINSAFE
Model Number :
UHV-4XD-U2S
Certification :
CE/FCC/RoHS
Place of Origin :
China
MOQ :
1piece
Payment Terms :
L/C, T/T, Western Union, Paypal
Delivery Time :
7 work days
Packaging Details :
Neutral packing
Digital zoom :
4X
Max Resolution :
1920x1080p30
FOV :
82.5°
Pan Rotation Speed :
0° - 30° /s
Tilt Rotation Speed :
Tilt Rotation Speed
Video Port :
USB2.0
Sony Visca Protocol :
Support
UVC 1.5 Protocol :
Support
Description

UHV-4XD-U2S is an enterprise level high video quality HD PTZ Camera at affordable cost, give you a perfect solution for cloud-conferencing, mini meeting room video capture.

Feature

Pro-level HD Video Quality

※ Advanced industrial level ISP, SONY 1/2.8" 5MP image sensor, 4K optical lens with 4x digital zoom, to provide ultra crystal and smooth video experience
※ 1920x1080p 30fps full HD resolution
※ 82.5 degree wide angle of viewing

Smooth & Accurate PTZ Movement

※ Compact & stable mechanical design, to ensure the quite, smooth, accurate pan tilt movement

Plug & Play Design

※ USB 2.0 output, single USB cable connection, can start quick video call with any video conference software
※ Support FECC(Far End Camera Control)

Easy Control

※ Standard Sony Visca and UVC 1.5 protocol, RS232/RS485 control
※ Upgradable firmware
※ Image flip function support upside-down installation


Technical Specification

Model No. UHV-4XD-U2S
Camera
Sensor 1/2.8" inch high quality, SONY CMOS sensor, 5MP
Video System 1920x1080p30/25/20/15/10/5
1280x720p30/25/20/15/10/5
720x576p30/25/20/15/10/5
640x480p30/25/20/15/10/5
320x240p30/25/20/15/10/5
Video Format MJPG/H.264
Zoom 4x digital zoom
View Angle 82.5°
Focal Length F=2.7mm
Minimum Lux 0.1Lux
S/N Rate Above 50dB
Focus Fixed Focus
Iris Fixed Iris
White Balance Auto/Manual/Indor/Outdoor/Push/Sodium/Fluorescent
Electronic Shutter Auto/Manual
BLC Auto/Manual
Mechanism
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 30° - + 90°
Pan Rotation Speed 0° - 30° /s
Tilt Rotation Speed Tilt Rotation Speed
Preset 128 via RS232 contorl, 10 via remote controller
Control RS232/RS485/USB/Remote
Video Port USB2.0
Input Voltage DC12V, 1A
Camera Size 148mm x 132mm x 161mm
Package 280mm x 240mm x 240mm
Pacage content Camera, Romote, RS232 cable, USB2.0 cable, Power adapter

Dimensional Drawing(mm)
