VSIR Small Analog Rugged PTZ Camera Ight Vision Support PAL/NTSC For Police
VSIR Small Analog Rugged PTZ Camera Ight Vision Support PAL/NTSC For Police
VSIR Small Analog Rugged PTZ Camera Ight Vision Support PAL/NTSC For Police
VSIR Small Analog Rugged PTZ Camera Ight Vision Support PAL/NTSC For Police
Specifications
Brand Name :
WINSAFE
Model Number :
WS-VSIR3600
Certification :
CE/FCC
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6000PCS/Month
Delivery Time :
5 - 8 Work Days
Packaging Details :
Neutral Packing
Color :
Black/White
IR Distance :
60M
Image Sensor :
1/4" SONY EX-View HAD CCD
Digital Zoom :
12X
BLC :
ON/OFF
WDR :
ON/OFF
Resolution :
550TVL
Optical Zoom :
36X
Description

VSIR Small Analog PTZ Camera For Police / With 0.01Lux, Support PAL/NTSC and Pelco-P/D Protocol

Features

※ Efficient 60M IR lighting, excellent night vision performance
※ Magnesuim Alloy front cover
※ Portable with compact design & high reliability
※ Advanced mechanical system with high speed and free-maintenance motor design
※ Optional damping system
※ Digital Image Stabilization(DIS)
※ Built in defogger
※ Image flip supported
※ Soft address supported
※ Self-adaption of protocol & Baud rate
※ Wide range of voltage input(10.8-28V)
※ Auto power-off with low power supply


Technical Specification

Model No.WS-VSIR3600WS-VSIR2800
Camera
Image Sensor1/4" SONY EX-View HAD CCD
Effective PixelPAL: 752(H) x 582(V); NTSC:768(H) x 494(V)
Resolution550TVL
Video SystemPAL/NTSC
Optical Zoom36X28X
Digital Zoom 12X
Min Illumination0.01Lux(Lights off); 0Lux(Lights On)0.0015Lux(Lights off); 0Lux(Lights on)
White BalanceAuto
FocusAuto/Manual
ExposureAuto/Manual
BLCOn/Off
WDR(150X)YesNo
Digital Image StabilizationOn/Off
Digital Noise Reduction1-5 steps
Day/NightYes
LensF1.6 - F4.5, f=3.4 - 122.4mmF1.35 - F3.7, f=3.5 - 98mm
View Angle57.8°(wide) to 1.7°(tele)55.8°(wide) to 2.1°(tele)
PTZ
Pan Range360° Continuous
Pan SpeedControl speed:0.04° - 90°/s, adjustable; Preset speed:120°/s
Tilt Range-15° - 90°(Auto Flip)
Tilt SpeedControl speed:0.03°-60°/s, adjustable; Preset speed:90°/s
Preset256
Preset Predicion±0.05°
IR Light
IR Wave Lenth850nm/940nm
Range60m/30m
SwitchAuto/Manual
General
Comm. InterfaceRS485
ProtocolPELCO-P / PELCO-D
Pattern Scan4 routes of pattern scan
Baud Rate2400bps, 4800bps, 9600bps, 19200bps(self-adaptive)
Sectra Address0 - 255
Power Consumption10W(Standby); 25W(Aux lights On, degogger ON, and P/T runing continuously)
Working Temperature-25°C - +65°C
VoltageDC10.8-28V
IP CodeIP66, TVS, Anti-surge
DimensionsΦ130(mm) x 163(mm) w/o damper; Φ140(mm) x 189(mm) with damper

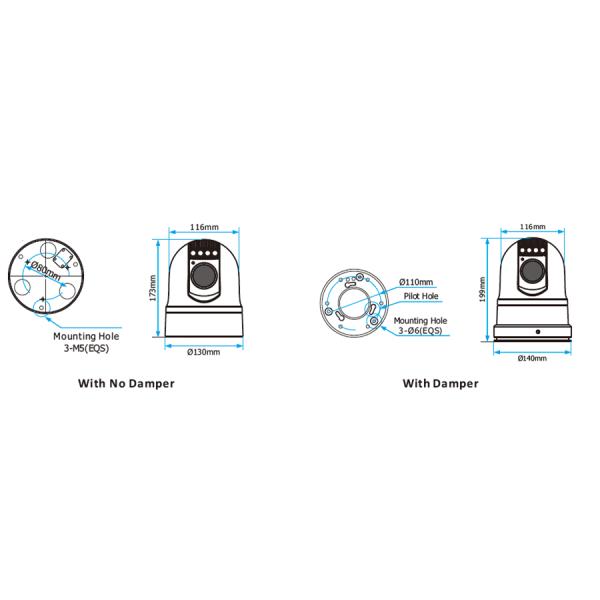

Dimensional Drawing

VSIR Small Analog Rugged PTZ Camera Ight Vision Support PAL/NTSC For Police

Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days

Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
Why choose us
Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
