Single Speaker Tracking Full HD PTZ Camera Wide FOV 12X 2MP HD Support HDMI
Single Speaker Tracking Full HD PTZ Camera Wide FOV 12X 2MP HD Support HDMI
Single Speaker Tracking Full HD PTZ Camera Wide FOV 12X 2MP HD Support HDMI
Single Speaker Tracking Full HD PTZ Camera Wide FOV 12X 2MP HD Support HDMI
Single Speaker Tracking Full HD PTZ Camera Wide FOV 12X 2MP HD Support HDMI
Single Speaker Tracking Full HD PTZ Camera Wide FOV 12X 2MP HD Support HDMI
Specifications
Brand Name :
WINASFE
Model Number :
AMC-G200TH
Certification :
CE,FCC etc.
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
3-5 work days
Packaging Details :
Netural Packing
Pixel :
2MP
Resolution :
1920*1080
Optical Zoom :
12X
Digital Zoom :
4X
ONVIF :
Support
HDMI :
Support
3G-SDI :
Support
FOV :
72.5° -6.3°
Description

IP&HDMI&3G-SDI&USB Wide FOV 12X 2MP HD Single Speaker Tracking Camera

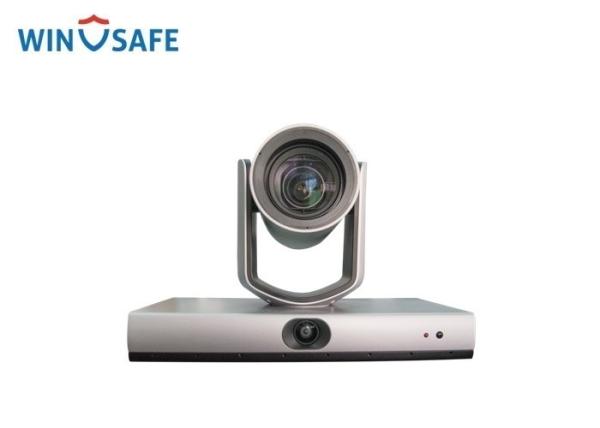

AMC-G200TH speaker tracking camera helps to achieve intelligent meeting experience, implemented with both audio positioning and intelligent video analysis technologies. It can automatically switch between close-up image and full-view image to frame the speaker(s). It frees of camera operation during a meeting and enables meeting attendees to focus more on discussion.

Single Speaker Tracking Full HD PTZ Camera Wide FOV 12X 2MP HD Support HDMI

Features

※ 1/2.8" Exmor CMOS, 2MP

※ 12x optical zoom, up to 72.5 degree FOV

※ Simultaneously output 3G-SDI, HDMI, USB2.0, Ethernet, up to 1080P60 resolution

※ Support H.264/H.265 video compression

※ Implemented with both audio positioning, body detection and recognition technologies, it can precisely frame the speakers, support AEC

※ Automatically switch between close-up image for speaker(s) and wide-angle image for all attendees

※ Built-in switch rules according to actual meeting scenes

Technical Specification

Model No. AMC-G200TH
Image Sensor 1/2.8" Exmor CMOS, 2 MP
Video Standard(HD) 1080p60,1080p50,1080p/30,1080p/25,1080i/60,1080i50,720p/60,720p/50
Focal f = 3.9mm - 46.8mm
IRIS F1.6 - F2.8
Zoom Optical: 12X, Digital: 12X
Field of View 72.5° - 6.3°
Focus Auto, Manual, PTZ Trigger AF, One push
Min.Illumination 0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed 1/25 - 1/10,000s
AGC Auto/Manual
White Balance Auto, Indoor, Outdoor, One push,Manual, Auto Track
AE Control Auto, Manual, Shutter Priority, Iris Priority
S/N Ratio Above 50dB
DNR 2D/3D
BLC Support
Full-View Camera
Image Sensor 1/2.5" 4K CMOS, 8.57MP, 2.8mm
Lens Prime lens, 4X Digital Zoom
Field of View 98°
Video Adjustments Support EPTZ
PTZ
Pan/Tilt Range -90° - +90°; -30° - +90°
Preset Number 64
Network
Max,Image Size 1920x1080 @ 60fps
Video Compression H.265,H.264
Audio Compression AAC
Protocol HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF
Steam Support 1 Tracking, 1 Full-view, 1 Switching, three steams in total
Interface
Video Output
Audio Input		 1 x HDMI interface, 1 x 3G-SDI Interface, 2 x LINE IN, including one channel with EC
Audio Output 1 x Line out
Network Interface 1 x 10M/100M
USB Interface 1 x USB2.0, Support UVC/UAC
Control Interface 1 x RS-232
General
Control Protocol VISCA
Address 1 - 6
Power Supply DC12V
Power Consumption Below 20W
Working Temp 0°C - +40°C
Storage Temp -20°C - +60°C
Dimension 245mm x 145mm x 165mm
Weight Below 2kg

Application scene

Single Speaker Tracking Full HD PTZ Camera Wide FOV 12X 2MP HD Support HDMI
