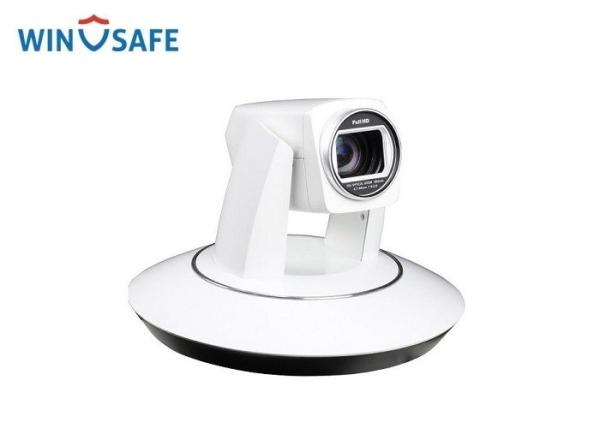

Broadcast Robotic 3G-SDI PTZ Video Conference Camera With IR Remote Controller
Broadcast Robotic 3G-SDI PTZ Video Conference Camera With IR Remote Controller
Broadcast Robotic 3G-SDI PTZ Video Conference Camera With IR Remote Controller
Broadcast Robotic 3G-SDI PTZ Video Conference Camera With IR Remote Controller
Broadcast Robotic 3G-SDI PTZ Video Conference Camera With IR Remote Controller
Broadcast Robotic 3G-SDI PTZ Video Conference Camera With IR Remote Controller
Specifications
Brand Name :
WINSAFE
Model Number :
AMC-S3003
Certification :
CE,FCC
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
Netural Packing
Optical Zoom :
30X
PELCO-D Protocol :
Support
PELCO-P Protocol :
Support
Visca :
Support
Minimum Lux :
0.01Lux
Resolution :
1080P50
Daisy Chain :
Support
Pixel :
2.13MP
Description

Professional Broadcast Robotic 3G-SDI PTZ Video Camera Support Pelco-D/ P & Visca


Feature

※ 1/2.8" EXMOR CMOS image sensor, up to 2.13MP
※ Simultaneously outputs of HD and SD videos
※ Video interface, DVI-I(for DVI-D, HDMI, YPbPr, VGA, 5-BNC etc.)HD-SDI
※ Control: RS-232 IN, RS-RS232OUT, RS-422/RS485
※ On-screen display menu with simple program
※ Has image flip function for stand and suspended installations
※ On-screen display menu with simple program
※ Has image flip function for stand and suspended installations
※ Support VISCA protocols, daisy chian
※ Come with IR remote controller
※ New design of PTZ mechanism with higher precision and reliability

Dimensional Drawing

Broadcast Robotic 3G-SDI PTZ Video Conference Camera With IR Remote Controller

Technical Specification

Model No. AMC-AS3003
Image Sensor 1/2.8" Exmor CMOS, 2.13MP
HD Signal Format 1080p/60,1080p/30,1080i/60,720p/60,720p/30,1080p/50,1080p/25,1080i/50,720p/50,720p/25
1080i/59.94,720p/59.94,1080p/29.97,720p/29.97
Focal f = 4.3mm - 129mm
IRIS F1.6 - F4.8
Zoom Optical:30X, Digital:12X
Shortest Focus Distance 10 mm - 1,000mm
Field of View 63.7° - 2.3°
Focus Auto, Manual, PTZ Trigger AF, One push
Min.Illumination 0.01Lux(Color), 0.0015Lux(B/W)
Shutter Speed 1/1 - 1/10,000s
AGC Auto/Manual
BLC Auto, Indoor, Outdoor, One push, Manual, Auto Track
AE Control Auto, Manual, Shutter Priority, Aperture priority
S/N Ratio Above 50dB
PTZ
Pan Range -170° - +170°
Tilt Range -30° - +90°
Pan Speed 0.1° - +120°/s
Tilt Speed 0.1° - +90°/s
Preset Number 256
OSD Yes
Image Flip Yes
Interface
HD Video Output Interface DVI-I(for DVI-D,HDMI, YPbPr, VGA,5-BNC),HD-SDI
SD Video Output Interface CVBS
Control Interface RS-232IN, RS232-OUT, RS422/RS485
General
Protocol VISCA and Support Daisy Chain, PELCO-D, PELCO-P
Power Supply DC12V
Spectra Address 0 - 63
Power Consumption Below 15W
Working Temp 0°C - +40°C
Storage Temp -20°C - +60°C
Dimension 226mm x 159mm x 206mm
Weight 1.7KG
Color Grey/White
Accessory
Broadcast Robotic 3G-SDI PTZ Video Conference Camera With IR Remote Controller
Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days

Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea

FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days

Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
