Specifications
Brand Name :
WINSAFE
Model Number :
UHV-500-U2
Certification :
CE,FCC, Rohs
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
Netural Packing
Pixel :
2MP
Sensor :
1/2.8" CMOS
Resolution :
1080P
BLC :
Support
Max FOV :
120 degree
USB2.0 :
Support
Video Compression Format :
MJPEG, YUY2
Pick Up Distance :
5 meters
Description

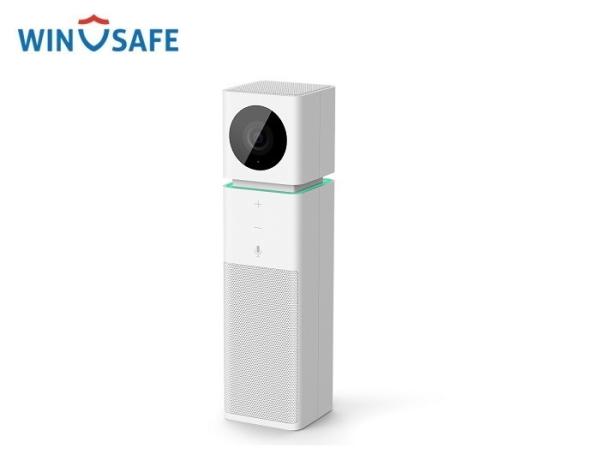

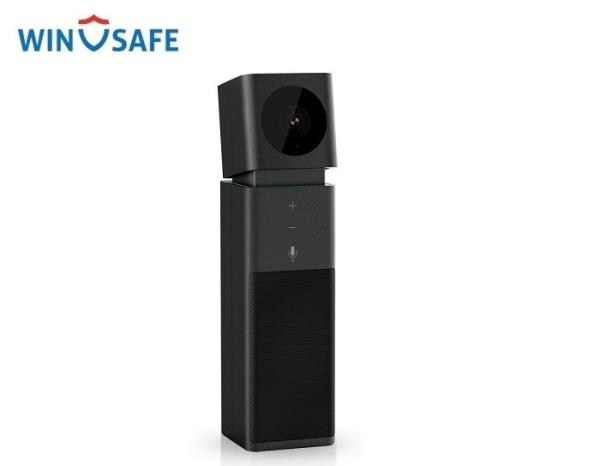

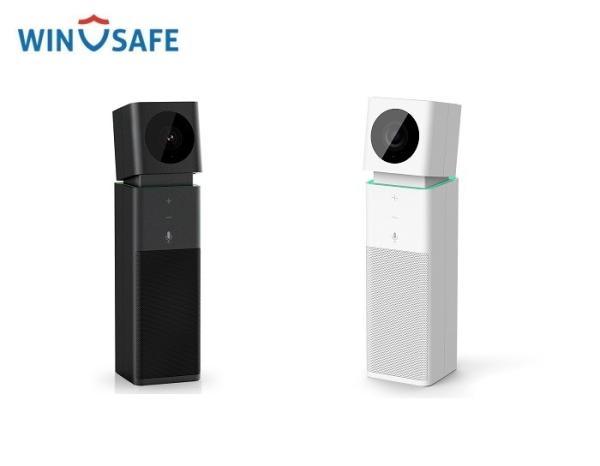

All In One USB Video Conference Endpoint HD 120 Degree View Low Noise With Built-in Mic

Advantage

UHV-500-U2 is a digital conference phone integrated with audio and wide-angle camera, mainly for small to middle size conference. It can be plug and play without installation or driver, supporting audio and video conference software and IM instant communication tools, such as Skype,Webex,Zoom and MSN. Or can be used as external microphone and loudspeaker for your computer. Also It can be used for personal business or HI-FI equipments for entertainment.
It provides users with high quality Internet video meeting or Internet teleconference, high definition real-time synchronized screen, and the best distance of picking up sound is 3m.The omnidirectional microphone is used with strong anti-interference ability and wide range of sound pickup. video image is clear and smooth, voice call is clear and natural, and has strong echo suppression and noise reduction ability. Meeting communication becomes easier, clearer and more efficient, giving users a high-quality meeting experience.

Features

※ 1/2.8" inch high quality CMOS sensor. Resolution is up to HD full 1080P with frame rate up to 30fps
※ Wide FOV:120° large wide angle, the lens can be adjusted up and down 45°, supporting Angle and elevation shooting.
※ 360° pick-up microphone,256ms acoustic echo cancellation and full duplex HI-FI two-ways audio technology.
※ Low Noise and High Dynamic Noise Reduction(DNR)
※ High-end elegant solid appearance,rugged design and durability. Easy to put and use.
※ Microphone and volume control touch keypad, circle indicator light, intuitive and easier to operate equipment.
※ Easy to Use: No need to download driver, USB output interface, plug and play
※ Wide Application: personal video conferencing, enterprise video conferencing, collaboration meeting etc.

Technical Specification

Model No. UHV-500-U2
Camera Parameter
Image Sensor 1/2.8" inch High Quality Full HD CMOS sensor
Effective Pixesl 2MP 1080P
Video Format USB 2.0 Video Output Format:up to 1080p
View Angle 120° Wide Angle
Pick-up distance 5m, 360° pick-up microphone
DNR 2D & 3D DNR
White Balance Auto
Focus Auto
Exposure Auto
Stereo loudspeaker 10 adjustable range up to 94dBA , frequency response: 300 to 22KHz
SNR Above 50dB
Input/Output Interface
Video Interfaces Mini USB2.0
Video Compression Format MJPEG, YUY2
Audio Input Interface Built-in high sensitive digital pickup microphone and adjustable loudspeaker.
Other Parameter
Power Consumption DC 5V/500mA, 2.5W
Accessory USB Data Line(1.5m), USB Extension Line(1.5m),user manual
Supported OS Windows/MAC OS 7 up/Android
Store Temperature, Humidity - 10°C - +60°C, 20% - 95%
Working Temperature, Humidity -10°C - +50°C, 20% - 85%
Weight 0.5KG, Package: 1.2 KG
Dimension(WxHxD) 235x62x62 mm; Package: 270x230x83 mm
Certifications CE,FCC,ROHS
Warranty Two years

Application

All in one design frees users from microphone connection. 1920x1080P resolution and microhphone with high quality and stable voice input/output makes users totally enjoy plug-and-play video experience.
