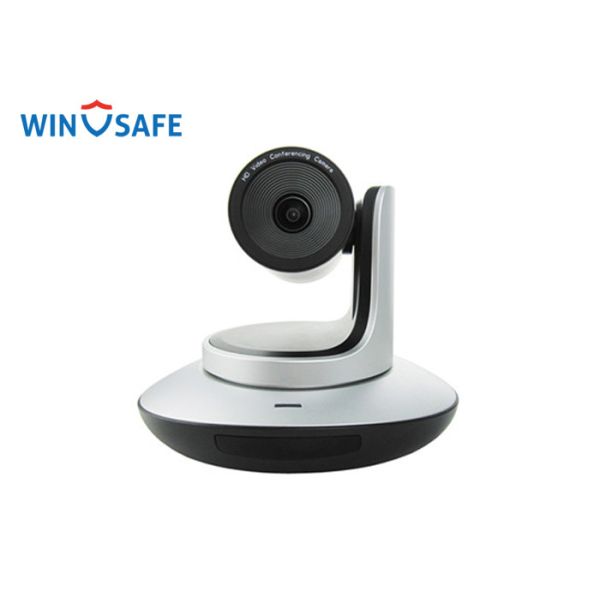

1080P IP 3G-SDI & DVI-D & USB Video Conference Camera For Huddld Room With Remote Controller And OSD Menu
1080P IP 3G-SDI & DVI-D & USB Video Conference Camera For Huddld Room With Remote Controller And OSD Menu
1080P IP 3G-SDI & DVI-D & USB Video Conference Camera For Huddld Room With Remote Controller And OSD Menu
1080P IP 3G-SDI & DVI-D & USB Video Conference Camera For Huddld Room With Remote Controller And OSD Menu
Specifications
Brand Name :
WINSAFE
Model Number :
AMC-E210NV2
Certification :
CE,FCC, Rohs
Place of Origin :
China
MOQ :
1 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
Netural Packing
Optical Zoom :
10X
Min Illumination :
0.1Lux(B/W)
IRIS :
F1.6-F3.5
Digital Zoom :
12X
Pan Angle :
340°
Tilt Angle :
120°
Preset Number :
256
OSD :
Yes
Description

1080P IP 3G-SDI & DVI-D & USB Video Conference Camera For Huddld Room With Remote Controller And OSD Menu

Feature

※ H.265 video compression,dual stream

※ Compatible with ONVIF,RTSP.RTMP protocols

※ 2.14MP,1/2.8" CMOS

※ With OSD menu,support image flip

※ Come with IR remote comtroller

※ Support standard VISCA & Pelco communication protocols

※ RS232IN/IR RS232OUT/RS485 control interface,support daisy chain,

※ Special mechanical PTZ driving system,ensure precise positioning

Specification

Model No. AMC-E210NV2
Image Sensor 1/2.8" Exmor CMOS, 2.14MP
Video Standard(HD) 1080p60,1080p50,1080p30,1080p25,1080i/60,1080i50,720p/60,720p50
Focal f = 4.7mm - 94mm
IRIS F1.6 - F3.5
Zoom Optical: 10X, Digital: 12X
Field of View 60.4°-6.43°
Focus Auto, Manual, PTZ Trigger AF, One push
Min.Illumination 0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed 1/1 - 1/10,000s
AGC Auto/Manual
White Balance Auto, Indoor, Outdoor, One push, Manual, Auto Track
AE Control Auto, Manual, Shutter Priority, Iris Priority, Intelligence
S/N Ratio Above 50dB
PTZ
Pan Range -170° - +170°
Tilt Range -30° - +90°
Pan Speed 0.1° - +120°/s
Tilt Speed 0.1° - +80°/s
Preset Number 256
OSD Yes
Image Flip Yes
Network
Max,Image Size 1920x1080
Frame Rate HD:50Hz:50fps(1920x1080) 60Hz:60fps(1920x1080)
Video Compression H.265,H.264
Audio Compression AAC
Protocol HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF
Dual Stream Support
Simultaneous Users up to 10 users
Interface
HD Video Output Interface DVI-D,3G-SDI
Control Interface RS-232IN/IR, RS-232OUT/RS-485
Ethernet RJ45,100M
USB USB2.0
Audio One line in; One line out
General
Control Protocol VISCA and Support Daisy Chain, PELCO-D, PELCO-P
Address 0 - 63
Power Supply DC12V
Working Temp 0°C - +40°C
Storage Temp -20°C - +60°C
Dimension 243mm x 145mm x 163mm
Weight 1.2KG
Color Grey

Dimension

1080P IP 3G-SDI & DVI-D & USB Video Conference Camera For Huddld Room With Remote Controller And OSD Menu
