Waterproof ip66 TUYA TTLOCK APP Smart Touch Keypad Password Standalone RFID Card Acess Control Reader with Door Bell
Waterproof ip66 TUYA TTLOCK APP Smart Touch Keypad Password Standalone RFID Card Acess Control Reader with Door Bell
Waterproof ip66 TUYA TTLOCK APP Smart Touch Keypad Password Standalone RFID Card Acess Control Reader with Door Bell
Waterproof ip66 TUYA TTLOCK APP Smart Touch Keypad Password Standalone RFID Card Acess Control Reader with Door Bell
Waterproof ip66 TUYA TTLOCK APP Smart Touch Keypad Password Standalone RFID Card Acess Control Reader with Door Bell
Waterproof ip66 TUYA TTLOCK APP Smart Touch Keypad Password Standalone RFID Card Acess Control Reader with Door Bell
Waterproof ip66 TUYA TTLOCK APP Smart Touch Keypad Password Standalone RFID Card Acess Control Reader with Door Bell
Waterproof ip66 TUYA TTLOCK APP Smart Touch Keypad Password Standalone RFID Card Acess Control Reader with Door Bell
Waterproof ip66 TUYA TTLOCK APP Smart Touch Keypad Password Standalone RFID Card Acess Control Reader with Door Bell
Waterproof ip66 TUYA TTLOCK APP Smart Touch Keypad Password Standalone RFID Card Acess Control Reader with Door Bell
Waterproof ip66 TUYA TTLOCK APP Smart Touch Keypad Password Standalone RFID Card Acess Control Reader with Door Bell
Waterproof ip66 TUYA TTLOCK APP Smart Touch Keypad Password Standalone RFID Card Acess Control Reader with Door Bell
Specifications
Brand Name :
VANSHUI
Model Number :
GL-AC05
Certification :
CE,FCC
Place of Origin :
SHANGHAI,CHINA
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000Pcs/month
Packaging Details :
Unit Pacakge:15.6*7.6*6.6cm,G.W.:0.615kg Carton Package:47*30*18.2cm,G.W.12.5kg,20units/CTN
Delivery Time :
sample order within 3-4days.
Product name :
Biometric Smart Access Control Reader
Proximity Card Reader :
125KHz(ID carfd) or 13.56MHz(IC card)
PIN Length :
4~6 digits
Waterproof Rank :
IP66
Adjustable Relay Output Time :
0~99 Seconds (5 seconds default)
Operating Temperature :
-40°C ~ 60°C
Operating Voltage :
12~28V AC/DC
Wiring Connections :
Relay output, exit button, alarm, door contact, Wiegand input/output
Description

Waterproof ip66 TUYA TTLOCK APP Smart Touch Keypad Password Standalone RFID Card Acess Control Reader with Door Bell

PRODUCT DESCRIPTION
Waterproof IP66 TTLOCK App Smart Home
Touch Keypad Password Standalone RFID Card access Control Reader with WIFI TUYA door bell
FEATURES
Outdoor Touch Keypad & Reader
1>Compatible with all BT/Wi-Fi enable mobile phones (Android:4.3 above,iOS:7.0 above)
2>Integratedwith Tuya which supports 500 mobile users and 1000 local users
3>Add /Delete PIN /Card user and send eKeys
4>Available for both iOS and Android,supporting multiple languages
5>Multiple access modes:APP,Card,Password
6>Metal housing,anti-vandal,Waterproof
7>Support checking Opening Record
8>Support Gateway
9>Support Time Attendance
SPECIFICATION
Model
GL-AC05
User Capacity
Hardware User:1,000,APP User:500,
Common User:988 (PIN/Card Users),
Visitor User:10,
Panic User:2
APP option
Tuya (WIFI or BT) or TTLock APP
PIN Length
4~6 digits
Operating Voltage
12~28V AC/DC
Idle Current
≤ 60mA
Active Current
≤ 150mA
Proximity Card Reader
EM or Mifare
Radio Technology
125KHz or 13.56MHz
Read Range
2~6cm One
Wiring Connections
Relay output, exit button, alarm, door contact, Wiegand input/output
Relay
One (NO, NC, Common)
Adjustable Relay Output Time
0~99 Seconds (5 seconds default)
Lock Output Load
2 Amp Maximum
Wiegand Interface
EM card version: Wiegand 26~44 bits input & output
(Factory default: Wiegand 26bits)
Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output
(Factory default: Wiegand 34bits)
PIN Output
4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
Environment
IP66
Operating Temperature
30°℃～60℃ (-22°F～140°F)
Operating Humidity
0%RH ~ 98%RH
Physical
Zinc-Alloy
Color
Sliver
Dimensions
L148x W43.5 x H22 (mm)
Weight
Unit Weight:1KG;Shipping Weight:1.5KG

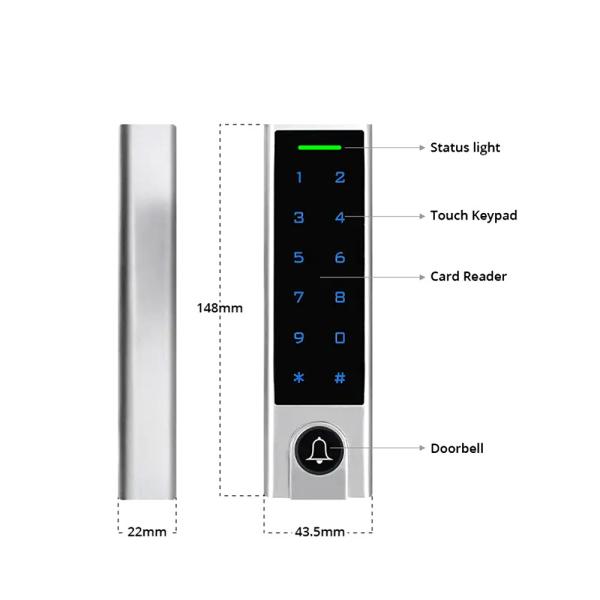

DIAGRAM
DETAILS
PRODUCTS PACKAGE
APP INTRODUCTION
TUYA APP INTRUCTION
TTLOCK APP INTRUCTION
