Specifications
Brand Name :
VANSHUI
Model Number :
inBIO260
Certification :
CE,FCC
Place of Origin :
SHANGHAI,CHINA
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000Pcs/month
Packaging Details :
1pc per box, 10pcs per carton; Unit size: 25x20x8(cm),Unit weight: 2KG
Delivery Time :
5-8 working days
Product Description :
Access Control Panel for 2 Doors
Support Fingerprint Capacity :
3,000FPS
Number of Doors Controlled :
2 Doors
Type :
Support Fingerprint+Card Reader
Communication :
TCP/IP, RS485,Wiegand in/out
Numbers of readers supporte :
8(4*RS-485 Reader, 4*26-bit wiegand reader)
CPU :
32Bit 400MHZ CPU
RAM :
32M Bit
Description
PRODUCT DESCRIPTION

Door Access Controller for 2 Doors Access Control Inbio260 IP-Based Connect with Fingerprint and RFID Card Reader

Access System built on flexible, open technology to provide management, real-time monitoring, and control of your access control system-all from a browser, with no additional software to install. Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location.
inBio 260 versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features. The inBio 260 can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders.
SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.
FEATURES
1/ Multiple hardware protection measure
There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
2/ Integration with Other Security Systems
Inbio 260 can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.
3/ Supports different wiegand reader
wiegand format, and can connect to different reader, including ID card reader and MF card reader
4/ Input/Output Ports to Control Doors
Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
5/ Variety of Communication Function
Using either serial or TCP/IP communication, it provides reliable network system
6/ B/S structure software
It is easy to manage the system by browser from client PC. There is no need to install software on each client.
7/ Normal open after first punch card can be setup
8/ Real-time Monitoring of Door status
Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
9/ Simple Access Control System Configuration
10/ Interlock function
Link different doors with special logic that one door is Open, others should be closed.
11/ Multi-card operation
This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together.
12/ Anti-Passback
13/ Duress Mode
The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.
SPECIFICATION
Model
inBio 260
Fingerprint Capacity
3,000
Card Capacity
30,000
Transaction Capacity
100,000
CPU
32Bit 400MHZ CPU
RAM
32M Bit
Flash Memory
128M Bit
Power
DC 9.6V-14.4V, Rated Max.1A
Operating Temp.
0-45℃
Communication
TCP/IP, RS-485
Operating Humidity
20% to 80% relative humidity non-condensing
Number of doors controller
2 Doors
Number of Inputs
6( 2 Exit Device, 2 Door Status, 2 AUX)
Number of Outputs
4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output)
Numbers of readers supported
8(4 RS-485 Reader, 4 26-bit wiegand reader)
Types of readers supported
26-bit Wiegand and RS485 FR Series Reader
LED Indicator
Yes, LED indication for communication, power, status and punch card
Package Dimension (H*W*D)mm2
250*200*80(Single board),weight:1.5KG
400*350*120(with power supply and metal cabinet),4KG
Software
Access3.5

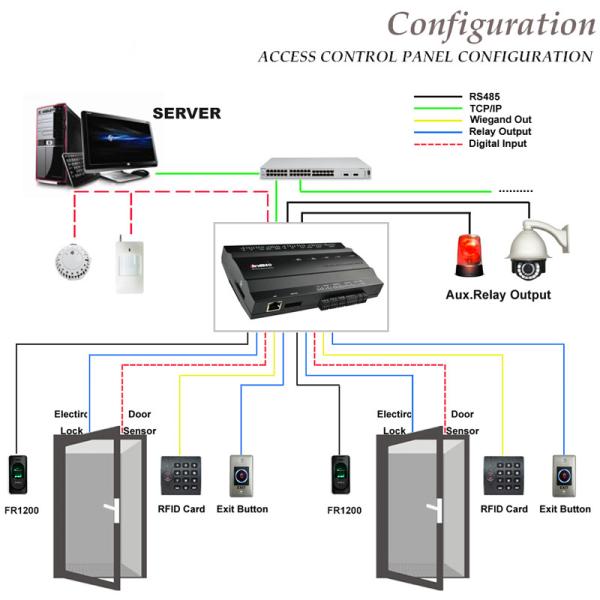

DIAGRAM

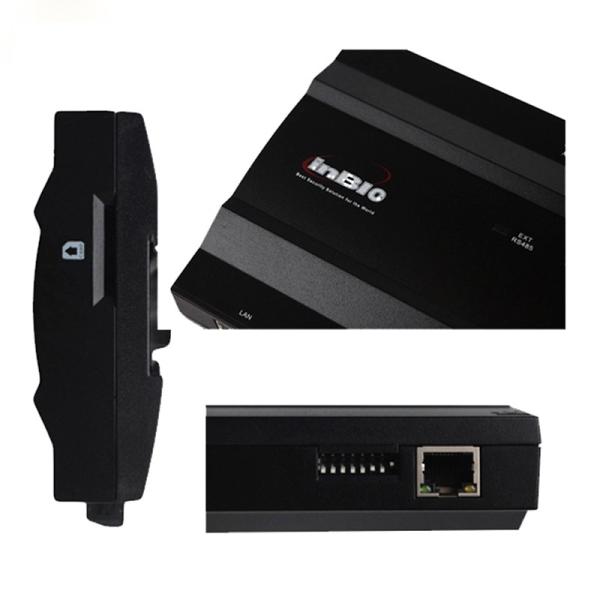

DETAILS
SOFTWARE

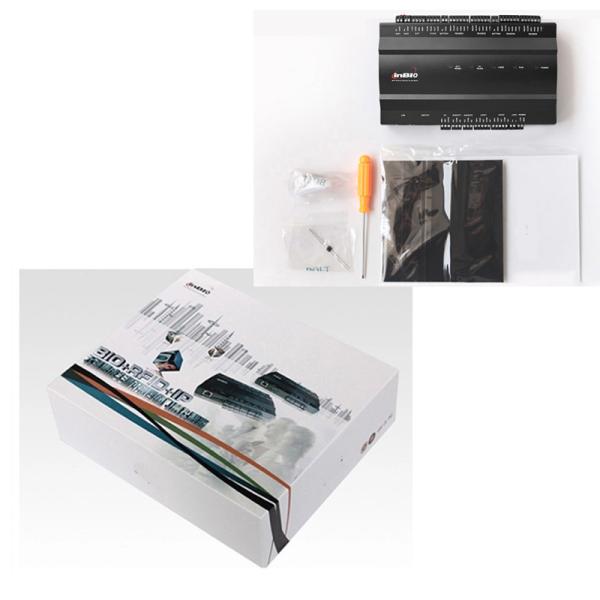

PRODUCTS PACKAGE
