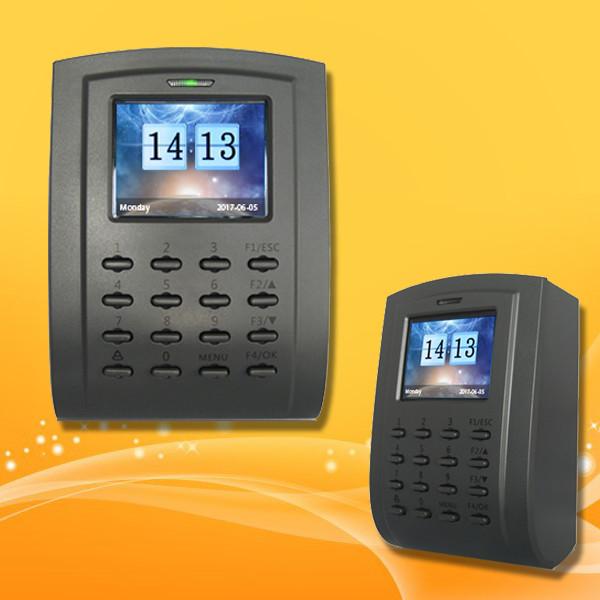

2.4” TFT Color Sreen RFID Proximity Card Access Control System With Wiegand Singal
2.4” TFT Color Sreen RFID Proximity Card Access Control System With Wiegand Singal
2.4” TFT Color Sreen RFID Proximity Card Access Control System With Wiegand Singal
2.4” TFT Color Sreen RFID Proximity Card Access Control System With Wiegand Singal
2.4” TFT Color Sreen RFID Proximity Card Access Control System With Wiegand Singal
2.4” TFT Color Sreen RFID Proximity Card Access Control System With Wiegand Singal
2.4” TFT Color Sreen RFID Proximity Card Access Control System With Wiegand Singal
2.4” TFT Color Sreen RFID Proximity Card Access Control System With Wiegand Singal
Specifications
Brand Name :
VANSHUI
Model Number :
A103
Certification :
CE,FCC
Place of Origin :
SHANGHAI,CHINA
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000Pcs/month
Packaging Details :
Dimension: 129*95*50mm; Weight :0.3KG
Model :
A103
Display :
2.4 inch TFT color screen 320*240 pixel
CPU :
240Mhz ARM 9
Capacity :
ID card: 30,000 Events: 160,000
Verification speed :
1:N＜0.5 second
Identification :
FRR≤0.01%; FAR≤0.0001%
Description

Wiegand 26/34 TCP/IP web based 2.4” TFT color sreen RFID Proximity card access control system

Product Description

A103 Granding TFT Color Screen RFID card Acess Control System, support many functions: Log Inquiry, Multi-verify Mode, 9-PIN ID, Scheduled Bell, Extermal Bell, 255 Time Zone, Anti-pass Back

Features

1. High speed CPU processor 240Mhz ARM 9.0

2. High quality spare parts with excellent performance

3. Multi-choice for verification

4. 255 Time Zones setting for access control

5. Long user memory

6. Cost-effective for small or medium enterprise

2.4” TFT Color Sreen RFID Proximity Card Access Control System With Wiegand Singal

Specification

Model A103
Display 2.4 inch TFT color screen 320*240 pixel
CPU 240Mhz ARM 9
Capacity ID card: 30,000 Events: 160,000
Verification speed 1:N＜0.5 second
Identification FRR≤0.01%; FAR≤0.0001%
Language English, Spanish, Indonesian (available to customize for others)
Communication TCP/IP (LAN, WAN), USB slave, Wiegand in/out
Software Time 3.0
Environment Operating Temp: 0℃-45℃ Operating Humidity: ≤90%
Operating Mode On line/Off line
Access Control Function Log Inquiry, Multi-verify Mode, 9-PIN ID, Scheduled Bell, Extermal Bell, 255 Time Zone, Anti-pass Back
Access Control Interface EM lock, Door Sensor, Exit Button, Alarm, Wired Door Bell
Power Supply 12V/1A
Weight 0.3KG
Dimension 129*95*50mm
Optional Battery, Language,

2.4” TFT Color Sreen RFID Proximity Card Access Control System With Wiegand Singal

2.4” TFT Color Sreen RFID Proximity Card Access Control System With Wiegand Singal
