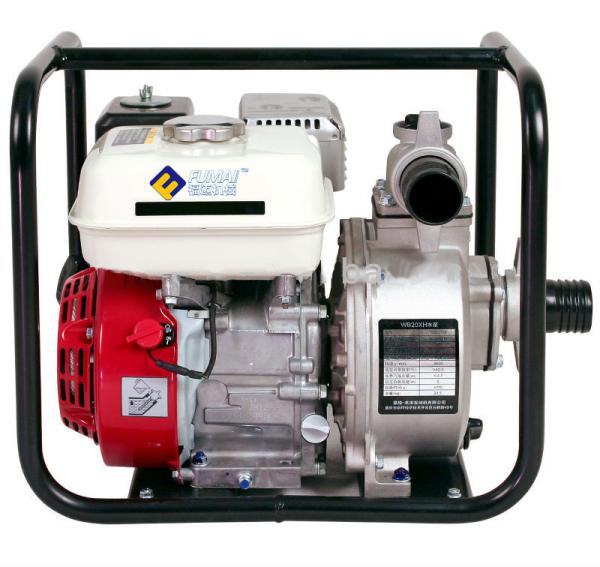

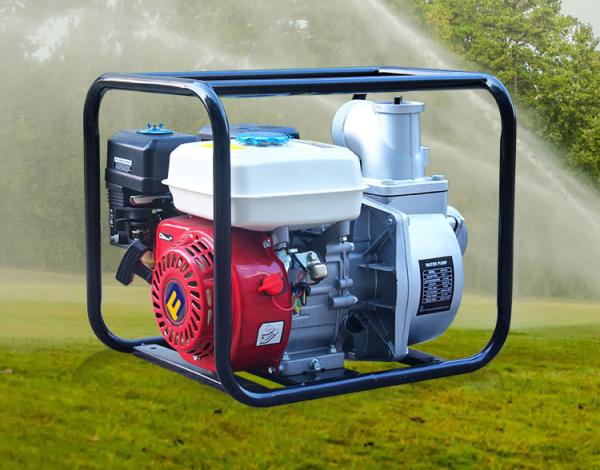

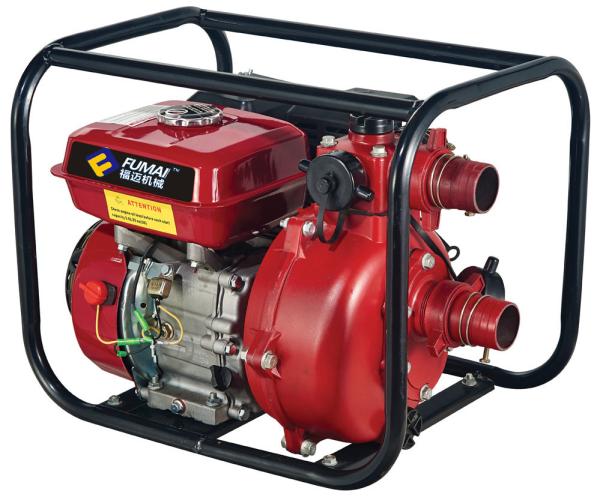

Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump
Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump
Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump
Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump
Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump
Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump
Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump
Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump
Specifications
Brand Name :
FUMAI
Model Number :
fmwp800
Certification :
CE
Place of Origin :
HEFEI
MOQ :
20
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
20000
Delivery Time :
10
Packaging Details :
CARTON
OUTPUT DIA. :
3INCH
power :
3.5kw
lift head :
16m
Description

Water pump maintenance instructions


the running-in period is about 5-10 hours, you have to change the oil, otherwise the impurities in the oil tank in the running-in period will jam the crankshaft .
Fill the four-stroke gasoline engine with gasoline above 90# and add lubricating oil to the tank. Please check the oil level before each use.
When the gasoline engine is working continuously, the crankcase temperature should not exceed 90 degrees. When it is overheated, it should be shut down for 15-20 minutes and then continue to work. When adding gasoline, it must be cooled down.
It is forbidden for gasoline engines to stop at high speeds, and the throttle should be lowered to the lowest speed before stopping.
Use the correct type of engine oil, clean engine lubricating oil without impurities, and gasoline without impurities.
The air filter element should be checked regularly and replaced regularly. The dirty filter element should be washed with soapy water and dried before use.
The machine is like your car, and it needs frequent care and maintenance to extend its life.

Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump

Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump

Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump

Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump

Fmai open impeller single suction aluminum alloy horizontal vortex pump clean water pump
Water pump
Specifications
Model FMWP800
engine parameter
Engine model 168FB
Engine type OHV25 single cylinder,Forced air cooling,4-stroke
EnginePower kW/RPM 3.5/3600
Ignition system induction ignition
Starting system recoil start
Fuel tank capacity 3.6L
Oil capacity 0.6L
Water pump parameter:
Intel Dia 80mm(2inch)
Output Dia 80mm(2inch)
Lift head 15.8m
Max.suction head 5m
Max.flow rate 39.6m3 /h
M.T mm 520*395*420
Self-priming time (s) ≤150
Cavitation allowance (m) 4.0
Net weight (kg) 25±1
G.W KG 26
Material Aluminum Alloy Aluminum Alloy
Drive mode manual
Use Irrigation,extinguish a fire,Drainage
Pump shaft position horizontal
Impeller structure Open impeller
Number of impellers Single stage
Impeller suction method Single suction
Principle vortex pump
Performance non-blocking
Conveying medium clean water pump

The gasoline engine water pump is a centrifugal pump composed of a water pump and a bracket. It has the advantages of low cost, light weight, convenient maintenance, and low manufacturing cost and low noise.
Uses: flood control and drainage, fire fighting, farmland irrigation, mountain water delivery, garden irrigation, etc.
1. The water pump has the advantages of simple installation, small footprint, convenient maintenance, and no noise.
2. The overall structure is compact, small in size, low in noise, energy-saving and environmentally friendly, and convenient for maintenance. There is no need to build a pump room, and it can work when it is submerged in the water.
3. The impeller design is advanced, the large flow channel can pass long fibers and dirt, and has strong anti-clogging, anti-winding and flow capacity.

Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump
Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump
Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump
Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump
Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump
Portable Farm Irrigation Fire Fighting fishery lift head 16mtrs centrifugal pump 1~3 inch vortex pump clean water pump
