Specifications
Brand Name :
Waterun
Model Number :
F6002D
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
USD 270-390/set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability :
5000 pcs per month
Delivery Time :
about 7-10 working days after received TT payment
Packaging Details :
55x35x58cm/set, 18kgs
Product :
Laser Fume Extractor
Application :
Filter harmful fume during solder, welding
Power :
200W
Machine Color :
Gray
Ducts :
Two plastic flexible arms
Arm Color :
Black
Voltage :
110V-220V
Noise :
less than 52dB
Filtering Efficiency :
0.3micron 99.97%
Feature :
with four wheels for easy moving
Description

200W Flexible Arm Laser Fume Extractor Four Wheels with Digital Display



Specifications:

ModelF6002D
Power200W
Voltage110V/220V
Systemic Flow2 x 150m3/h
Air Velocity2 x 11m/s
Filtering Efficiency0.3micron 99.97%
Ducts2
Duct MaterialPlastic
Duct ColorBlack
Length of Duct1.4m or 1.2m
Diameter of Duct75mm or 55mm
NoiseLess than 52dB
Dimensions425 x 250 x 410mm
Net weight14.5kg



Description:
The fume and dust during the soldering and welding are hazardous to health if inhaled. Our F6002D Solder Fume Extractor is specially for solder use.
F6002D Solder Fume Extractor has a triple-filter system which help to filter the hazardous fume and dust. The efficiency reach to 99.97%

1) Pre-Filter: the large-size pad filter can filter large particles of dust
2) Middle Filter: it filters the bigger powders for prolonging the main filter's life.
3) Main Filter: it includes HEPA (high efficiency) filter and gas filter.


Features:
1. With the intelligent control panel and digital display, the operation becomes easy and simple.
2. With the remote control, the operator can control the machine from a distance.
3. With the truly sensitive and effective "Filter Clogging Alarm System". ( When the filter gets saturated and clogged, the machine will noise. It reminds you to replace the filter in time.)
4. The High-voltage and large-volume brushless motor, ensure low vibration, low noise, stable operation. and long life span.
5. Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you place them exactly where suction is needed.
6. Wheels make the movement easy and flexible.
7. The machine surface is made of metal, more corrosion resistance and durable
8. Square and Round absorbing nozzle which have bigger filter area

Applications:
Waterun manufacturing a variety of high quality air purification systems for filter the harmful substances.

1.

solder fume extractor

2.

laser cutting, laser engraving and marking fume extractor

3.

fume extractor for electronics Manufacturing

4.

welding, laser welding

5.

medical, moxibustion, moxa-moxibustion

6.

beauty fume extraction

7.

Pharmaceutical and laboratories, chemical

8.

3D printing

9.

dust collector

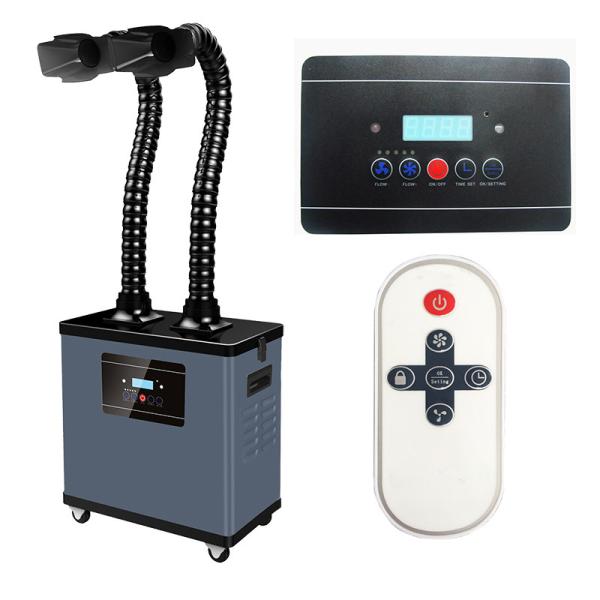

Picture show:

200W Flexible Arm Laser Fume Extractor Four Wheels with Digital Display

FQAs:
1.How long need to to replace the filter of fume extractor?
Answer: 1. Pre-filter : normally needs to replace by 1 months
2. Middle filter: normally needs to replace by 3 months
3. Main filter: normally needs to replace by 6 months.

2. What’s the life span of our fume extractor?
Answer: Motor lifetime is (continuous working 24 hours) 20,000 hours, consider environmental factors. Usually it can use 4-5 years without any problems.

3. What’s the best distance between the nozzle and the smokes?
Answer: The distance to be 5-15cm is the best.

Competitive Advantage:
Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.

Compared with the products from foreign countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.
