80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor
80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor
80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor
80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor
80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor
80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor
80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor
80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor
Specifications
Brand Name :
Furious Motor
Model Number :
154120
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$2133
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton witn protection (EPE)
Model :
154120
Dimension :
154mm * 120mm
KV :
54
Max. Thrust :
80KG
Max. Torque :
47N.m
Max. RPM :
3642
Suggested ESC :
24S 300A
Suggested Prop :
47 inch propeller
Max. Current :
252A
Max. Voltage :
90V
Max. Power :
18KW
Li - Po :
14S - 24S
Hall Sensor :
Optional
Weight :
5.9KG
Application :
Drone, paramotor
Description

Intoroduction

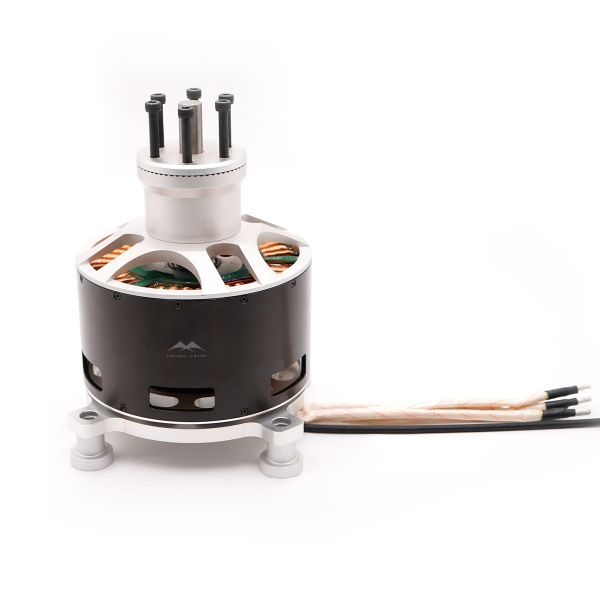

The 154120 brushless motor is tailored for big drones, UAVs, paramotors, paragliders, multi-rotor drones, and unmanned aircraft. Precision engineered for enhanced performance, this motor seamlessly integrates with a 47-inchpropeller and a 24S 300A motor controller ensuring seamless control and optimal power distribution. Boasting a maximum thrust of 80kg, it has solidified its position as one of our best sellers for substantial drone applications. Elevate your aerial pursuits with upgraded stability, as the 154120 Brushless Motor redefines standards for reliability and precision.

Tech Specs

System

Max. Thrsut 80 kg / rotor
Takeoff Weight 30 kg - 40 kg / rotor
Suggested ESC 24 S 300 A
Suggested Propeller 47 inch 2-blade propeller
Suggested Battery 12 S - 24 S
Working Temperature -20 °C ~ 50 °C
Total Weight 7.7 kg
Application Multi rotor drone, heavy lift drone, paramotor

Motor

Model 154-120
KV 55
Max. Thrsut 80 kg
Max. Torque 47 N·m
Max. RPM 3642
Dimension 154 mm * 120 mm
Weight 5.9 kg

ESC

Model 24 S 300 A
Suggested Battery 12 S ~ 24 S (Li-Po)
PMW Signal 3.3 V / 5 V
Pulse Width 900 us ~ 2000 us
Signal Frequency 50 Hz ~ 400 Hz
Max. Input Voltage DC 50 V ~ 100 V
Max. Input Current 300 A
Weight 812 g
Dimension 140.5 mm * 66.6 mm * 47.1 mm

Propeller

Model 47 inch 2-blade
Diameter 47 inch
Material Carbon fiber
Weight 450 g

Details

80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor

80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor

80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor

80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor

80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor

80KG UAV Propulsion With 154120 Brushless Motor And 24S 300A ESC 47'' Propeller For Heavy Lift Drone And Paramotor

80KG Thrust Propulsion System with 154120 Brushless Motor and 24S 300A ESC and 47 Inch Propeller for Heavy Lift Drone and Paramotor
