Specifications
Brand Name :
Furious Motor
Model Number :
238100
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$1788
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton witn protection (EPE)
Model :
238100
Dimension :
238mm * 100mm
KV :
35
Max. Thrust :
116KG
Max. Torque :
79N.m
Max. RPM :
2881
Suggested ESC :
24S 300A
Suggested Prop :
63 inch propeller
Max. Current :
288A
Max. Voltage :
95V
Max. Power :
27KW
Li - Po :
14S - 24S
Hall Sensor :
Optional
Weight :
7.8KG
Application :
Drone
Description

Introduction

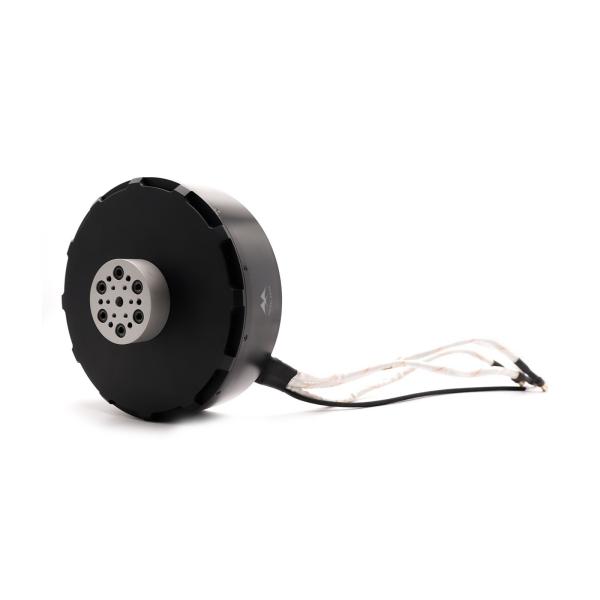

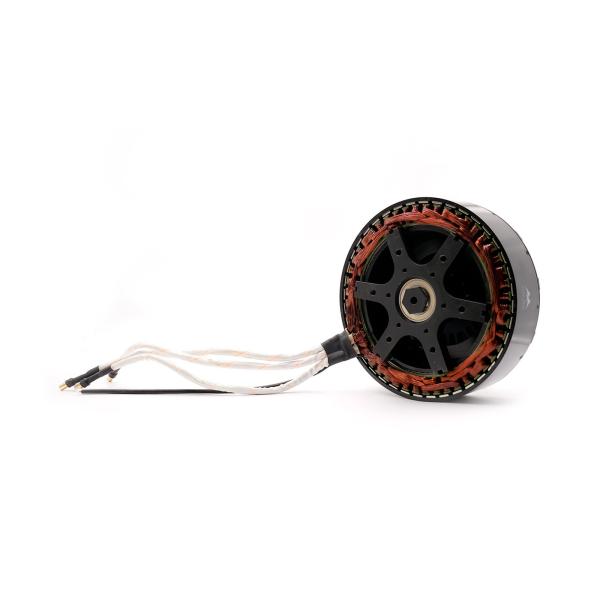

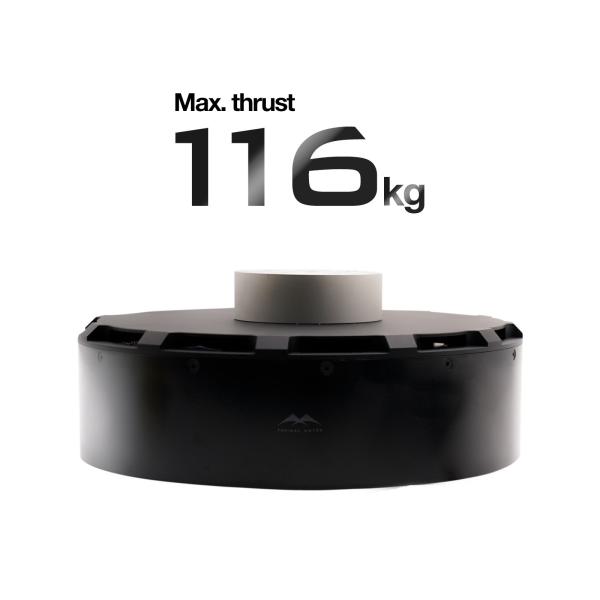

The Furious Motor 238100 brushless motor is aversatile and efficient brushless DC motor designed for drone propulsion systems. lt is specifically engineered to work seamlessly with a propellersize of 63 and an 24S 300A ESC, ensuring optimal performance. With a maximum thrustof up to 116KG, this motor is well-suited fora range of applications, including unmannedaircraft, heavy lift drones, multi rotor drones.



Tech Specs


Model 238100
Type Brushless DC motor
KV 35
Suggested ESC 24 S 300 A
Suggested Propeller 66 inch propeller
Max. Thrust 116 kg
Max. Torque 79 N·m
Max. RPM 2881
Li-Po 14 S ~ 24 S
Max. Voltage 95 V
Max. Current 288 A
Max. Power 23.8 kW
Motor Dimension 238 mm * 100mm
Weight 7.8 kg
Application Multi rotor drone, heavy lift drone
