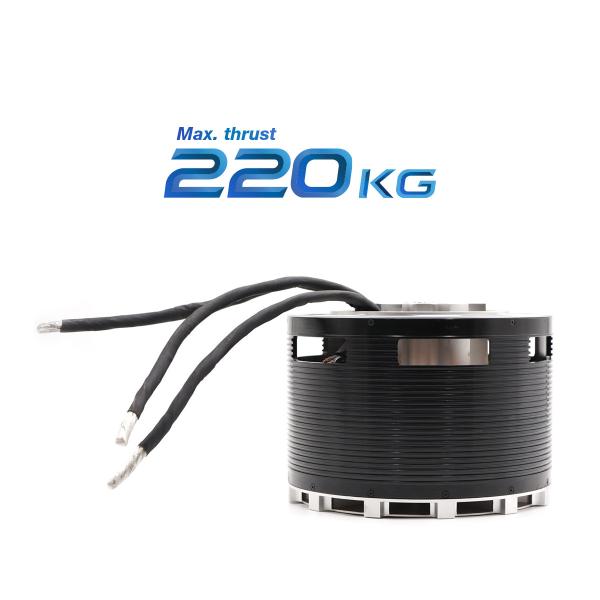

High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone
High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone
High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone
High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone
High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone
High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone
High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone
High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone
Specifications
Brand Name :
Furious Motor
Model Number :
240150
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$ 3599
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton witn protection (EPE)
Model :
240150
Dimension :
240 mm * 150 mm
KV :
10
Max. Thrust :
220 KG
Max. Torque :
234 N.m
Max. RPM :
2335
Suggested ESC :
400 V 160 A
Suggested Prop :
78 inch propeller
Max. Current :
153 A
Max. Voltage :
400 V
Max. Power :
59 KW
Li - Po :
48 S - 96 S
Hall Sensor :
Optional
Weight :
16 KG
Application :
Heavy lift drone
Description

Intoroduction

The Furious Motor 240150 brushless motor stands as a cutting-edge brushless DC motor, meticulously crafted to achieve unparalleled performance in sophisticated propulsion setups. Designed for flawless integration with a 78-inch propeller and a 400V 160A ESC, this motor strikes an ideal harmony between outstanding power and remarkable efficiency. Delivering an extraordinary maximum thrust of up to 220kg, it serves as a powerful answer to the toughest aerial propulsion demands.

Tech Specs

Model 240150
Type Brushless DC motor
KV 10
Suggested ESC 400 V 160 A
Suggested Propeller 78 inch propeller
Max. Thrust 220 kg
Max. Torque 234 N·m
Max. RPM 2335
Li-Po 48 S ~ 96 S
Max. Voltage 400 V
Max. Current 153 A
Max. Power 59 kW
Motor Dimension 240 mm * 150mm
Weight 16 kg
Application Multi rotor drone, heavy lift drone

Details

High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone

High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone

High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone

High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone

High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone

High Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone

High-Thrust 220kg 240150 400V Big Brushless DC Motor For VTOL Drone
