Specifications
Brand Name :
Furious Motor
Model Number :
154120
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$2133
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton witn protection (EPE)
Model :
154-120
Dimension :
154mm * 120mm
KV :
54
Max. Thrust :
80KG
Max. Torque :
47N.m
Max. RPM :
3642
Suggested ESC :
24S 300A
Suggested Prop :
47 inch propeller
Max. Current :
252A
Max. Voltage :
90V
Max. Power :
18KW
Li - Po :
14S - 24S
Hall Sensor :
Optional
Weight :
5.9KG
Application :
Paramotor, paraglider
Description

Intoroduction

The 154120 Propulsion System is designed for paramotors and paragliders, delivering powerful and reliable performance. Featuring the 154120 brushless motor, it seamlessly pairs with a 47-inch propeller and a 24S 300A motor controller, ensuring precise control and efficient power distribution.

With a maximum thrust of 80kg, this system provides the strength and stability needed for smooth, controlled flight. Engineered for endurance and performance, the 154120 Propulsion System is the ideal choice for those seeking a dependable and high-thrust solution for their airborne adventures.

Tech Specs

System

Max. Thrsut 80 kg / rotor
Takeoff Weight 30 kg - 40 kg / rotor
Suggested ESC 24 S 300 A
Suggested Propeller 47 inch 2-blade propeller
Suggested Battery 12 S - 24 S
Working Temperature -20 °C ~ 50 °C
Total Weight 7.7 kg
Application Paramotor and paraglider

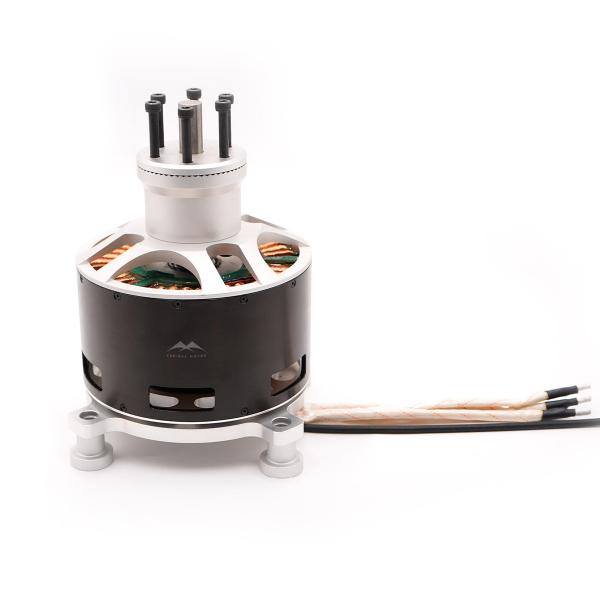

Motor

Model 154-120
KV 55
Max. Thrsut 80 kg
Max. Torque 47 N·m
Max. RPM 3642
Dimension 154 mm * 120 mm
Weight 5.9 kg

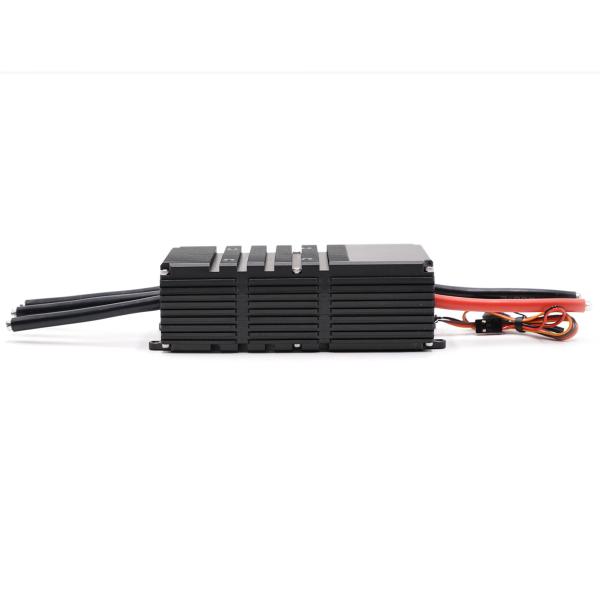

ESC

Model 24 S 300 A
Suggested Battery 12 S ~ 24 S (Li-Po)
PMW Signal 3.3 V / 5 V
Pulse Width 900 us ~ 2000 us
Signal Frequency 50 Hz ~ 400 Hz
Max. Input Voltage DC 50 V ~ 100 V
Max. Input Current 300 A
Weight 812 g
Dimension 140.5 mm * 66.6 mm * 47.1 mm

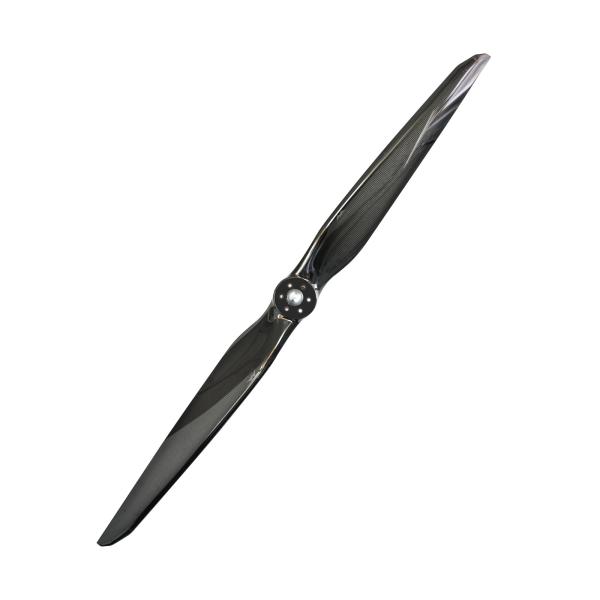

Propeller

Model 47 inch 2-blade
Diameter 47 inch
Material Carbon fiber
Weight 450 g
