Lightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And Paraglider
Lightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And Paraglider
Lightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And Paraglider
Lightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And Paraglider
Lightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And Paraglider
Lightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And Paraglider
Lightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And Paraglider
Lightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And Paraglider
Lightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And Paraglider
Lightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And Paraglider
Specifications
Brand Name :
Furious Motor
Model Number :
23850
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$2735
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton witn protection (EPE)
Model :
238-50
Dimension :
238mm * 50mm
KV :
35
Max. Thrust :
98KG
Max. Torque :
80N.m
Max. RPM :
2420
Suggested ESC :
24S 300A
Suggested Prop :
55 tri-blade propeller
Max. Current :
280A
Max. Voltage :
90V
Max. Power :
20KW
Li - Po :
14S - 24S
Hall Sensor :
Optional
Weight :
6.3KG
Application :
Paramotor and paraglider
Description

Intoroduction

The 23850 Propulsion System is designed for paramotors and paragliders, delivering exceptional power and efficiency. Featuring the 23850 BLDC motor, seamlessly paired with a 24S 300A ESC and a 55-inch propeller, it generates an impressive maximum thrust of 98kg. Built for stability and reliability, this system ensures smooth, controlled flight while offering customization options to meet different performance needs. Whether for recreational or professional use, the 23850 Propulsion System provides the thrust and efficiency to take your airborne experience to new heights.

Tech Specs

System

Max. Thrsut 98 kg / rotor
Takeoff Weight 39 kg - 49 kg / rotor
Suggested ESC 24 S 300 A
Suggested Propeller 55 inch 3-blade propeller
Suggested Battery 12 S - 24 S
Working Temperature -20 °C ~ 50 °C
Total Weight 6.5 kg
Application Paramotor and paraglider

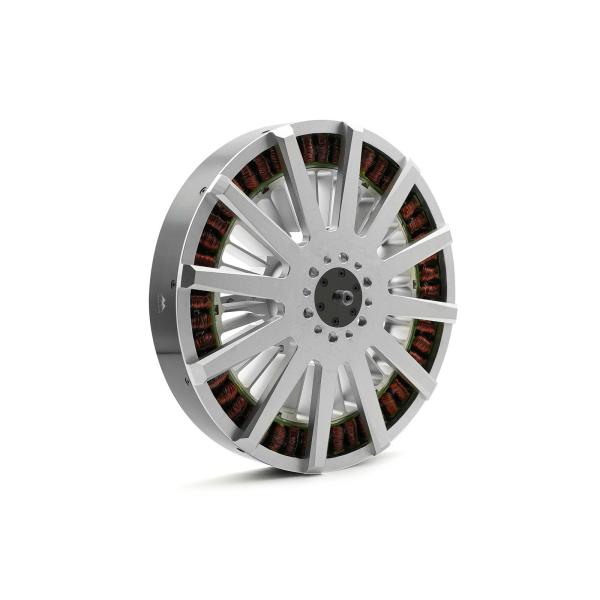

Motor

Model 238-50
KV 35
Max. Thrsut 98 kg
Max. Torque 80 N·m
Max. RPM 2420
Dimension 238 mm * 50 mm
Weight 4.5 kg

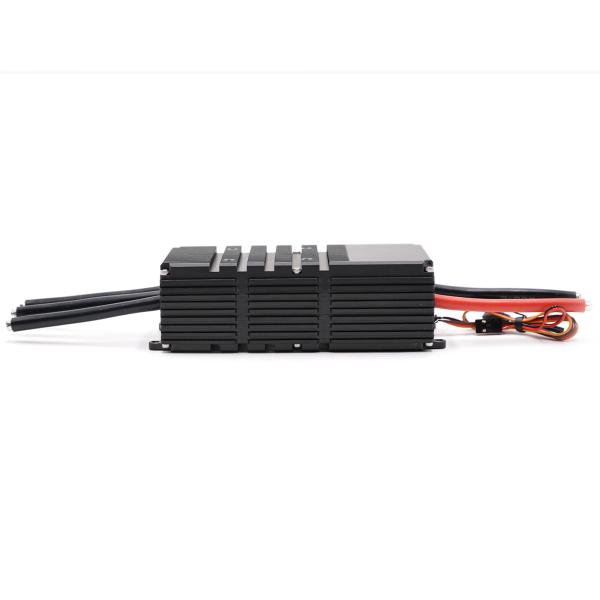

ESC

Model 24 S 300 A
Suggested Battery 12 S ~ 24 S (Li-Po)
PMW Signal 3.3 V / 5 V
Pulse Width 900 us ~ 2000 us
Signal Frequency 50 Hz ~ 400 Hz
Max. Input Voltage DC 50 V ~ 100 V
Max. Input Current 240 A
Weight 595 g
Dimension 140.5 mm * 66.6 mm * 47.1 mm

Propeller

Model 55 inch 3-blade
Diameter 55 inch
Material Carbon fiber
Weight 1.2 kg

Details

Lightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And ParagliderLightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And ParagliderLightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And ParagliderLightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And ParagliderLightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And ParagliderLightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And ParagliderLightweight 23850 98KG Brushless DC Motor With ESC Propeller For Paramotor And Paraglider

Lightweight 23850 98KG Brushless DC Motor With ESC And Propeller For Paramotor And Paraglider
