Specifications
Brand Name :
Furious Motor
Model Number :
19460
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$2268
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton witn protection (EPE)
Model :
19460
Dimension :
194mm * 60mm
KV :
35
Max. Thrust :
95KG
Max. Torque :
61N.m
Max. RPM :
3009
Suggested ESC :
24S 200A
Suggested Prop :
54 inch propeller
Max. Current :
265A
Max. Voltage :
92V
Max. Power :
23KW
Li - Po :
14S - 24S
Hall Sensor :
Optional
Weight :
6.16KG
Application :
Paramotor, paraglider
Description

Intoroduction

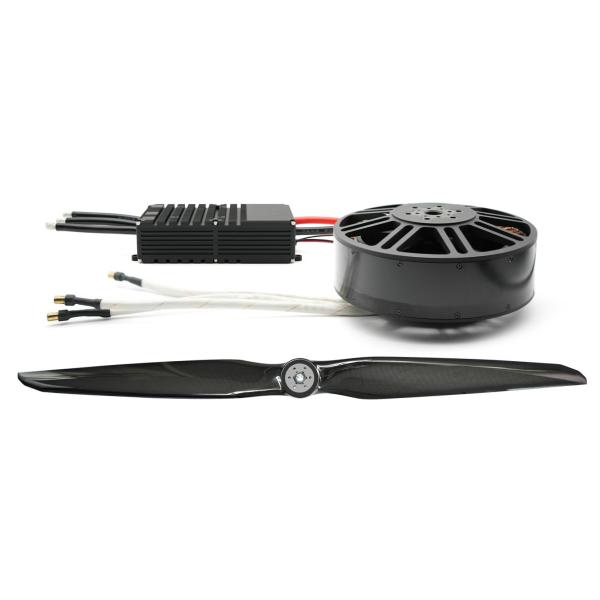

The 19460 brushless motor is built for paramotors and paragliders, offering exceptional power and efficiency. Designed for high-performance flight, it pairs seamlessly with a 54-inch propeller and a 24S 300A motor controller, delivering an impressive 95kg of thrust.

Its standout feature is its customizability, allowing pilots to fine-tune configurations for optimal performance. Whether for smooth cruising or heavy-lift applications, the 19460 provides the reliability and power needed for an outstanding flying experience.

Tech Specs

System

Max. Thrsut 95 kg / rotor
Takeoff Weight 25 kg - 45 kg / rotor
Suggested ESC 24 S 300 A
Suggested Propeller 54 inch 2-blade propeller
Suggested Battery 12 S - 24 S
Working Temperature -20 °C ~ 50 °C
Total Weight 6.16 kg
Application Paramotor, paraglider

Motor

Model 194-60
KV 35
Max. Thrsut 95 kg
Max. Torque 61 N·m
Max. Voltage 92 V
Max. Current 165 A
Max. Power 23 KW
Max. RPM 3009
Dimension 194 mm * 60 mm
Weight 4.75 kg

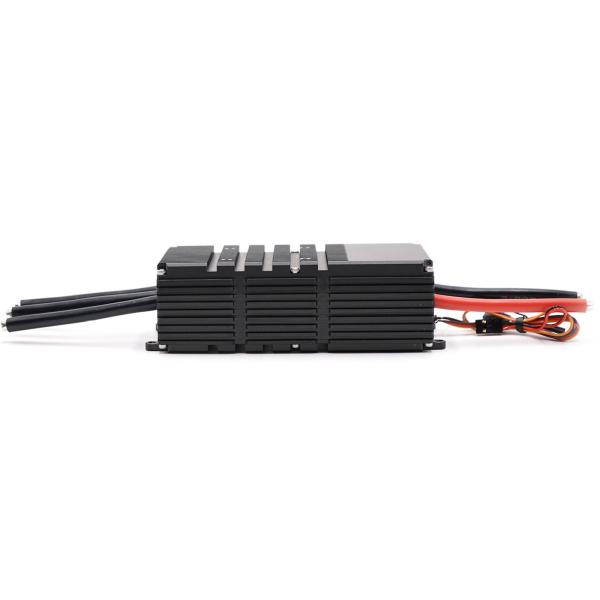

ESC

Model 24 S 300 A
Suggested Battery 12 S ~ 24 S (Li-Po)
PMW Signal 3.3 V / 5 V
Pulse Width 900 us ~ 2000 us
Signal Frequency 50 Hz ~ 400 Hz
Max. Input Voltage DC 50 V ~ 100 V
Max. Input Current 300 A
Weight 812 g
Dimension 140.5 mm * 66.6 mm * 47.1 mm

Propeller

Model 54 inch 2-blade
Diameter 54 inch
Material Carbon fiber
Weight 600 g

Details

95KG Thrust System With 19460 Motor And 24S 300A ESC And 54 Inch Propeller95KG Thrust System With 19460 Motor And 24S 300A ESC And 54 Inch Propeller95KG Thrust System With 19460 Motor And 24S 300A ESC And 54 Inch Propeller95KG Thrust System With 19460 Motor And 24S 300A ESC And 54 Inch Propeller95KG Thrust System With 19460 Motor And 24S 300A ESC And 54 Inch Propeller95KG Thrust System With 19460 Motor And 24S 300A ESC And 54 Inch Propeller95KG Thrust System With 19460 Motor And 24S 300A ESC And 54 Inch Propeller​

95KG Thrust System With 19460 Motor And 24S 300A ESC And 54 Inch Propeller For Paramotor And Paraglider
