15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights
15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights
15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights
15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights
15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights
15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights
15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights
15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights
Specifications
Brand Name :
Furious Motor
Model Number :
15470
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$1637
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton witn protection (EPE)
Model :
15470
Dimension :
154 mm * 70 mm
KV :
50
Max. Thrust :
51 kg
Max. Torque :
25 N.m
Max. RPM :
3762
Suggested ESC :
24 S 200 A
Suggested Prop :
42 inch propeller
Max. Current :
122 A
Max. Voltage :
94 V
Max. Power :
11.5 kW
Li - Po :
14 S - 24 S
Hall Sensor :
Optional
Weight :
3.4 kg
Application :
Multi rotor drone, paraglider
Description

Intoroduction

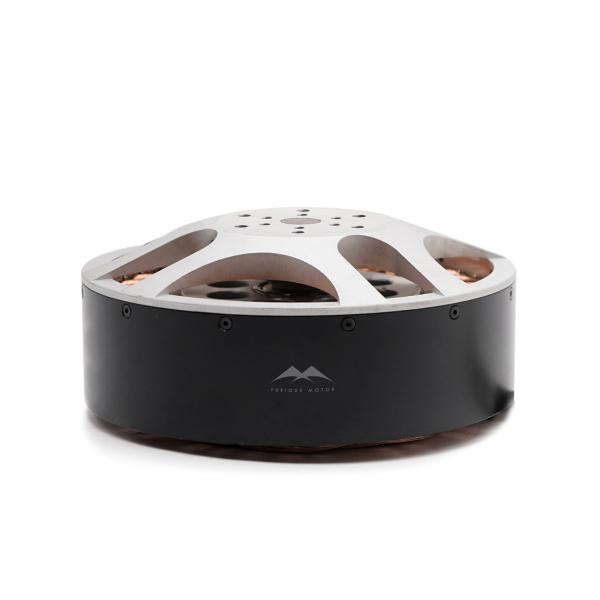

The Furious Motor 15470 brushless motor is meticulously developed to power an array of aerial systems, including large drones, UAVs, paramotors, and paragliders. Crafted for outstanding performance, this motor integrates seamlessly with a 42-inch propeller and a 24S 200A motor controller, delivering optimized power allocation and pinpoint accuracy.
With the ability to produce up to 51kg of thrust, it excels in heavy-duty scenarios, blending robust strength with improved stability to offer a dependable choice for the most challenging aerial missions.

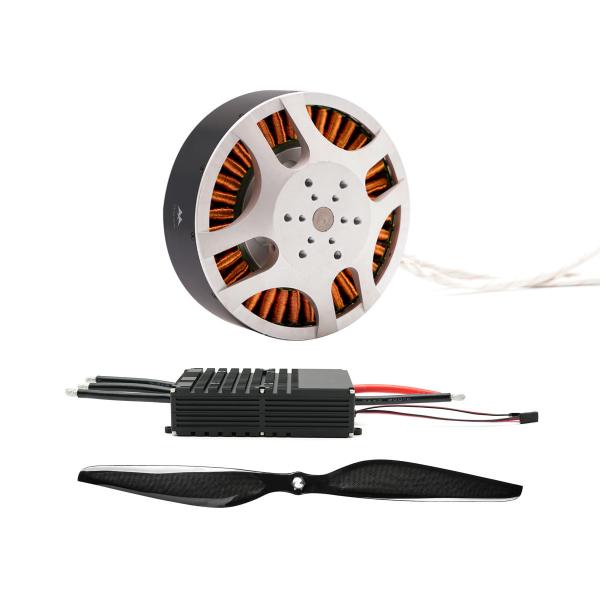

Tech Specs

System

Max. Thrsut 51 kg / rotor
Takeoff Weight 20 kg - 25 kg / rotor
Suggested ESC 24 S 200 A
Suggested Propeller 42 inch 2-blade propeller
Suggested Battery 12 S - 24 S
Working Temperature -20 °C ~ 50 °C
Total Weight 4.3 kg
Application Multi rotor drone, heavy lift drone, paramotor

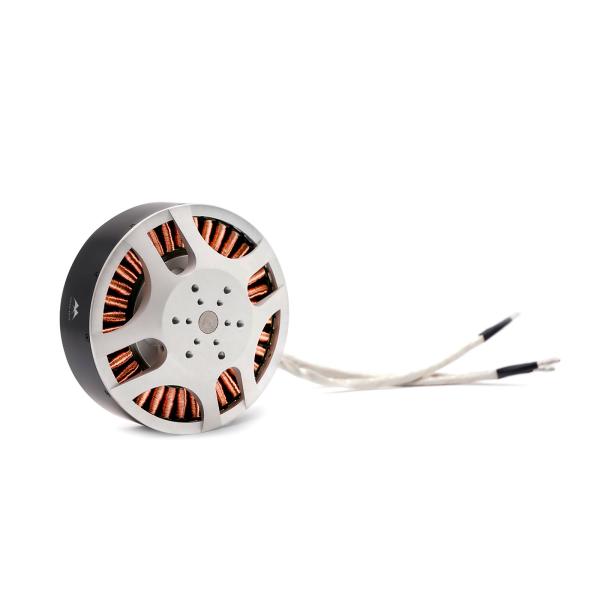

Motor

Model 154-70
KV 50
Max. Thrsut 51 kg
Max. Torque 25 N·m
Max. RPM 3762
Dimension 154 mm * 70 mm
Weight 3.4 kg

ESC

Model 24 S 200 A
Suggested Battery 12 S ~ 24 S (Li-Po)
PMW Signal 3.3 V / 5 V
Pulse Width 900 us ~ 2000 us
Signal Frequency 50 Hz ~ 400 Hz
Max. Input Voltage DC 50 V ~ 100 V
Max. Input Current 240 A
Weight 595 g
Dimension 140mm * 66mm * 34mm

Propeller

Model 42 inch 2-blade
Diameter 42 inch
Material Carbon fiber
Weight 300 g

Details

15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights

15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights

15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights

15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights

15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights

15470 Paramotor Motor With High Thrust For Long Endurance Paragliding Flights

Durable 15470 Paramotor Motor With High Thrsut For Long-Endurance Paragliding Flights
